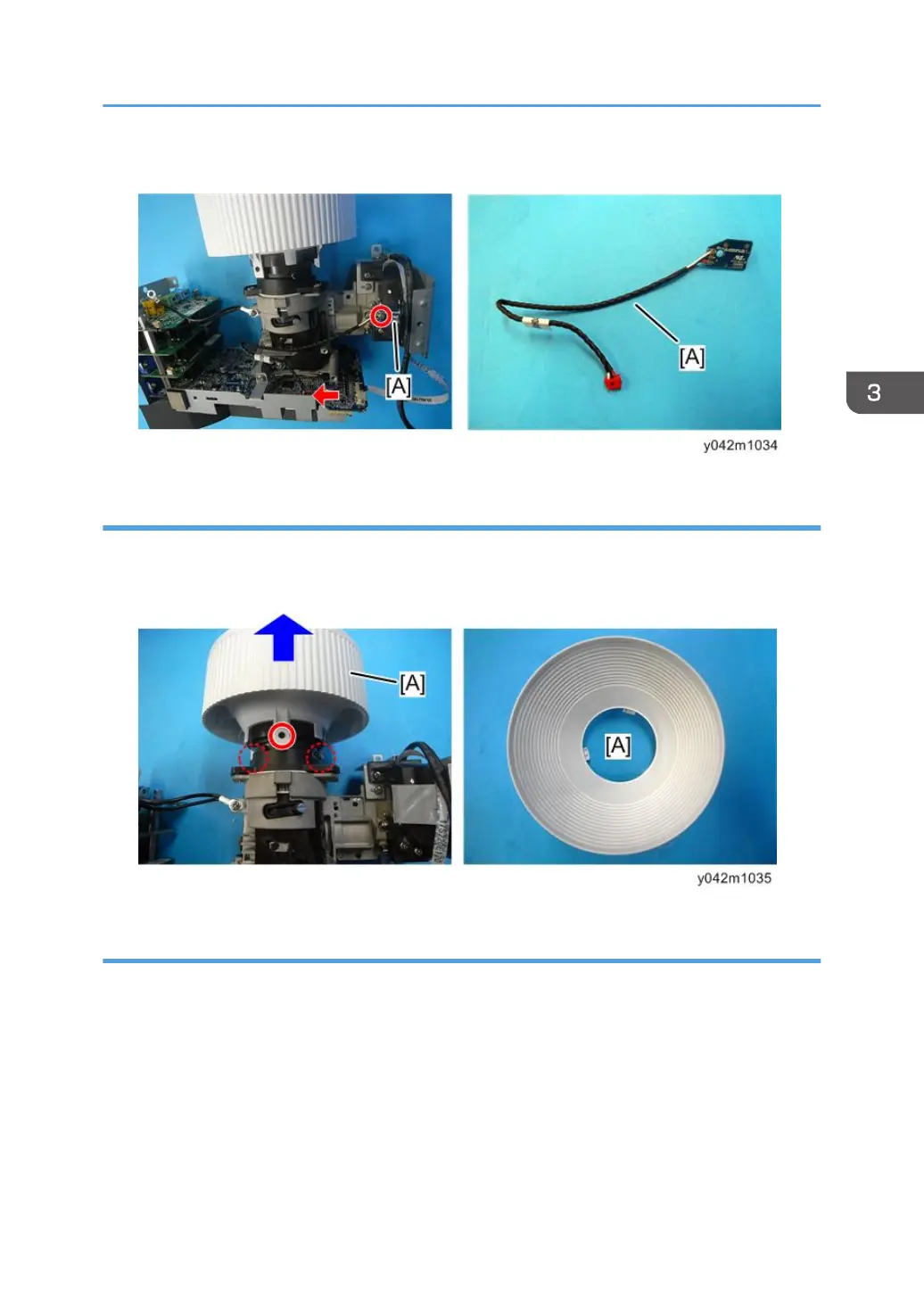

2. Remove the 1 screw and 1 connector to remove the photo sensor board [A].
Focus ring
1. Optical system unit (page 37 "Optical system unit")
2. Remove the 1 screw and unfasten the 2 tenons, then push out the focus ring [A].
Thermistor
1. Optical system unit (page 37 "Optical system unit")
Part Replacement
39
