Item
Male Connector on
Main Board
Key Feature Figure
E LVPS B Black wire tube (5 pin)
F Blower fan
Red/White/Black wire, with blue
wire tube (3 pin)
Optical system unit

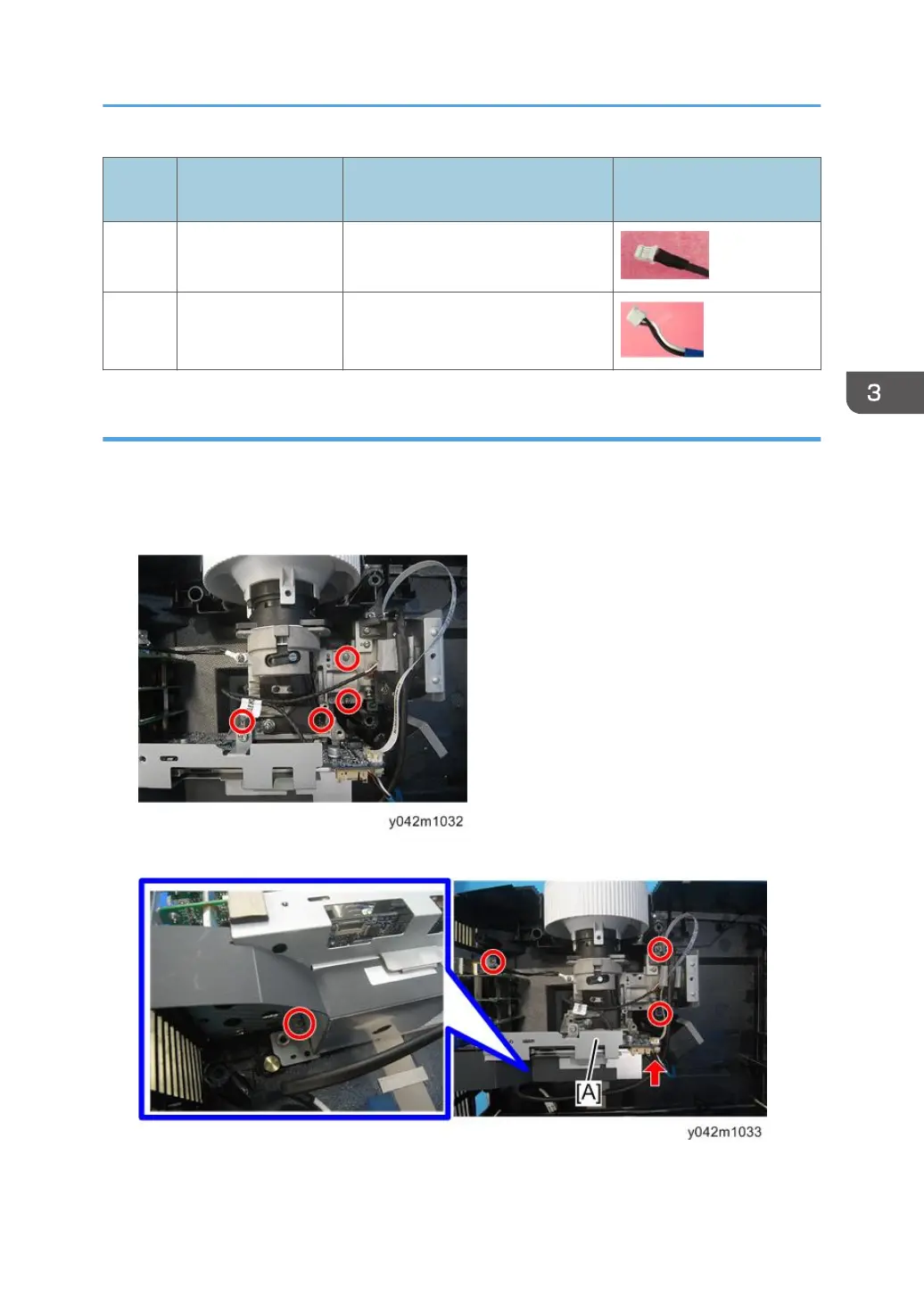

1. Speaker (page 30 "Speaker")
2. LVPS (page 33 "LVPS")
3. Remove the 4 screws.
4. Remove the 4 screws and 1 connector to remove the optical system unit [A].
Part Replacement
37
