Riedel Bolero - Page 40

40
Bolero User Manual A20

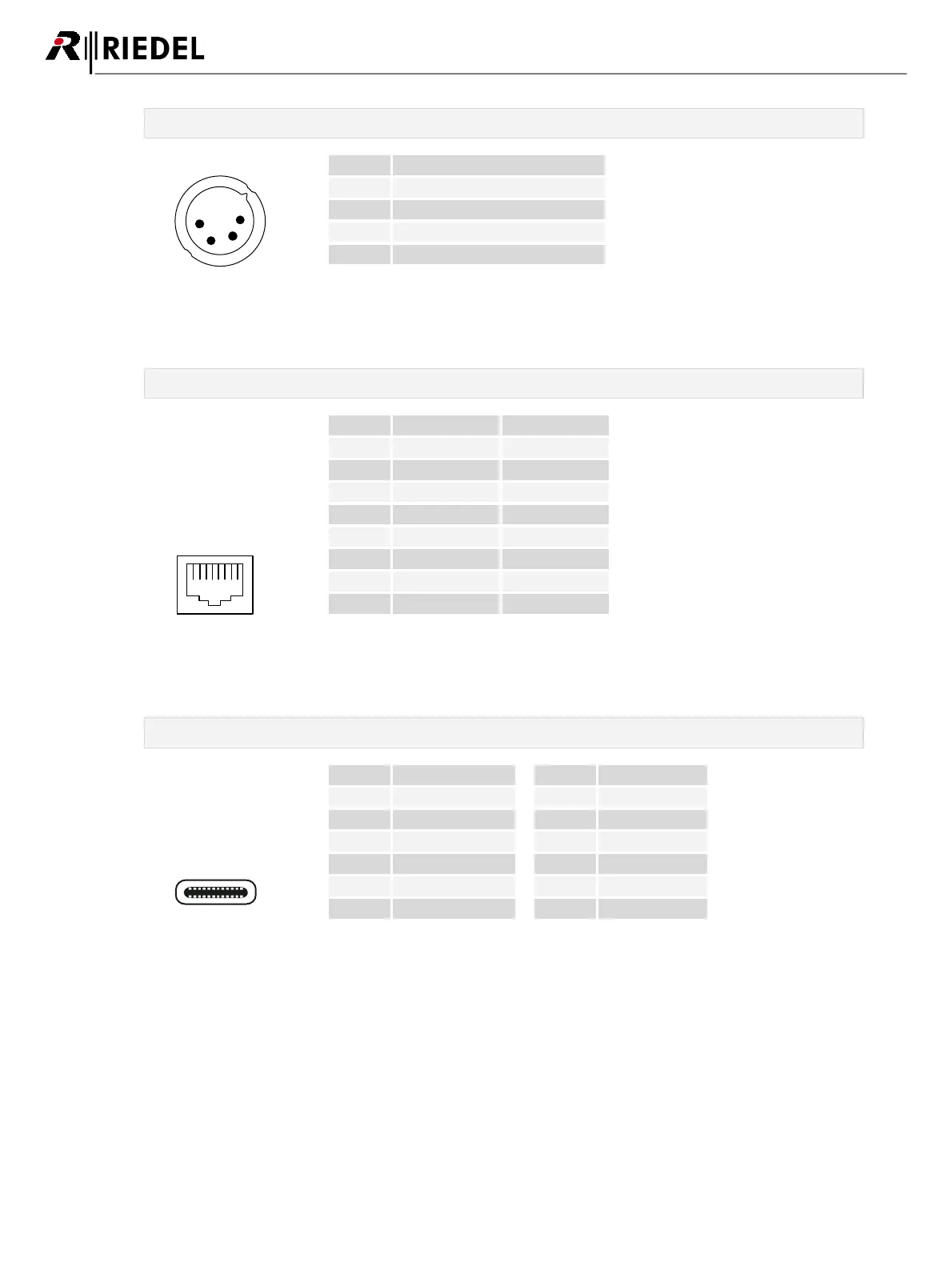

XLR-4 (male)
1
2
3
4
Pin
Description
1
-PWR
2
Chassis
3
Data
4
+PWR (10...57 VDC / 3 A)
Figure 35: XLR-4 male
The length of the DC power cable should not exceed 1.5 meters.
RJ45
1 8
Pin
AES67/Config
LINK 1+2
1
D1+ / PoE+ (p)
D1+
2
D1- / PoE+ (p)
D1-
3
D2+ / PoE+ (n)
D2+
4
D3+ / PoE+ (p)
D3+
5
D3- / PoE+ (p)
D3-
6
D2- / PoE+ (n)
D2-
7
D4+ / PoE+ (n)
D4+
8
D4- / PoE+ (n)
D4-
Figure 36: RJ45
1Gbit Ethernet connection is necessary to operate the Bolero net.
USB Type-C
A1
A12
B12 B1
Pin
Description
Pin
Description
1
GND
7
Dn1
2
SSTXp1
8
SBU1
3
SSTXn1
9
VBUS
4
VBUS
10
SSRXn2
5
CC1
11
SSRXp2
6
Dp1
12
GND
Figure 37: USB Type-C
