Technical description of the burner

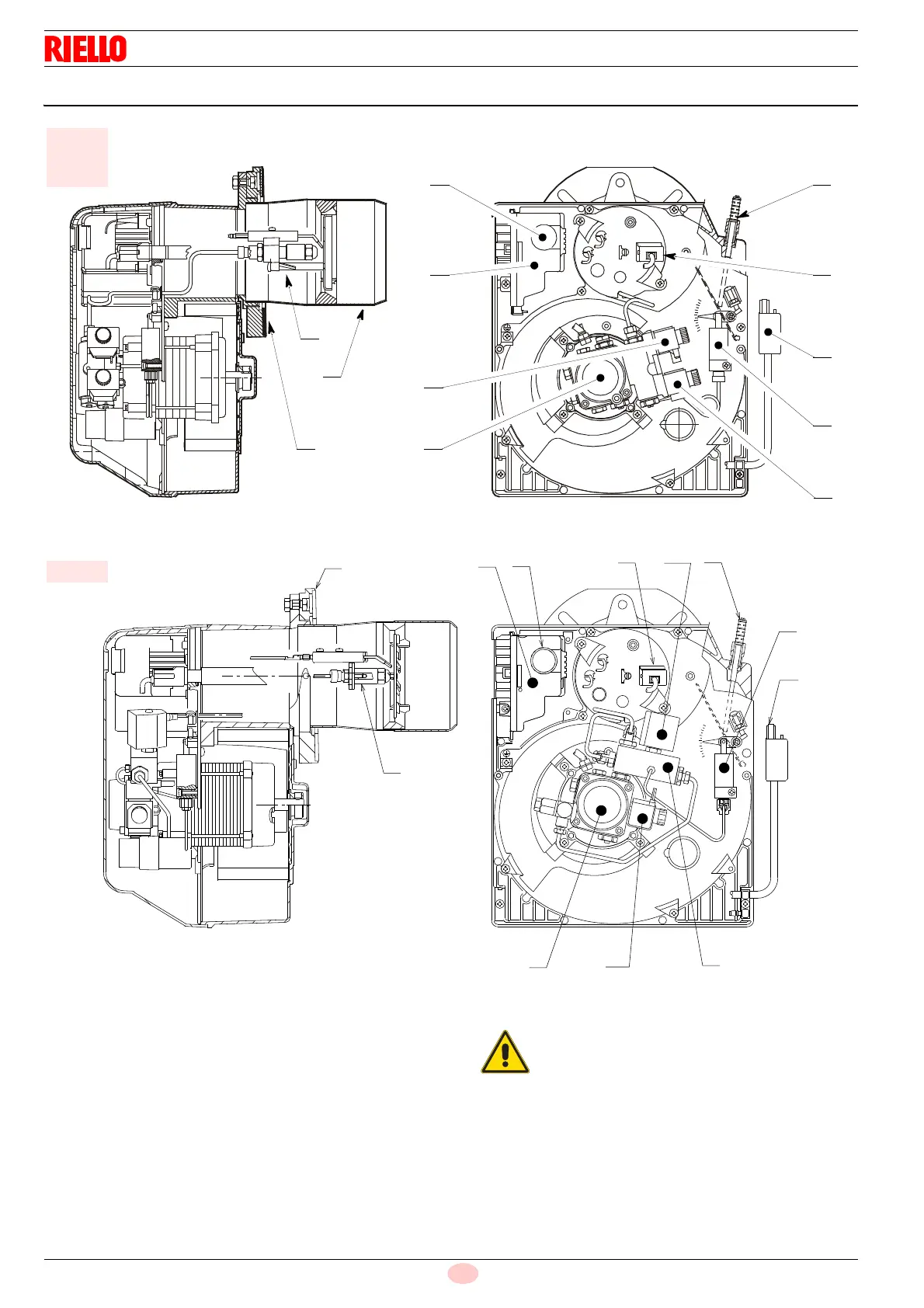

5.5 Burner description
1Oil pump
2 Valve body unit
3 Control box
4 Reset button with lockout lamp
5 Flange with insulating gasket
6 2nd stage air damper adjustment assembly
7 Nozzle-holder assembly
8Flame sensor
9 Hydraulic jack
10 4 pole socket
11 2nd stage valve
12 1st stage valve
13 Combustion head
Fig. 2
5
7
4
3
2
1
12
11
6
8
9
10
D7822
D4682
1
13
6
8
5
10
12
11
9
4
3
380T1
394T1
397T1
398T1
7
WARNING
To meet the required standards, the burner must
be protected by a pane or by the boiler door.
This protection must be removed only with a tool.
