Installation
6.11 Hydraulic systems
6.11.1 Combustion supply
The burner is designed to allow entry of the flexible oil lines on
either side of the burner.
Depending on whether the pipe outlet is to the right or left of the
burner, it will be necessary to invert both the fixing plate 1) and
the closing bracket 2) (Fig. 17).
Explosion danger due to fuel leaks in the pres-
ence of a flammable source.
Precautions: avoid knocking, attrition, sparks and
heat.
Make sure the fuel interception tap is closed be-
fore performing any operation on the burner.
WARNING
The fuel supply line must be installed by qualified
personnel, in compliance with current standards
and laws.

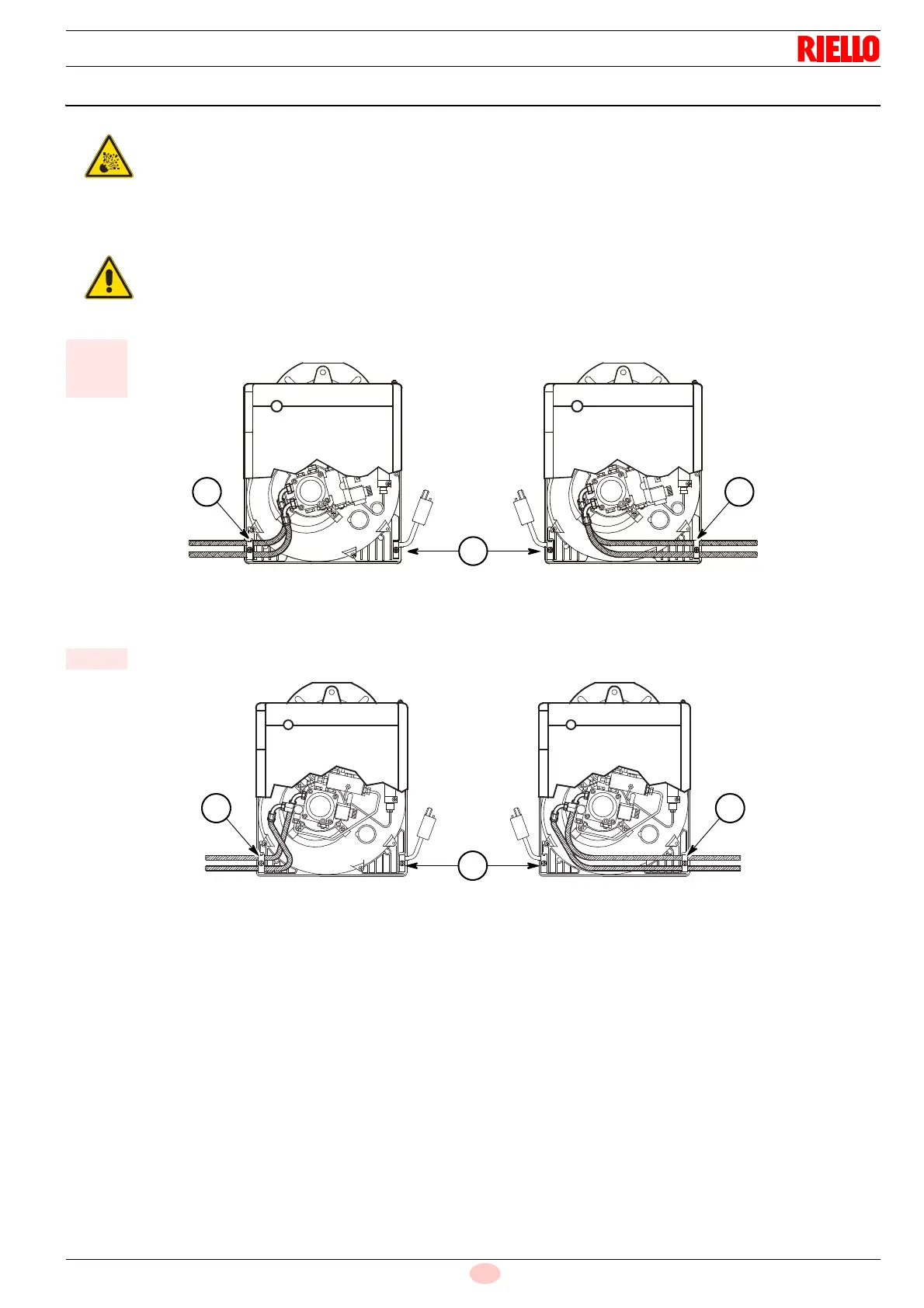

Fig. 17
2
1 1
D5345
380T1
394T1
397T1
398T1
2
1 1
D5392
