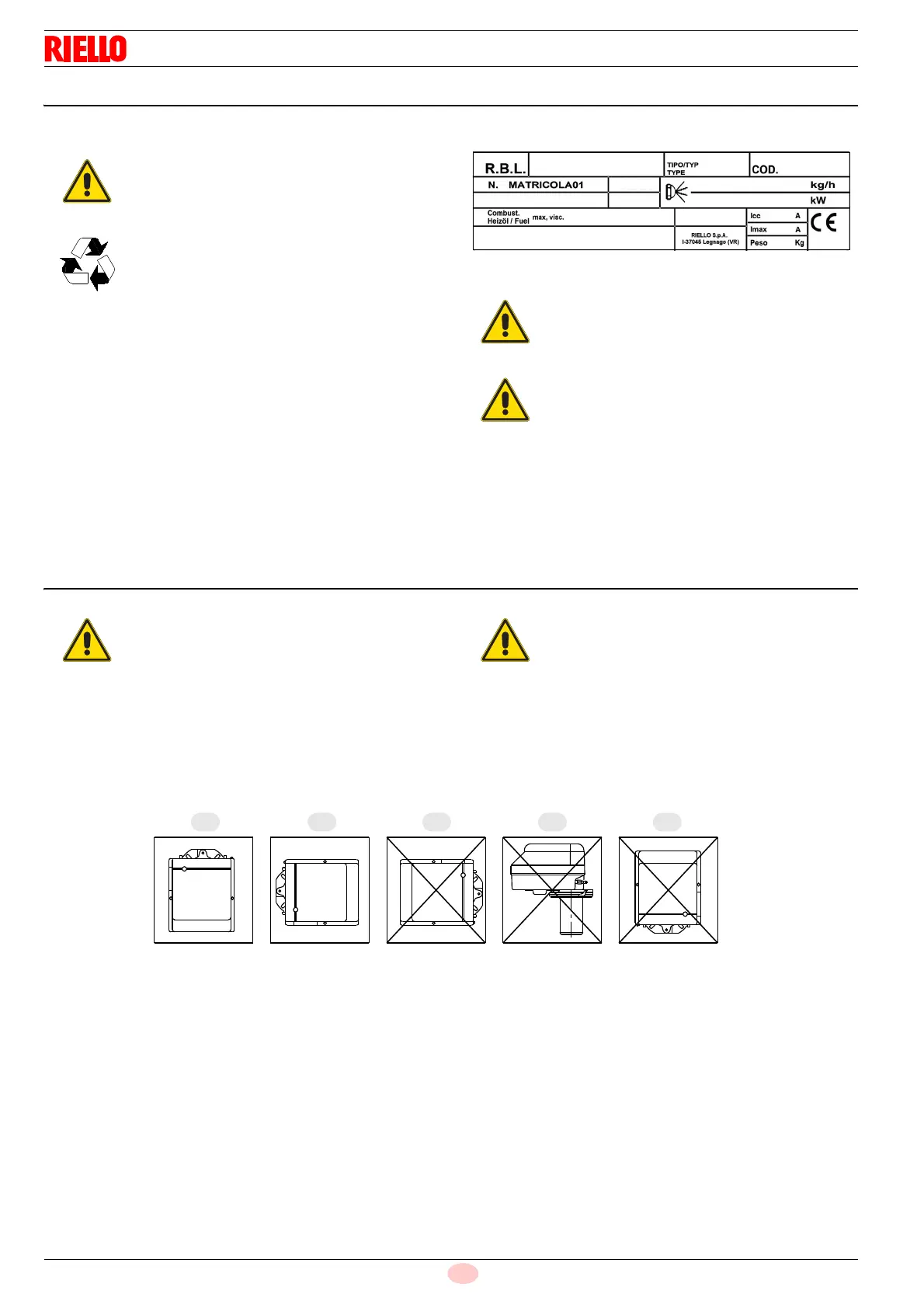

Riello RG2D - Preliminary Checks; Operating Position

20135920
14
GB
Installation
6.4 Preliminary checks
Checking the consignment
Checking the characteristics of the burner
Check the identification label (Fig. 5) of the burner, showing:
 the model and the code burner (A), the type (B);
 Year of manufacture, in cryptographic form (C);
 the serial number (D);
 the electrical supply data E);
 the types of light oil used and the relative supply pressures
(F);
 the data of the burner's minimum and maximum output pos-
sibilities G)(see Firing rate)
 Burner weight (H).
6.5 Operating position
CAUTION
After removing all the packaging, check the integ-
rity of the contents. In the event of doubt, do not
use the burner; contact the supplier.
The packaging elements (wooden cage or card-
board box, nails, clips, plastic bags, etc.) must not
be abandoned as they are potential sources of
danger and pollution; they should be collected and
disposed of in the appropriate places.
WARNING
The output of the burner must be within the
boiler's firing rate.
WARNING
A burner label that has been tampered with, re-
moved or is missing, along with anything else that
prevents the definite identification of the burner
makes any installation or maintenance work diffi-
cult.
4÷6
A
AB
DG
E
H
F
C
E
Fig. 5
S9644
WARNING
The burner is designed to work only in the posi-
tions, 1 and 2.
Installation 1 is preferable, as it is the only one that
allows the maintenance operations as described
in this manual.
The installations 2 allows it to operate but not with
maintenance with hooking to the boiler.
Any other position could compromise the correct
operation of the appliance.
WARNING
Any other positioning could compromise the cor-
rect operation of the appliance.
Installations 3, 4 and 5 are forbidden for safety
reasons.
Fig. 6
D7088
1 2 3 4 5
