27

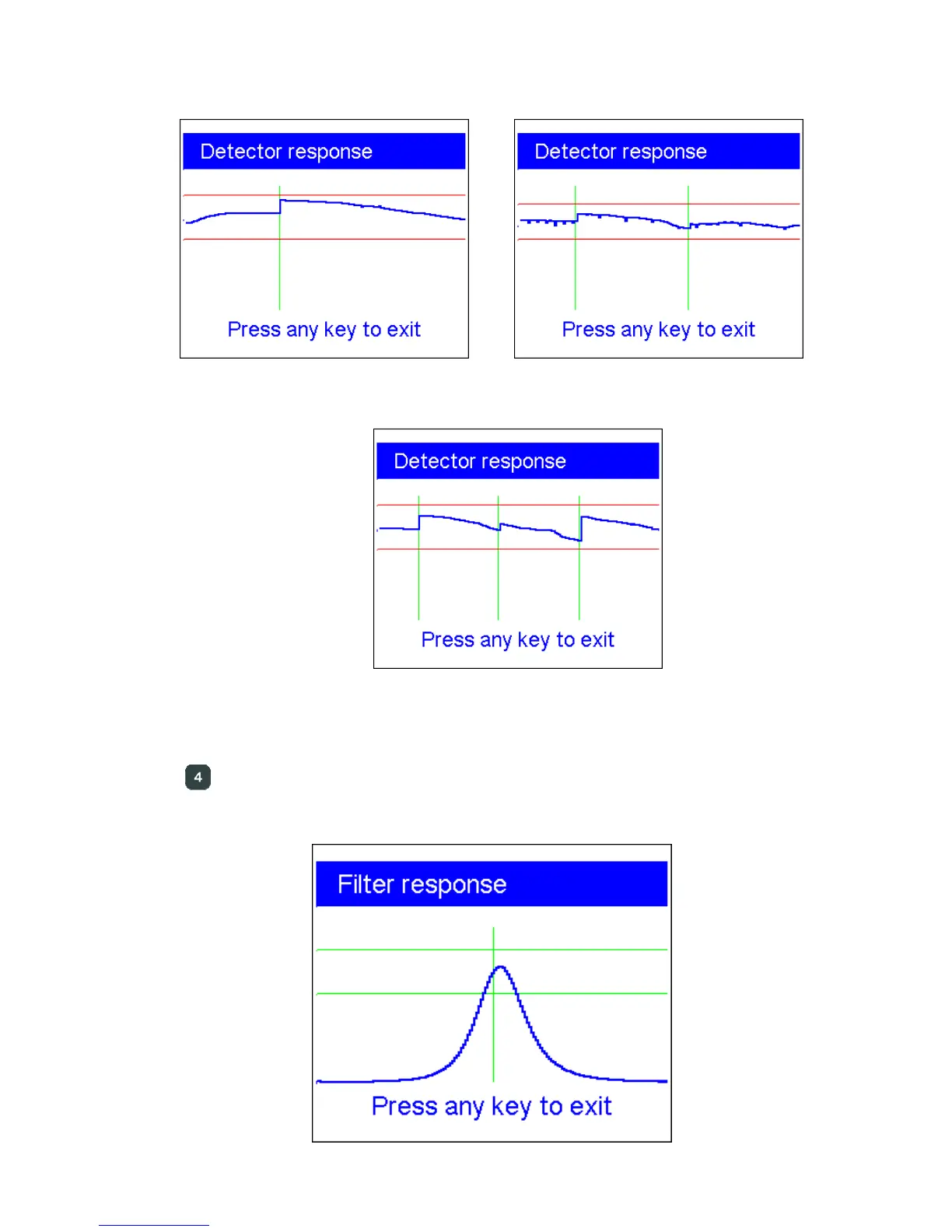

AA-600: AA-1000:
AA-1400:
The voltage curve should stay between horizontal lines. The vertical lines are the
bounds of analyzer’s sub-bands.
– band-pass filter frequency response graph. With no load at the antenna
connector, the display should look like shown on the picture:
4
