1. Enter the R,X graph mode and select a reasonably large scanning range. Perform
a scan.

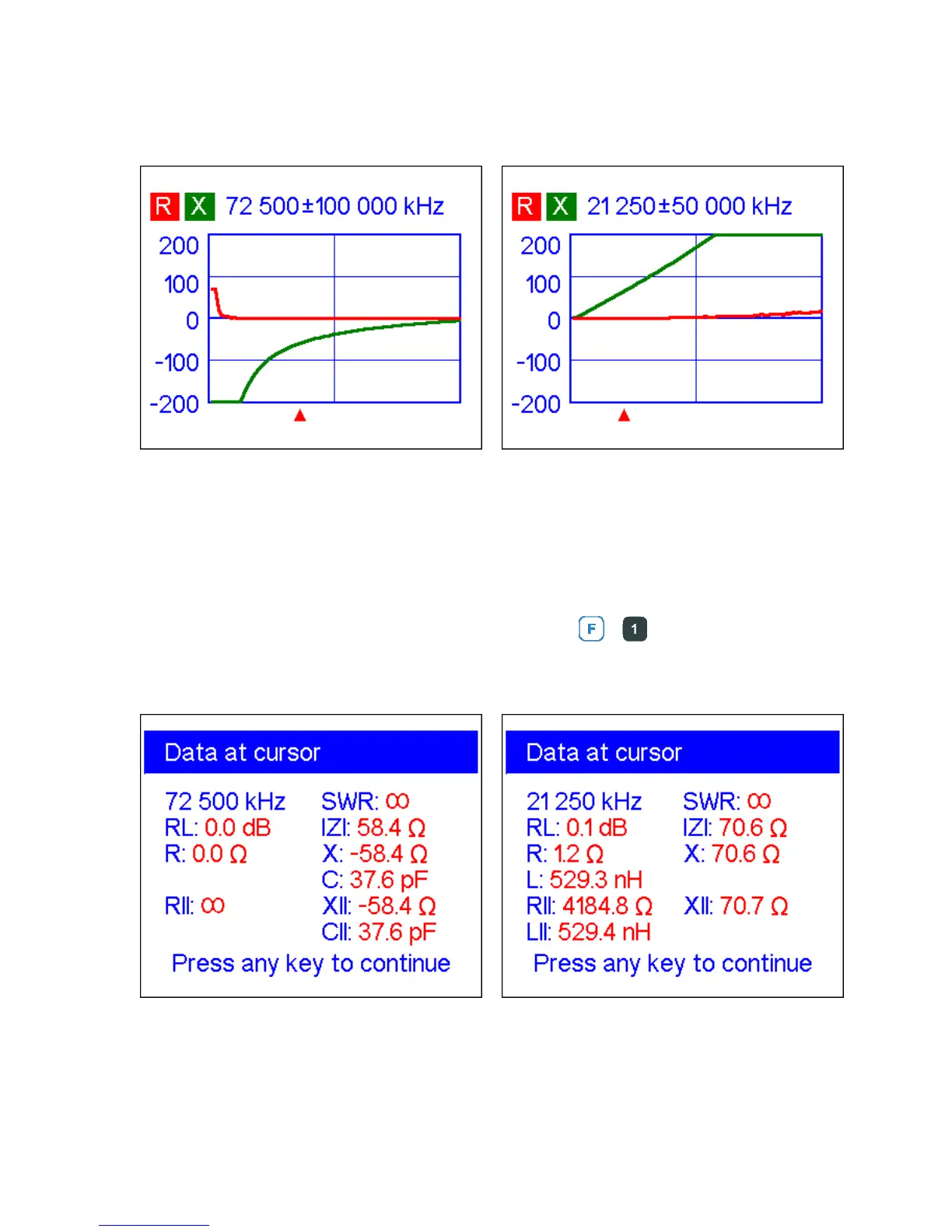

Example 1: Example 2:
Unknown capacitor Unknown inductor
2. By using left and right arrow keys, scroll to the frequency where X is -25…-100
Ohm for capacitors or 25…100 Ohm for inductors. Change the scanning range
and perform additional scans, if needed.
3. Switch to the Data at cursor mode by pressing
+
and read the value of
capacitance or inductance.
Example 1: Example 2:
Unknown capacitor Unknown inductor
