Example 5: Output a Noise Waveform
How to generate a Noise waveform with 30mVPP Amplitude and 10mVDC Offset.
The operation steps:
1. Set the Amplitude.
(1) Press Ampl/ HiLev Ampl which will display in reverse color.
(2) Enter “30” from the keypad and choose the unit “mvpp” to set the Amplitude as
30mVPP.
2. Set the Offset.
(1) Press Offset/ LoLev Offset which will display in reverse color.
(2) Enter “10” from the keypad and choose the unit “mVDC” to set the Offset as
10mVDC.

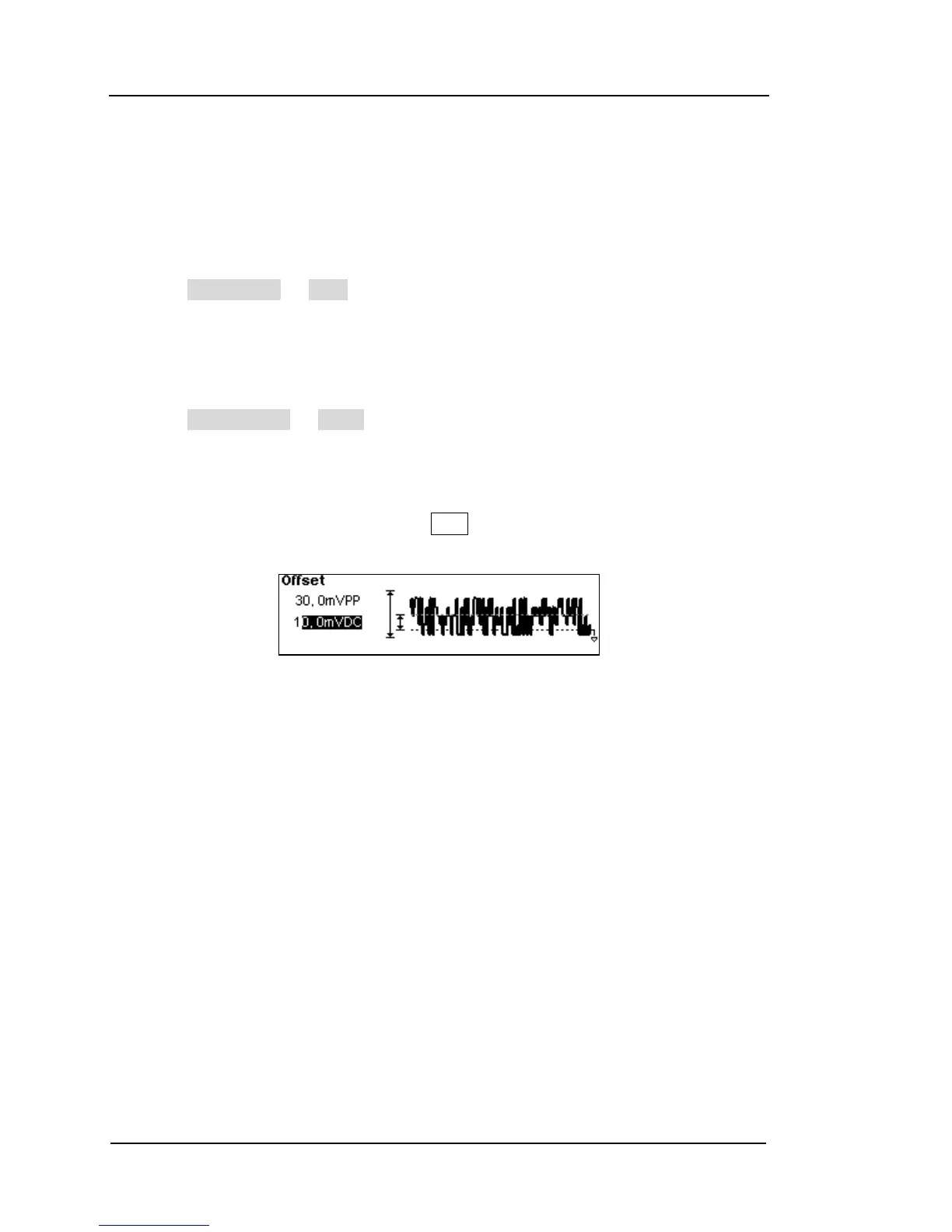

After finishing the above settings, press View, the generated waveform is shown in
Figure 3-5.
Figure 3-5
Noise Waveform Output
