User’s Guide for DG1022
To Edit Arbitrary Waveform
The Generator allows users to edit Arbitrary Waveforms, which can create any new
waveform by initializing points. The operation steps are as follows:

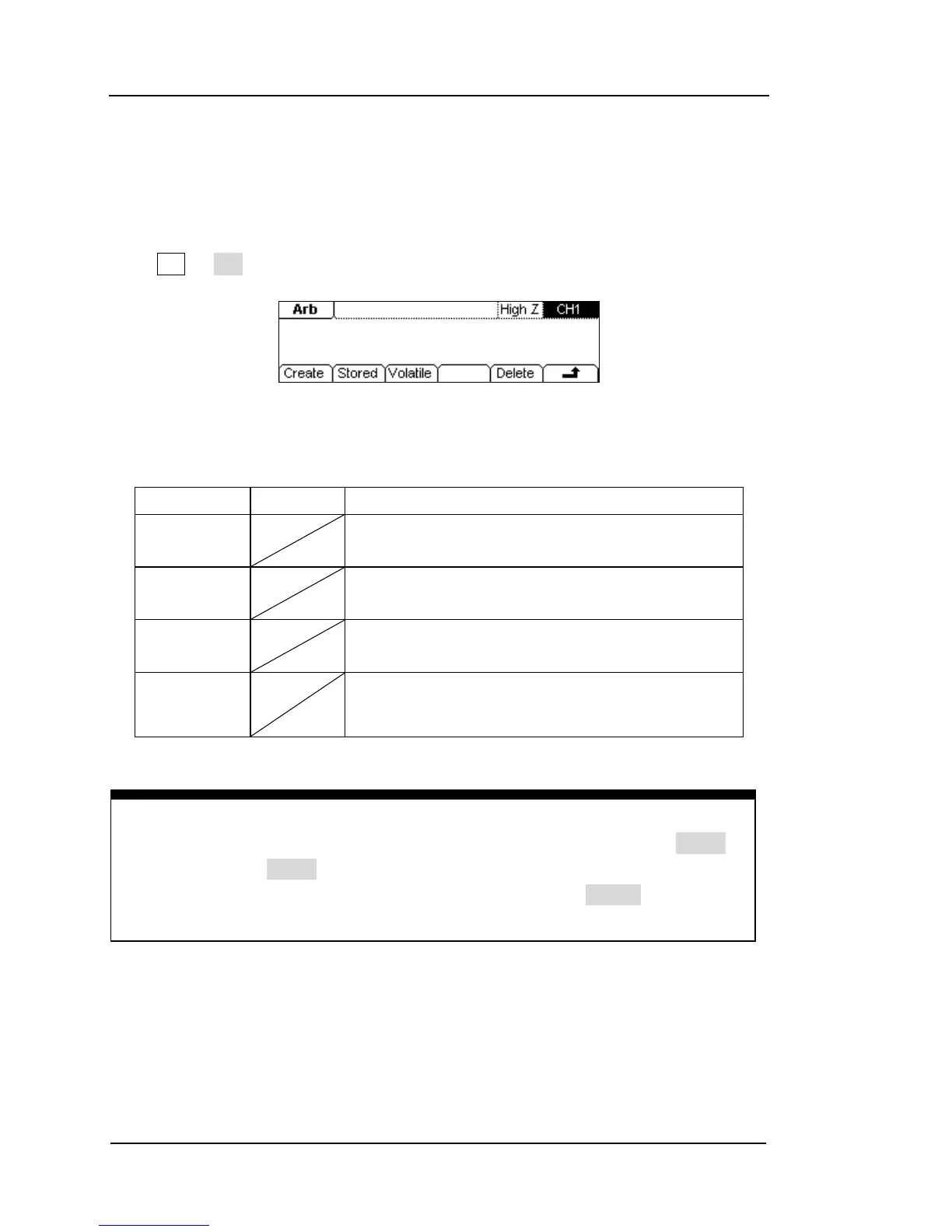

Press Arb Edit, enter the interface shown below.
Figure 2-25 Operation Menu
Table 2-10 Waveform Edition Operation Menu
Instructions
When there is no waveform stored in the Non-Volatile Memory, the Stored
Menu and the Delete Menu will hide.
When there is no waveform in the Volatile Memory, the Volatile menu will
hide.
Create a new waveform, and erase the waveform
in the Volatile memory.
Edit the waveform stored in the non-Volatile
memory
Edit the waveform stored in the Volatile memory
Delete one of the Arbitrary Waveforms stored in
the Non-volatile memory. But The five Built-in
Waveforms can not be deleted.
