To Select the Stored Waveform
Press Arb  Load  Stored, and enter the following interface. Select the desired
waveform document which will be displayed in inverse color and press Recall to recall
it from the memory.

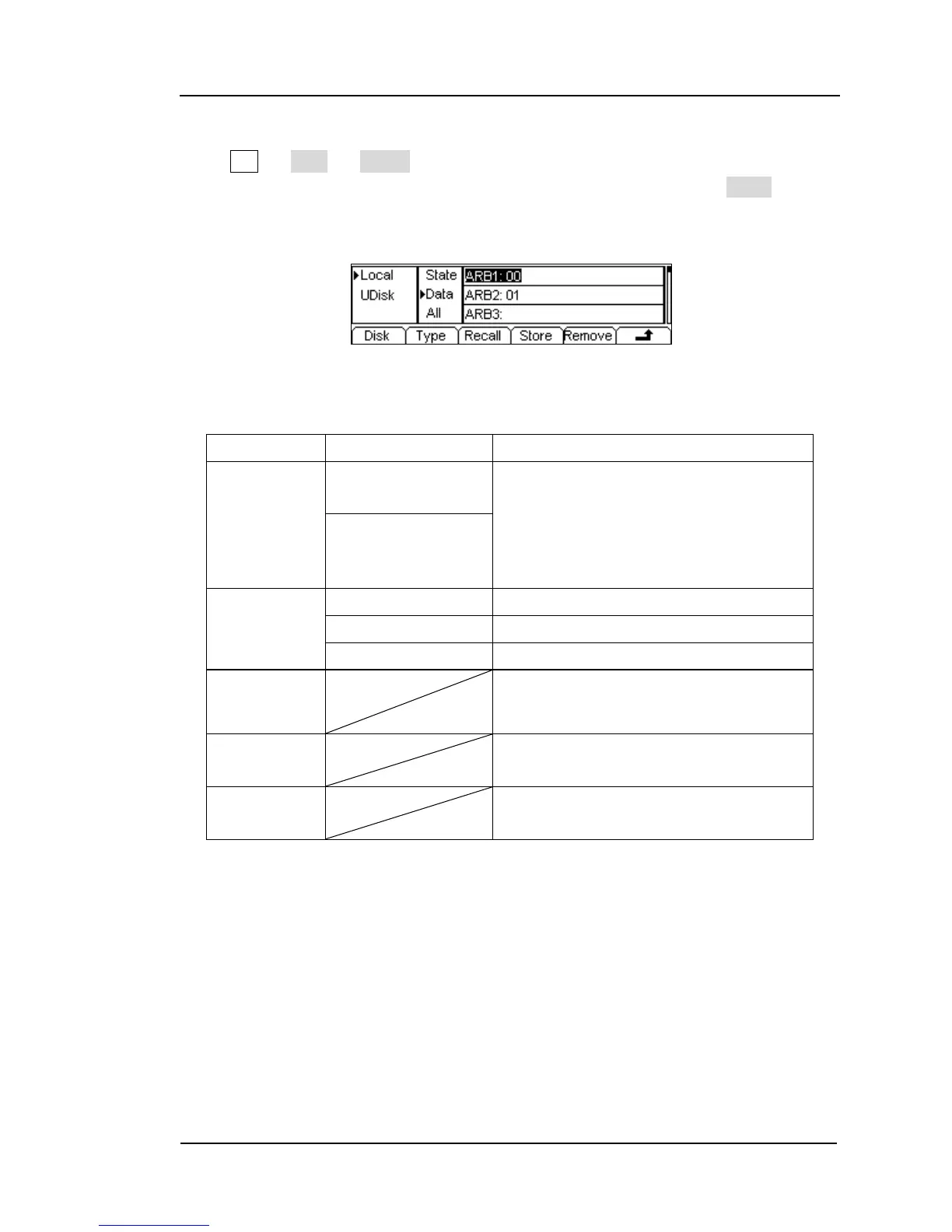

Figure 2-24 Operation Menu
Table 2-9 The Stored Arbitrary Waveform Menu
Menu
Settings
Explanation
Disk
Local
Choose display route for the system
information
U Disk
(When U Disk is
connected )
Type
State
Setting of the Generator
Data
Arbitrary waveform file
All
All types of documentation
Recall
Recall the waveform or Setting
information in the specific position in
the memory.
Store
Save the waveform to the appointed
place
Remove
Remove any file that has been stored in
the memory
