User’s Guide for DG1022
2-7
To Set Square Waveform
Press the Square button, in the Normal Mode, the operation menu will appear at the
bottom of the screen. Set the Square parameters by using the operation menu.
The parameters for Square waveforms are: Frequency/ Period, Amplitude/ High Level,
Offset/ Low Level, Duty Cycle and Phase . See Figure 2-7. In the operation menu,
select DtyCyc, and the corresponding parameter will be displayed in inverse color for
which users can make a change.

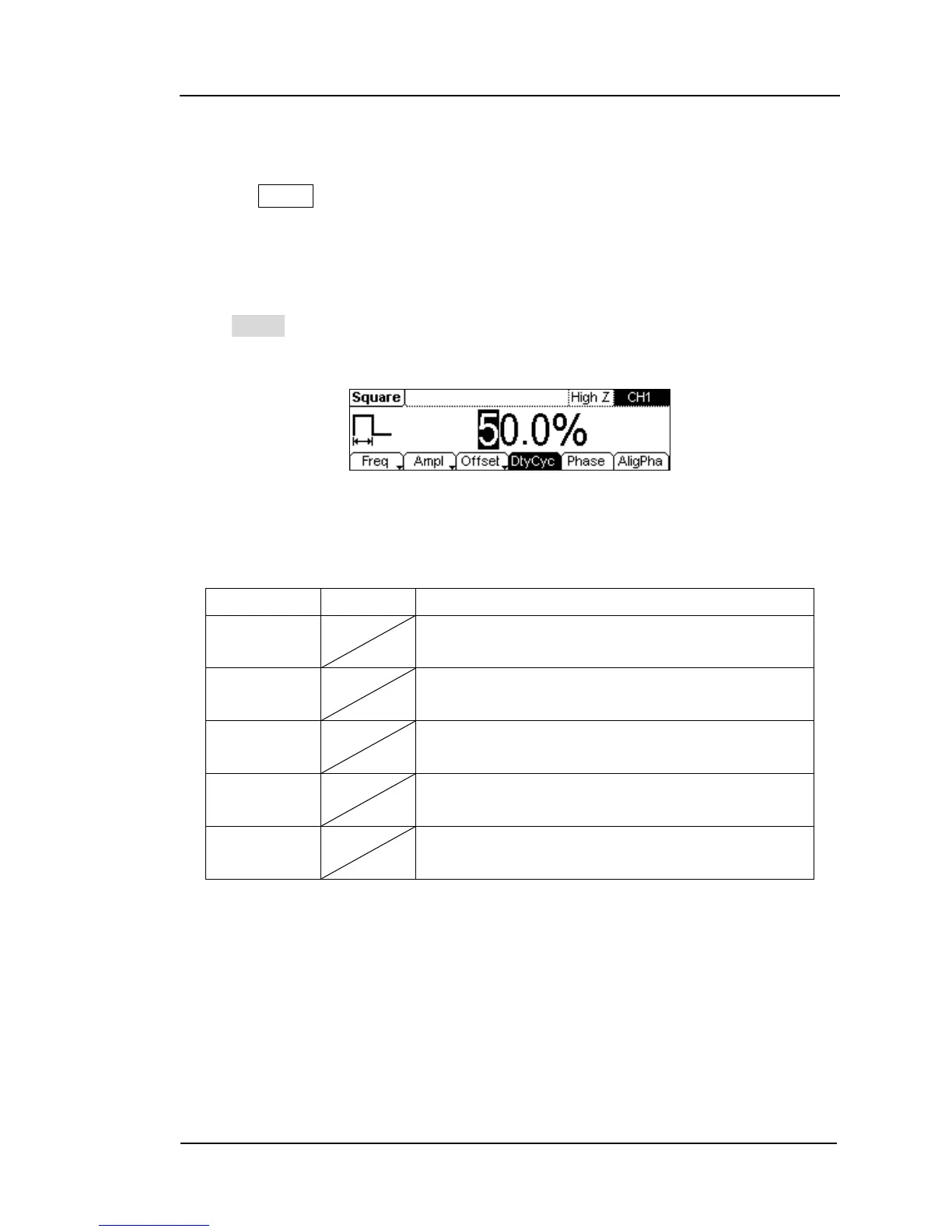

Figure 2-7
Square Signal Parameter Setting Interface
Table 2-2 Square Signal Operation Menu
Menu
Settings
Explanation
Frequency/
Period
Setting the signal’s frequency or period; the
current parameter will switch at a second press.
Amplitude/
High Level
Setting the signal’s Amplitude or High Level; the
current parameter will switch at a second press.
Offset/Low
Level
Setting the signal’s Offset or Low Level; the
current parameter will switch at a second press
Duty Cycle
Setting the Duty Cycle for Square Waveform
Phase
Setting the initial phase of the signal
