User’s Guide for DG1022
2-23

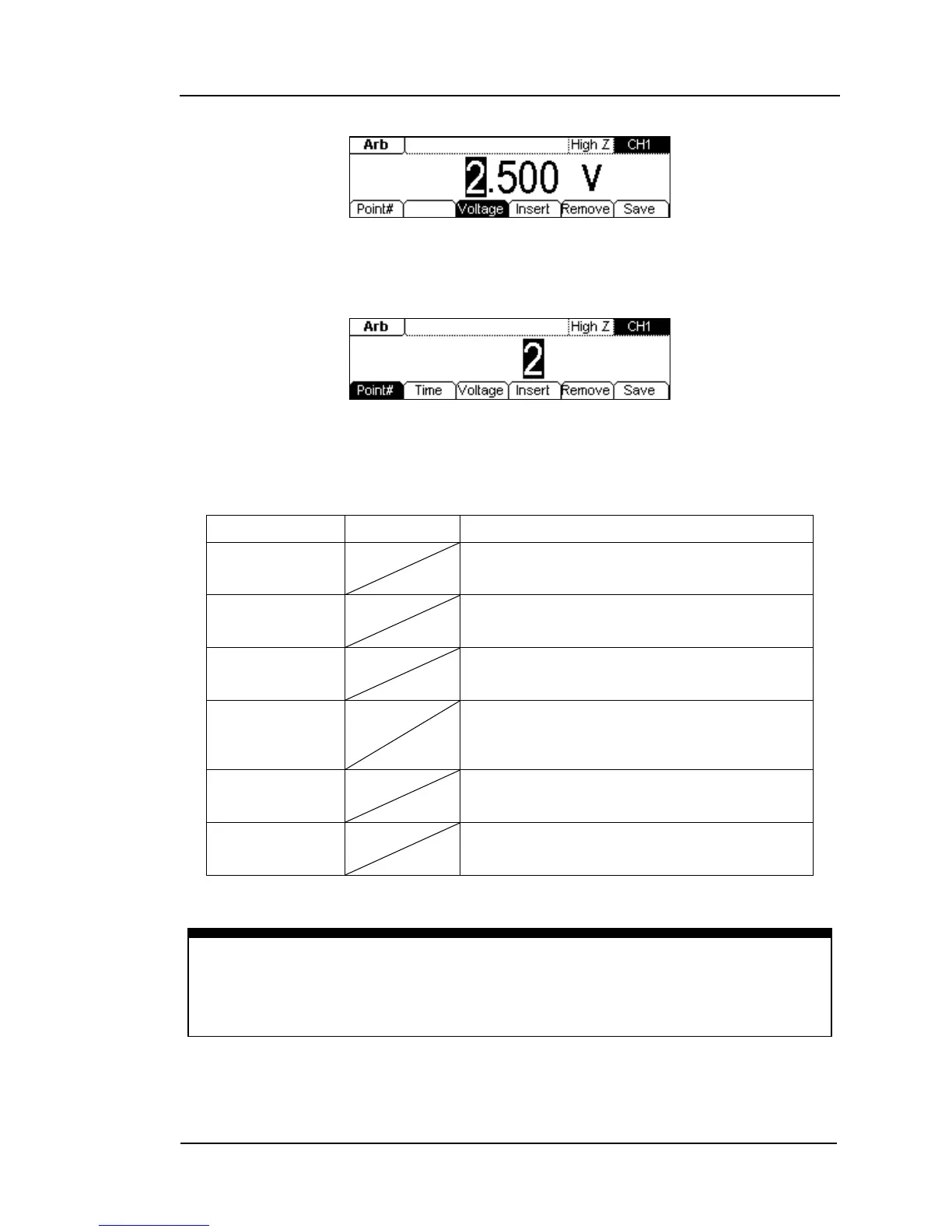

Figure 2-29
To Set the voltage
Figure 2-30
To Edit the Second Point
Table 2-12 Waveform Parameter Edition Menu
Menu
Settings
Explanation
Point#
Select the point to be edited
Time
Set time for the Selected point
Voltage
Set Voltage for the Selected point
Insert
Insert a new point between the defined
points. Use the “Time” and “Voltage” to
define the new point.
Remove
Remove the current point
Save
Save the created waveform to the
non-Volatile Memory.
Instructions
The time for the last definable point should be less than the cycle period in the
waveform.
