User’s Guide for DG1022
2-18

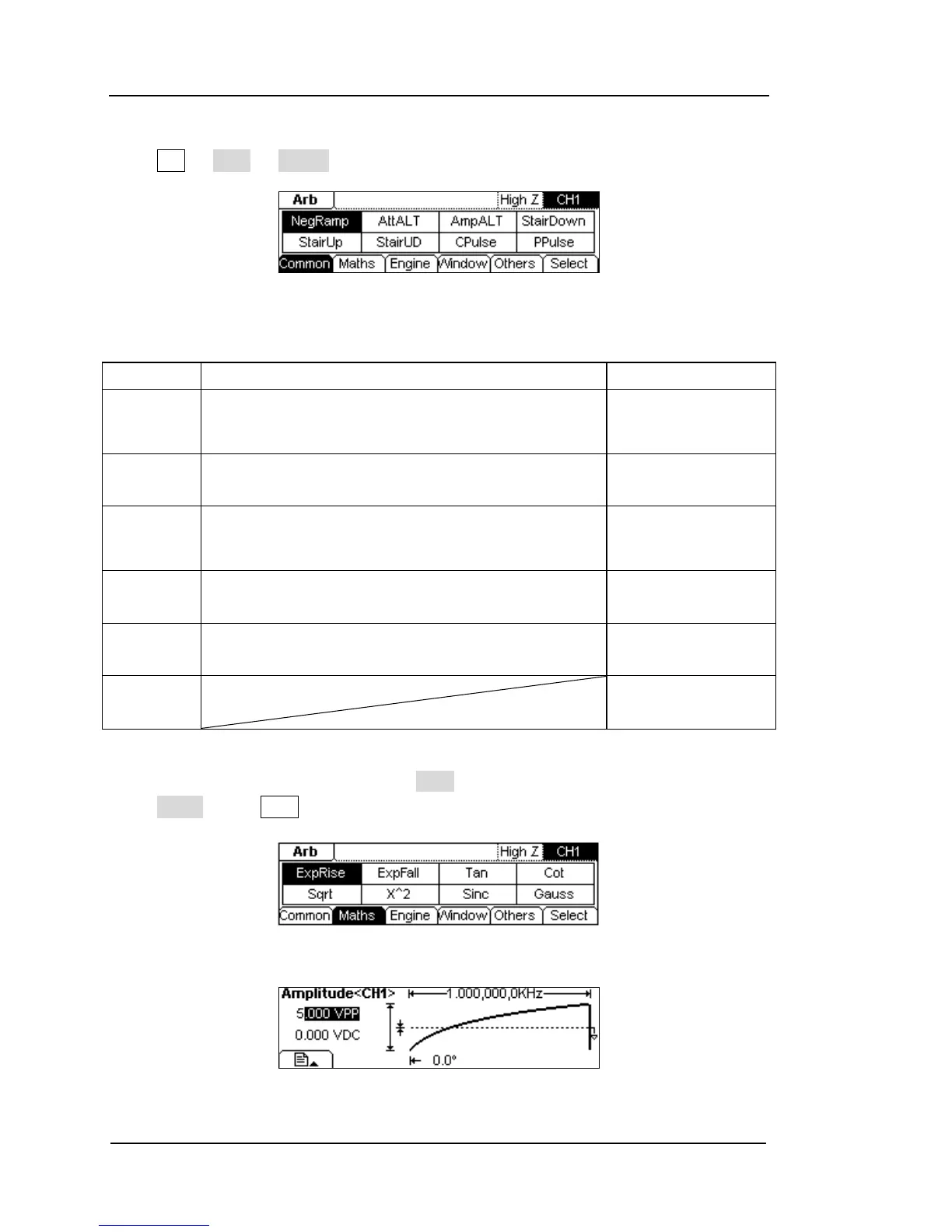

To Select the Built-in Waveform
Press Arb  Load  BuiltIn, enter the following interface.
Figure 2-21 Operation Menu
Table 2-8 Built-in Arbitrary Waveforms Menu
Menu
Settings
Explanation
Common
NegRamp/AttALT/AmpALT/StairDown/StairUp/Stai
rUD/CPulse/PPulse/NPulse/Trapezia/RoundHalf/Ab
sSine/AbsSineHalf/SineTra/SineVer
Choose common
Waveforms
Maths
ExpRise/ExpFall/Tan/Cot/Sqrt/X
∧
2/Sinc/Gauss/Hav
erSine/Lorentz/Dirichlet/GaussPulse/Airy
Choose Math
Waveforms
Engine
Cardic/Quake/Gamma/Voice/TV/Combin/BandLimi
ted/StepResp/Butterworth/Chebyshev1/
Chebyshev2
Choose Engine
Waveforms
Window
Boxcar/Barlett/Triang/Blackman/Hamming/Hannin
g/Kaiser
Choose Window
Waveforms
Others
RounsPM/DC
Choose other
Waveforms
Select
Press to select the
waveform
As shown in the following figure, Press Math, use the knob to choose “ExpRise” and
press Select. Press View to view the waveform of “ExpRise” function.
Figure 2-22 Choose “ExpRise” function
Figure 2-23 Waveform Parameter in the Graph Mode
