Rigol DG1022

RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DG1022
2-38
Set the N-Cycle Burst

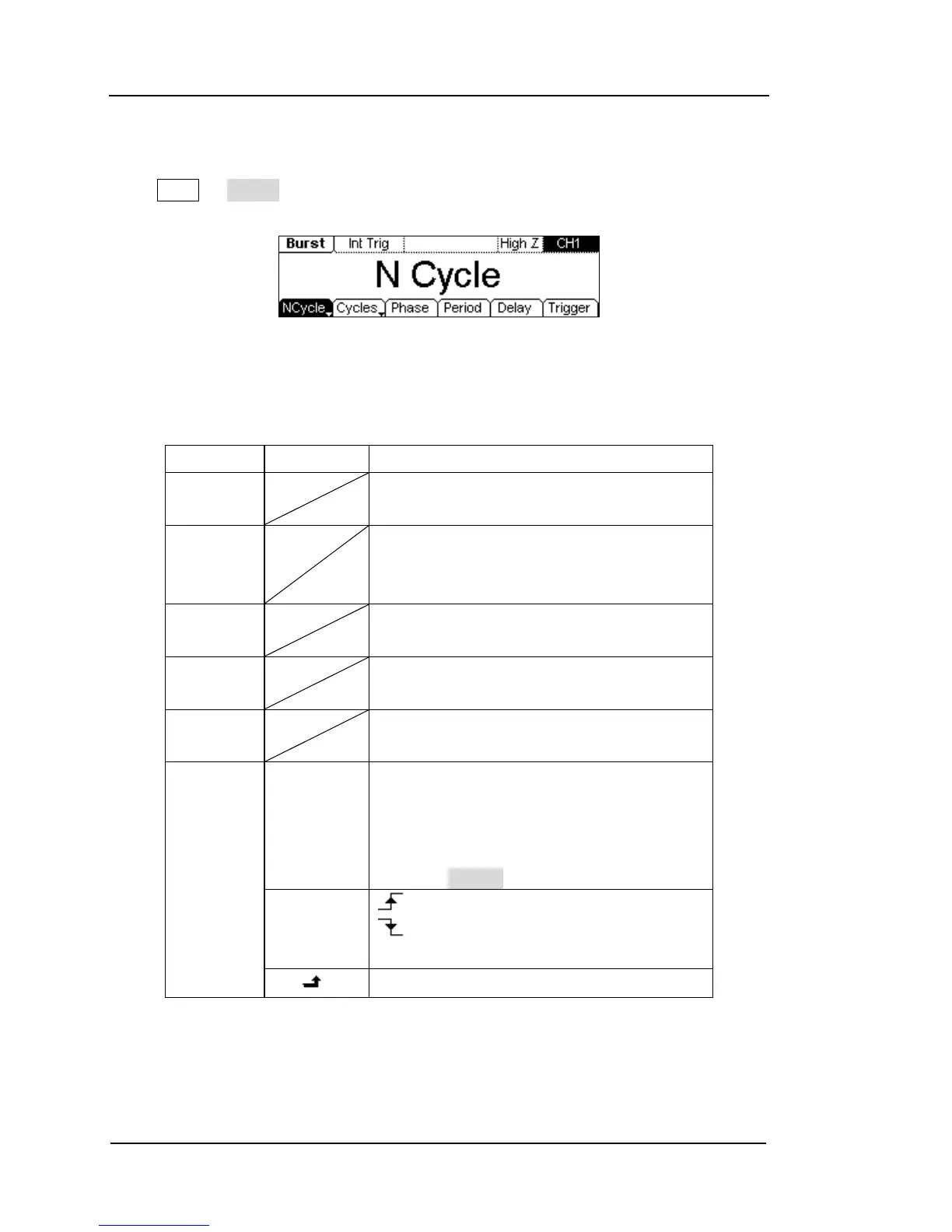

Press Burst  NCycle, enter the following interface.
Figure 2-45
Operation Menu
Table 2-18 Setting the N-Cycle parameters
Menu
Settings
Explanation
N-Cycle
Gated
Use the N-Cycle Mode
Use the Gated Mode
Cycles
Infinite
Set the Number of the bursts in a N-Cycle
Set the Number of the bursts in a N-Cycle
to be infinite
Phase
Set the Start Phase of the Burst
Period
Set the Period of the Burst
Delay
Set the Delay for the burst
Trigger
Source
Int: Choose Internal Source
Ext: Choose External Source, use the [Ext
Trig/FSK/Burst] connector in the rear
panel
Manual: Choose manual trigger. Press
Manual will output a burst signal
TrigOut
: Signal Triggered at Rise Edge
: Signal Triggered at Fall Edge
Off: Turn off Trigger Setting
Finish trigger settings
