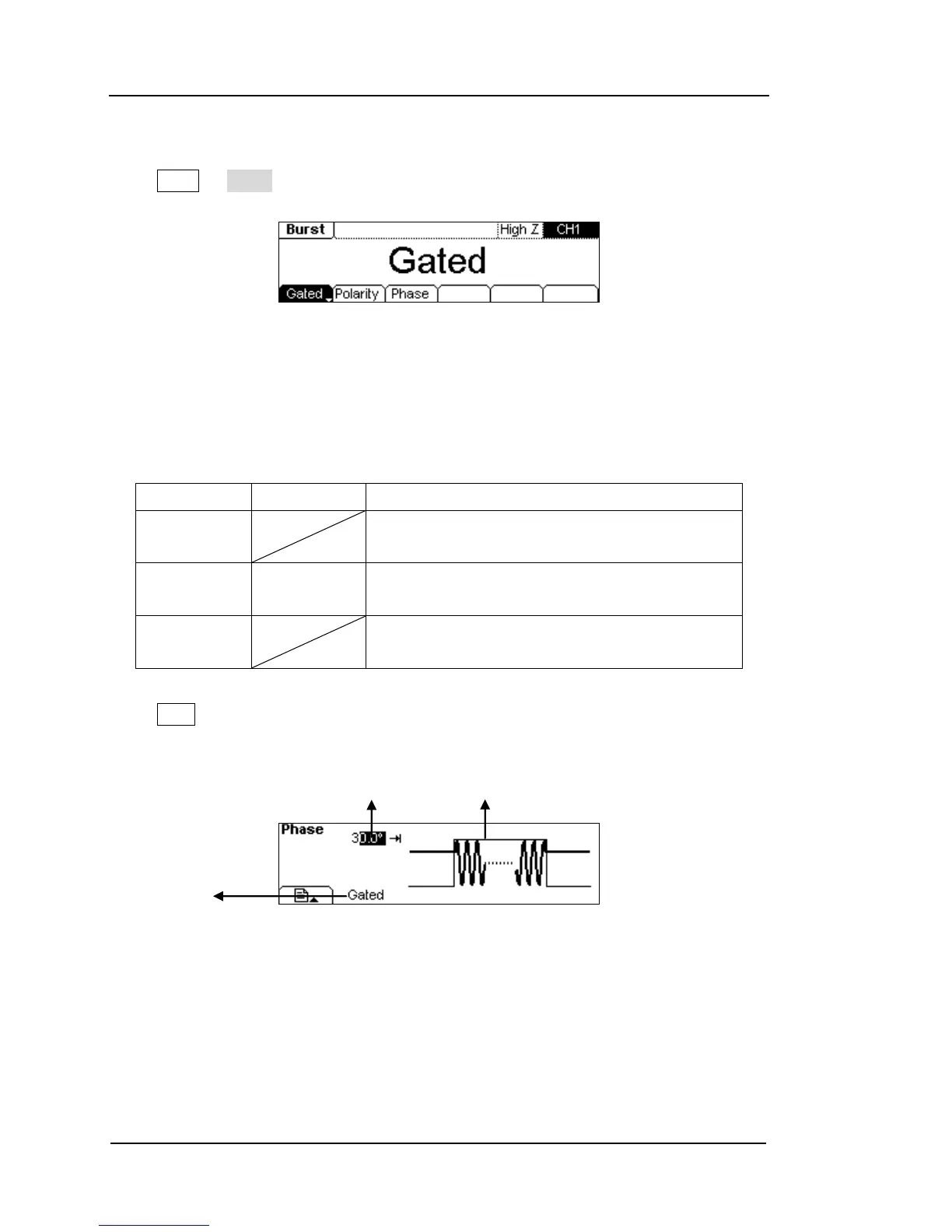

Set the Gated Burst

Press Burst  Gated, enter the following interface.

Figure 2-47

Operation Menu

Table 2-19 Setting the Gated parameters

Settings

Explanation

NCycle

Gated

Set the Gated Mode

Polarity

Pos

Neg

Set the Polarity for the Gated Signal

Phase

Set the Start Phase for the Gated Signal

Press View, in the Graph Mode, the waveform is shown in Figure 2-48.

Figure 2-48

Waveform Parameter in the Graph Mode

Positive Gated Signal

Gated

Start Phase
