2. To Set the Inverse Waveform
Press Utility  CH1  Inverse, to set the inverse Waveform output. An inverse
waveform will be displayed in the Graph Mode.

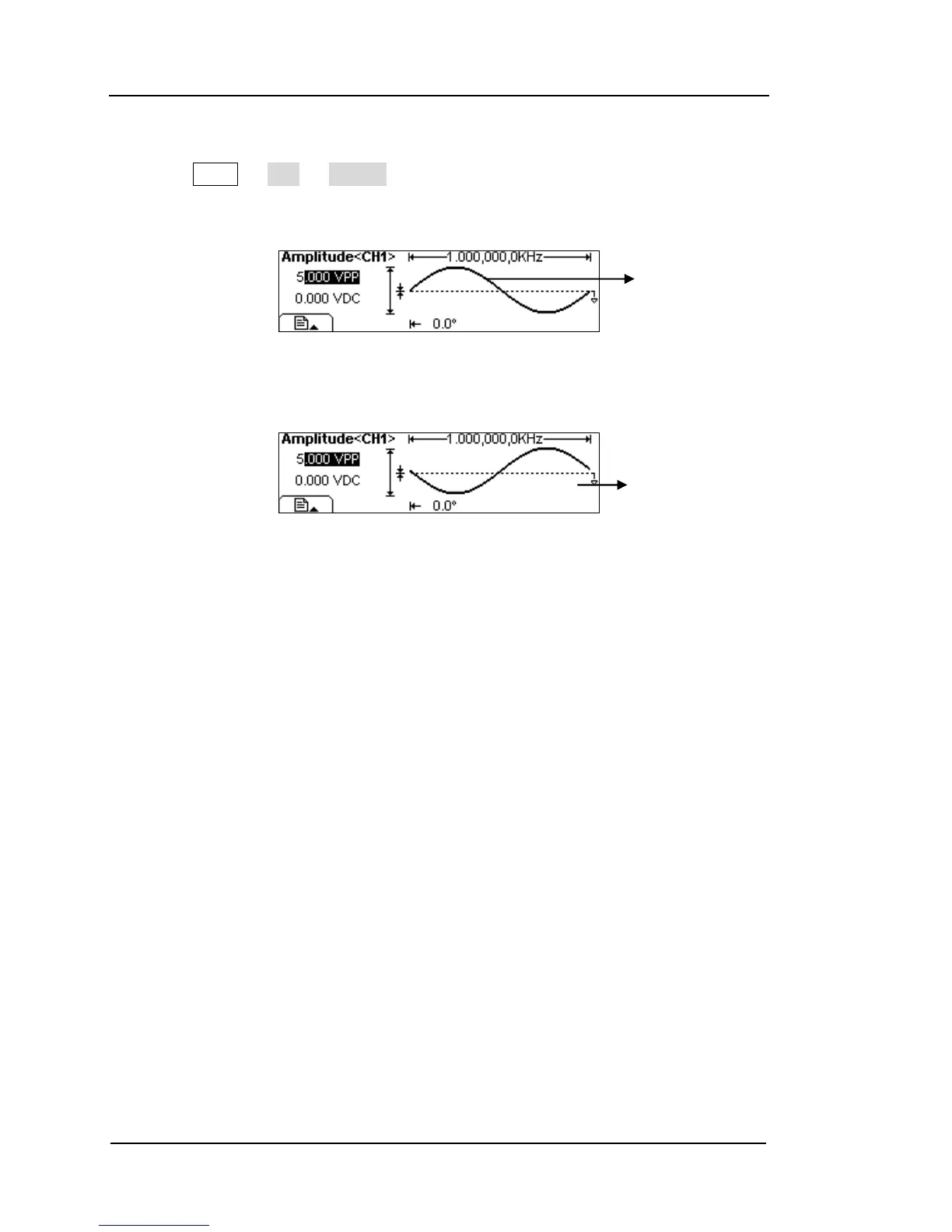

Figure 2-58
Normal Waveform
Figure 2-59
Inverse Waveform
NOTE:
No offset voltage will change while the waveform is inversed and the sync signal
would also not inverse.
Normal
Inverse
