10.2.3 Measurement Settings
In the Measure menu, click or tap the Setting button to enter the measurement
setting menu.

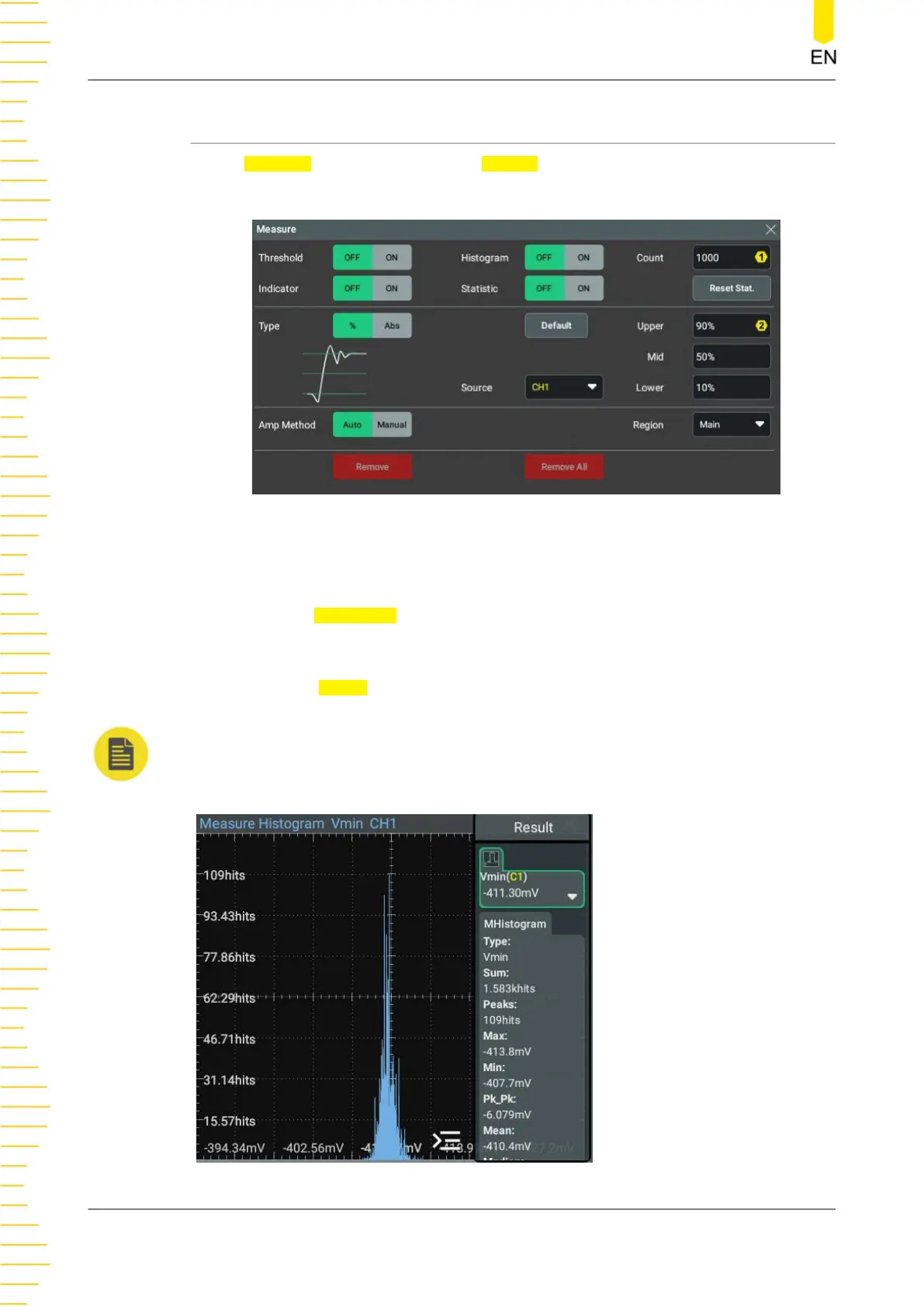

Figure 10.7 Measurement Settings Menu
Histogram
Click or tap the
Histogram on/off switch to enable or disable the histogram function.
After the histogram function is enabled, the Measure Histogram view is displayed on
the screen, as shown in the figure below. The histogram analysis result label is
displayed in the
Result sidebar (refer to Histogram Analysis Results ).
NOTE
Add at least one measurement item (
Select the Measurement Item ) before enabling the
Measure Histogram function.
Measurements
DHO800 User Guide
136
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

Rigol DHO804 Specifications

General

Bandwidth	70 MHz
Channels	4
Waveform Capture Rate	1, 000, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Vertical Resolution	12 bits
Interfaces	USB, LAN, HDMI
Input Impedance	1 MΩ ± 1%
Max Input Voltage	300 Vrms CAT I
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge, Logic
Protocol Decoding	I2C, SPI, UART, CAN, LIN, FlexRay, I2S
USB Ports	USB Host, USB Device
LAN Port	1
