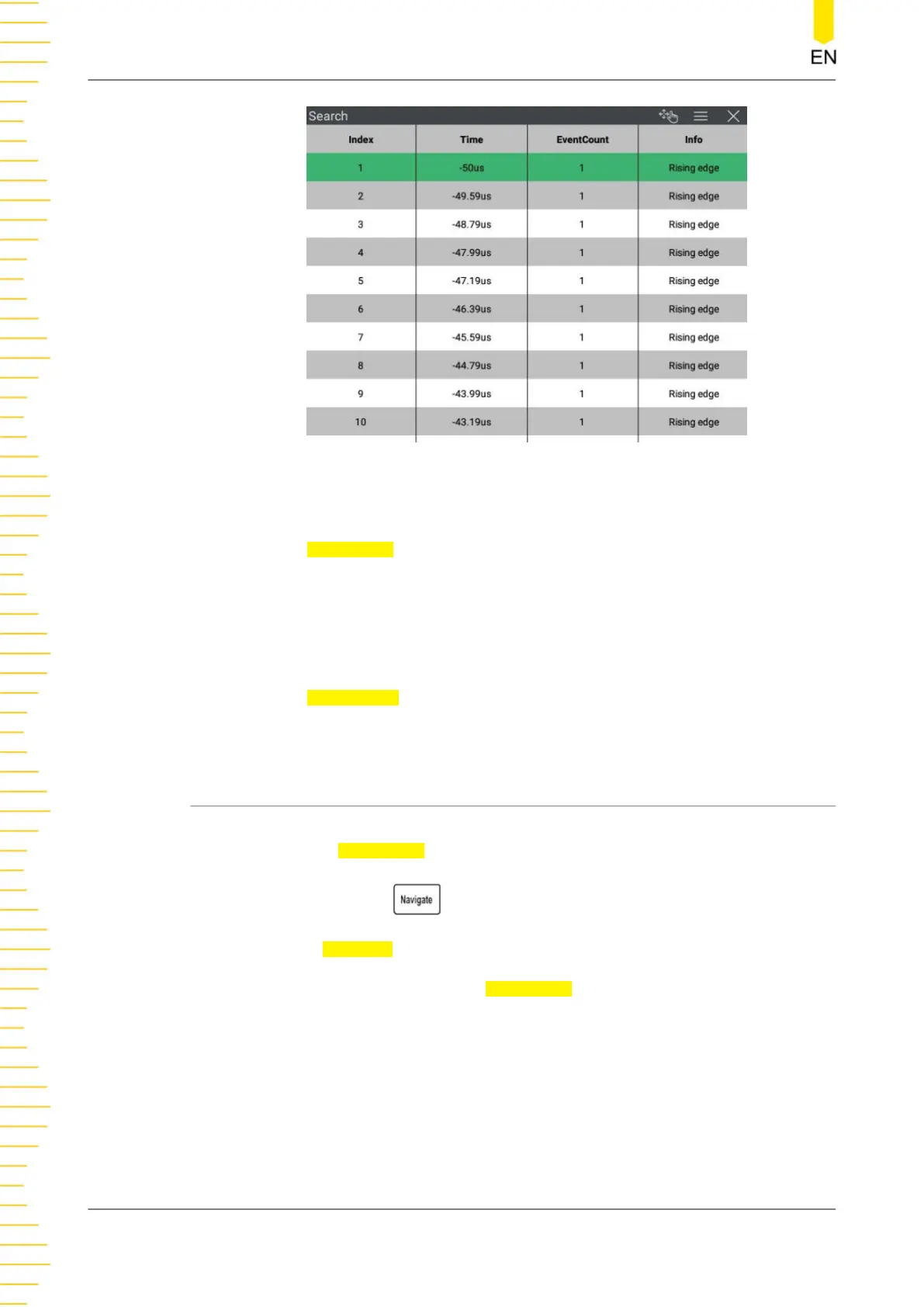

Figure 18.2 MarkTable Display
5. Navigation
Click or tap
Navigation to access the navigation menu. You can use the "Search
Event" mode in
Navigation to navigate through the search events.
6. Save search events
You can save the event data to the instrument’s internal memory or an external
USB storage device in format of "*.csv".
Click or tap
Save events to access the "Save" menu. For details, please refer to To
Save a File
.
18.2 Navigation
The Navigation function allows you to navigate time, search events, and segments.
You can assess the
Navigation menu in the following ways.
• Press the front-panel
key to access the menu.
• Click or tap Navigate on the toolbar at the upper-right of the interface.
• In the "Search" menu, click or tap Navigation to access the menu.
Search and Navigation
DHO800 User Guide
194
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

Rigol DHO804 Specifications

General

Bandwidth	70 MHz
Channels	4
Waveform Capture Rate	1, 000, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Vertical Resolution	12 bits
Interfaces	USB, LAN, HDMI
Input Impedance	1 MΩ ± 1%
Max Input Voltage	300 Vrms CAT I
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge, Logic
Protocol Decoding	I2C, SPI, UART, CAN, LIN, FlexRay, I2S
USB Ports	USB Host, USB Device
LAN Port	1
