Rigol DHO804 User Manual

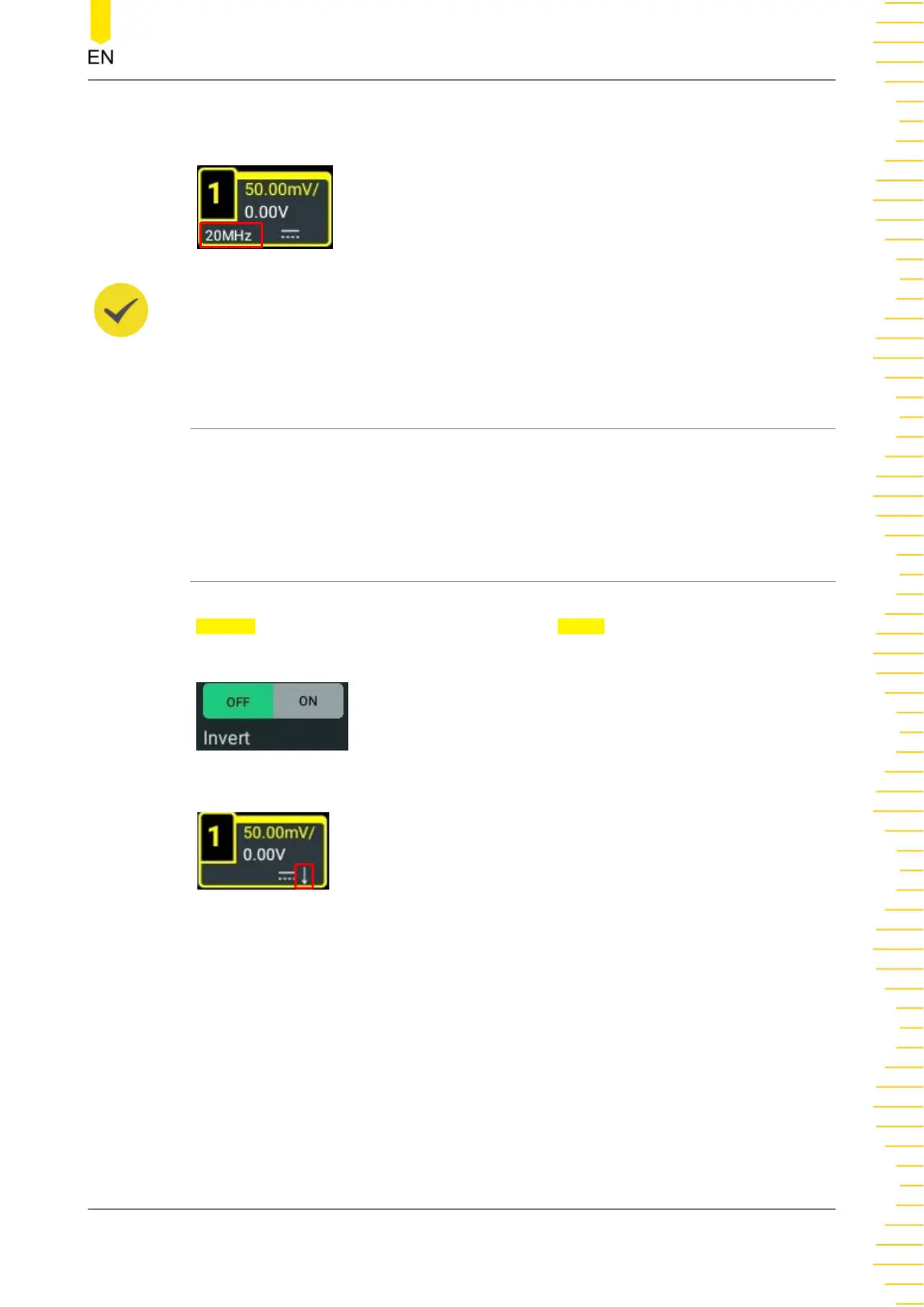

limit value will be displayed in the channel status label at the bottom of the screen, as
shown in the figure below.
TIP
Bandwidth limit can not only reduce the noise, but also can attenuate or eliminate the high
frequency components of the signal.
5.6 To Specify Input Impedance
This series oscilloscope provides 1 MΩ input impedance mode. In this mode, the
input impedance of the oscilloscope is very high, and the current flowed from the
circuit under test can be ignored.
5.7 To Invert a Waveform
Click or tap the channel status label at the bottom of the screen, and then the
Vertical menu is displayed. Then click or tap the Invert on/off switch to enable or
disable the waveform invert function.
When "ON" is selected, the channel label is as shown in the figure below.
When the Invert function is disabled, the waveform is displayed normally; when
enabled, the voltage values of the displayed waveform are inverted, as shown in the
figure below. Inverting a waveform also changes the result of math function,
waveform measurement, etc.
Vertical System
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DHO800 User Guide
41

Rigol DHO804 Specifications

General

Bandwidth	70 MHz
Channels	4
Waveform Capture Rate	1, 000, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Vertical Resolution	12 bits
Interfaces	USB, LAN, HDMI
Input Impedance	1 MΩ ± 1%
Max Input Voltage	300 Vrms CAT I
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge, Logic
Protocol Decoding	I2C, SPI, UART, CAN, LIN, FlexRay, I2S
USB Ports	USB Host, USB Device
LAN Port	1
