Rigol DHO804 User Manual

18
Search and Navigation
The Search function allows you to quickly find and mark the event of interest and
then go to the specified event in the marktable by navigating search events. The
search types include edge and pulse.
The Navigation function allows you to navigate time, search events, and segments.
18.1 Search
This function allows you to search for the specified edge and pulse width trigger
vents. Found search events are marked with small inverted triangles (
) at the top
of the graticule. Click or tap
> Search to enter the "Search" menu. You can also
click or tap
Search in the "Navigation" menu (only when the navigation mode is set to
"Search Event") to enter the "Search" menu, as shown in the figure below.

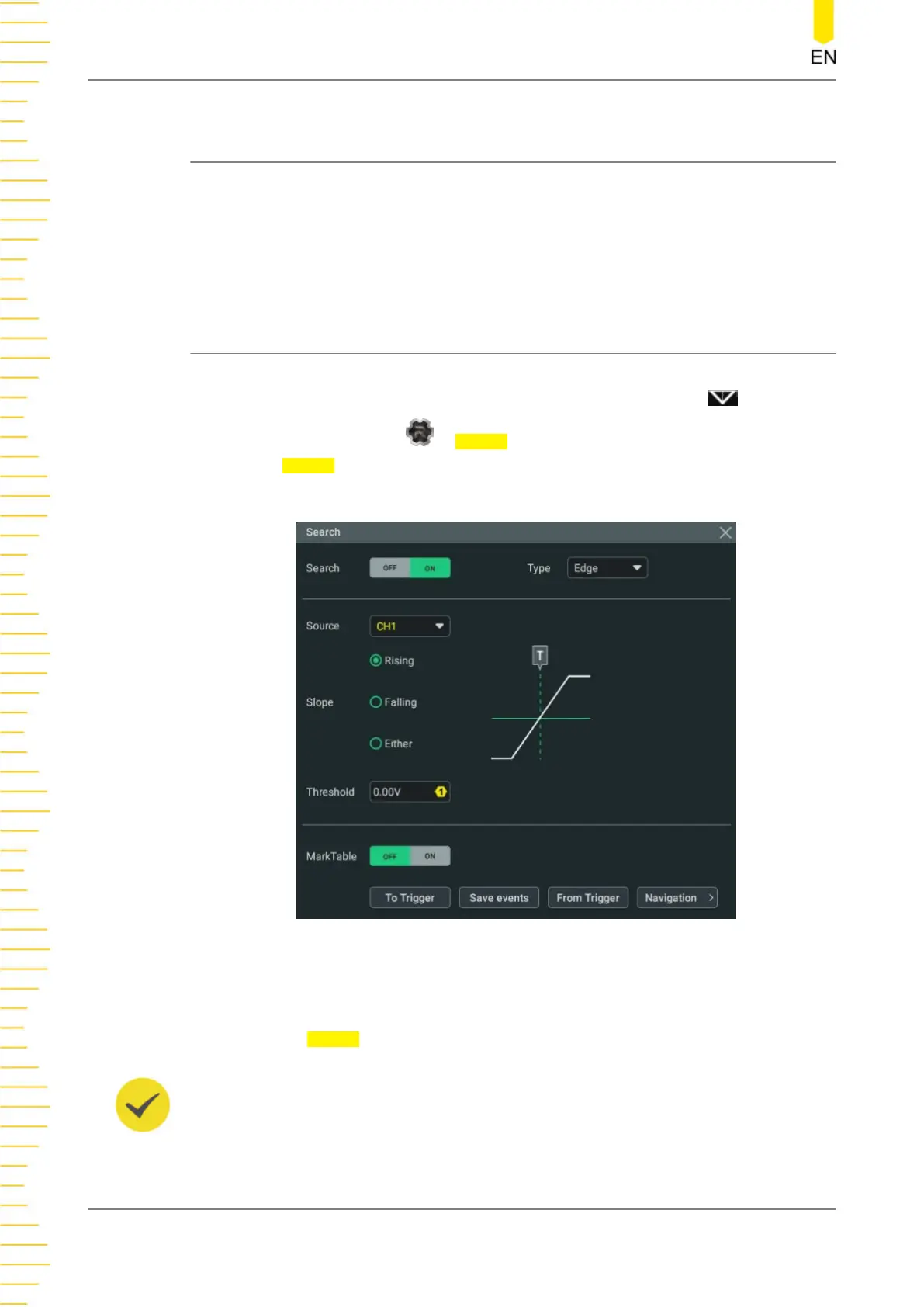

Figure 18.1 Search Menu
1.
Search On/Off
Click or tap
Search on/off switch to enable or disable the search function.
TIP
Enabling the search function automatically turns on the
Zoom Mode (Delayed Sweep) .
2. Set up searches
Search and Navigation
DHO800 User Guide
192
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

Rigol DHO804 Specifications

General

Bandwidth	70 MHz
Channels	4
Waveform Capture Rate	1, 000, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Vertical Resolution	12 bits
Interfaces	USB, LAN, HDMI
Input Impedance	1 MΩ ± 1%
Max Input Voltage	300 Vrms CAT I
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge, Logic
Protocol Decoding	I2C, SPI, UART, CAN, LIN, FlexRay, I2S
USB Ports	USB Host, USB Device
LAN Port	1
