Rigol DHO804 User Manual

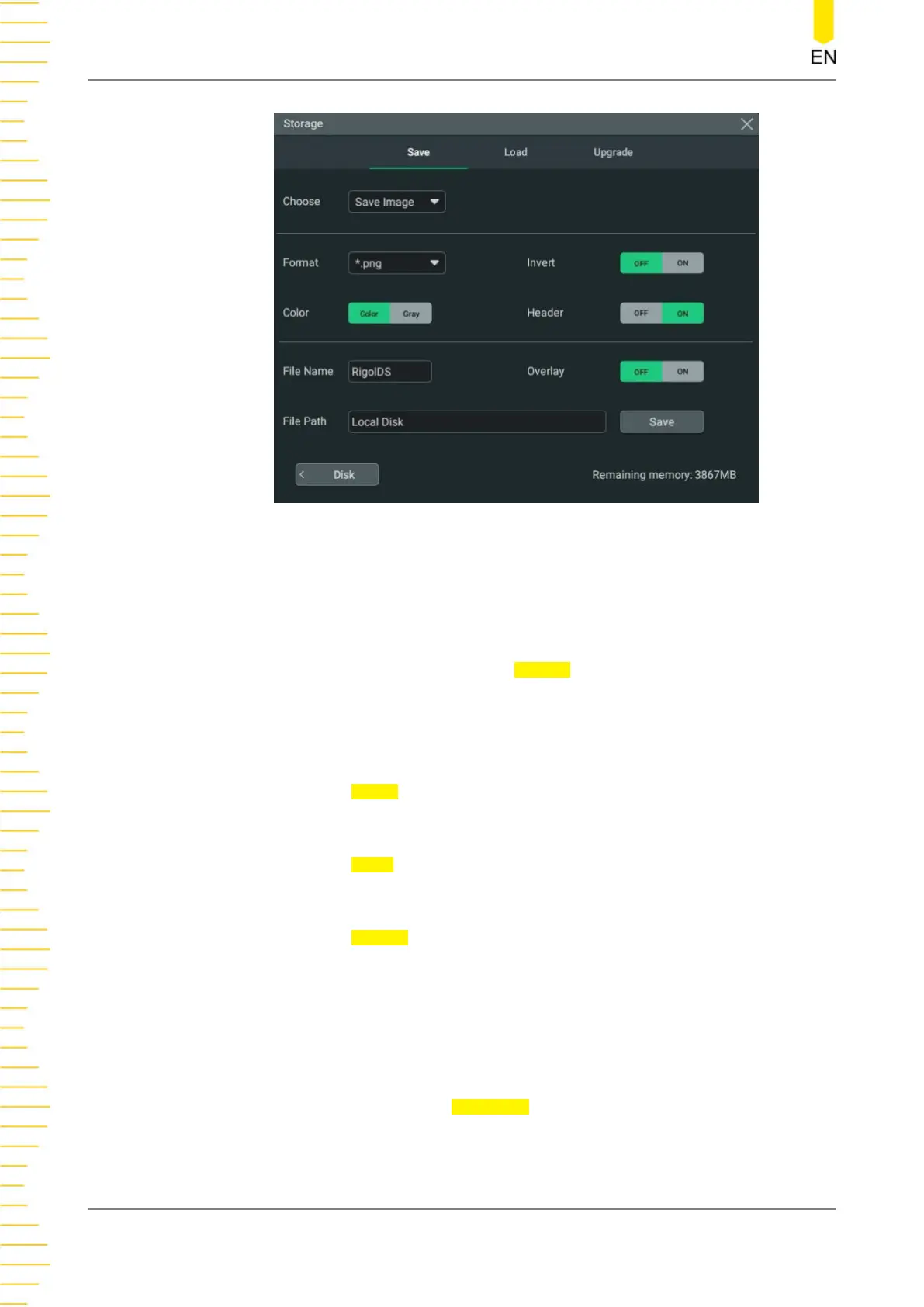

Figure 20.1 Image Saving Setting Menu
Set the image format
• Format
Click or tap the drop-down button of
Format to select "*.png", "*.bmp", or
"*.jpg". Then the screen image will be saved to the internal or external memory
in the selected format.
• Invert
Click or tap the
Invert on/off switch to turn on/off inverting image colors.
• Color
Click or tap the
Color toggle button to select "Color" or "Gray" images.
• Header
Click or tap the
Header on/off switch to enable or disable the display of the
header. If you select "ON", the instrument model and the image creation date
will be displayed in the header of the image after you save the image file.
Set the file saving parameters
• Set the filename
Click or tap the input field of
File Name to input the file name to be saved with
the pop-up virtual keypad.
• Set the file path
Store and Load
DHO800 User Guide
202
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

Rigol DHO804 Specifications

General

Bandwidth	70 MHz
Channels	4
Waveform Capture Rate	1, 000, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Vertical Resolution	12 bits
Interfaces	USB, LAN, HDMI
Input Impedance	1 MΩ ± 1%
Max Input Voltage	300 Vrms CAT I
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge, Logic
Protocol Decoding	I2C, SPI, UART, CAN, LIN, FlexRay, I2S
USB Ports	USB Host, USB Device
LAN Port	1
