Rigol DHO804 User Manual

14.5 To Start or Stop the Pass/Fail Test Operation
After the Pass/Fail test function is enabled, click or tap the Operate button
to start the test operation or to stop the operation.
During the test process, the oscilloscope will test the waveforms, display the test
information, and output the test information based on the current settings. The
"Pass/Fail" result will be displayed in the "Result" bar at the right side of the screen,
as shown in the figure below.
Blue Area: Mask
Pass/Fail Result Display
Signal under Test
The test fails once the
waveform reaches the
mask area.

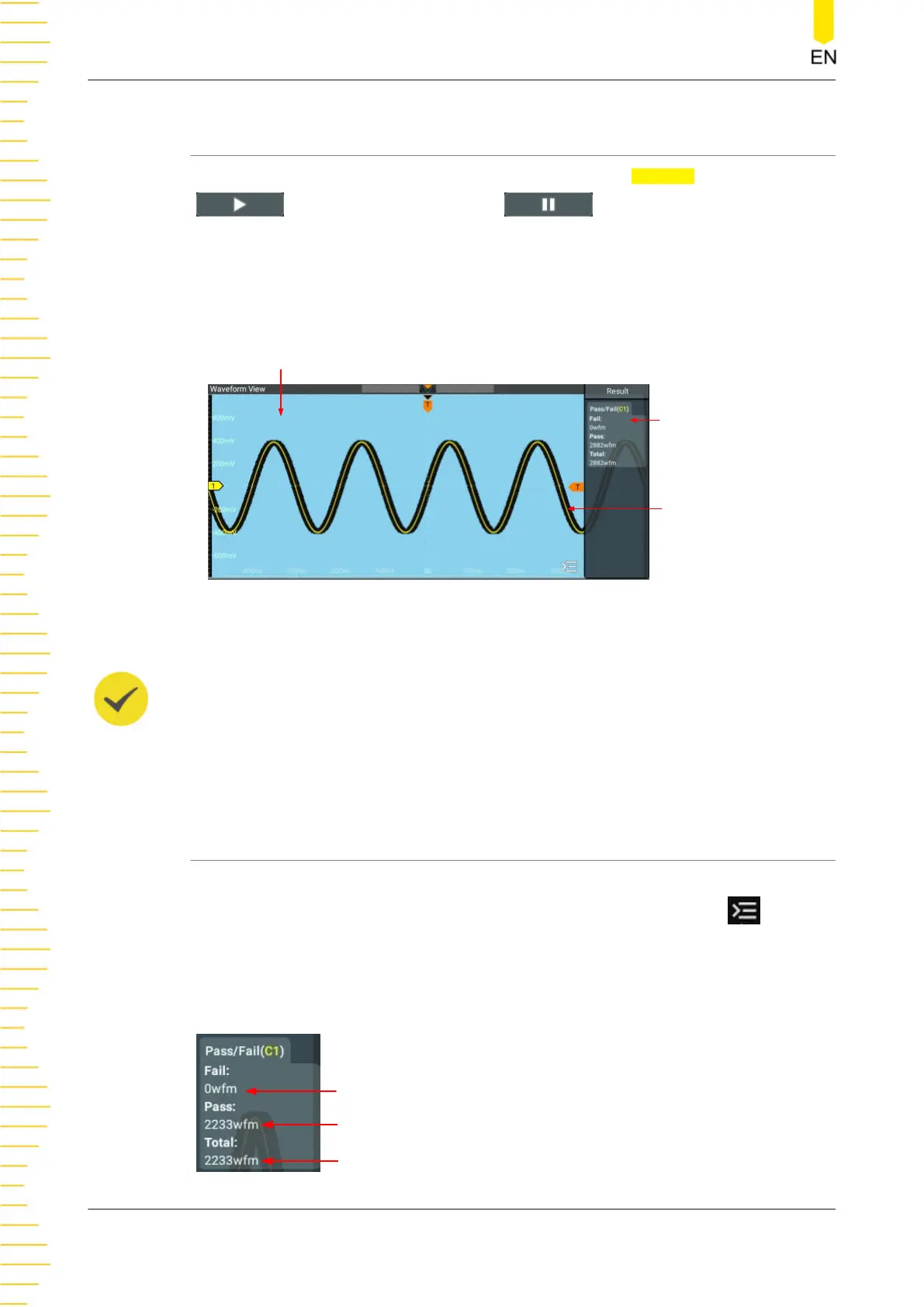

Figure 14.3 Pass/Fail Test Interface
TIP
• Only when the pass/fail test function is enabled, can you start or stop the pass/fail test
operation, save and load the mask range.
• After starting the test operation, you can neither modify the source channel nor adjust
the test mask.
14.6 To Display the Statistics of the Test Results
After the "Pass/Fail" function is enabled, the test results will be displayed in the
"Result" bar at the right side of the screen. You can click or tap the icon
at the
lower-right corner of the screen to hide the "Result" sidebar.
The test results statistics include the number of failed frames, the number of
successful frames, and total number of frames, as shown in the figure below.
Failed Frames
Passed Frames
Total Frames
Pass/Fail Test
DHO800 User Guide
166
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

Rigol DHO804 Specifications

General

Bandwidth	70 MHz
Channels	4
Waveform Capture Rate	1, 000, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Vertical Resolution	12 bits
Interfaces	USB, LAN, HDMI
Input Impedance	1 MΩ ± 1%
Max Input Voltage	300 Vrms CAT I
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge, Logic
Protocol Decoding	I2C, SPI, UART, CAN, LIN, FlexRay, I2S
USB Ports	USB Host, USB Device
LAN Port	1
