Rigol DHO804 User Manual

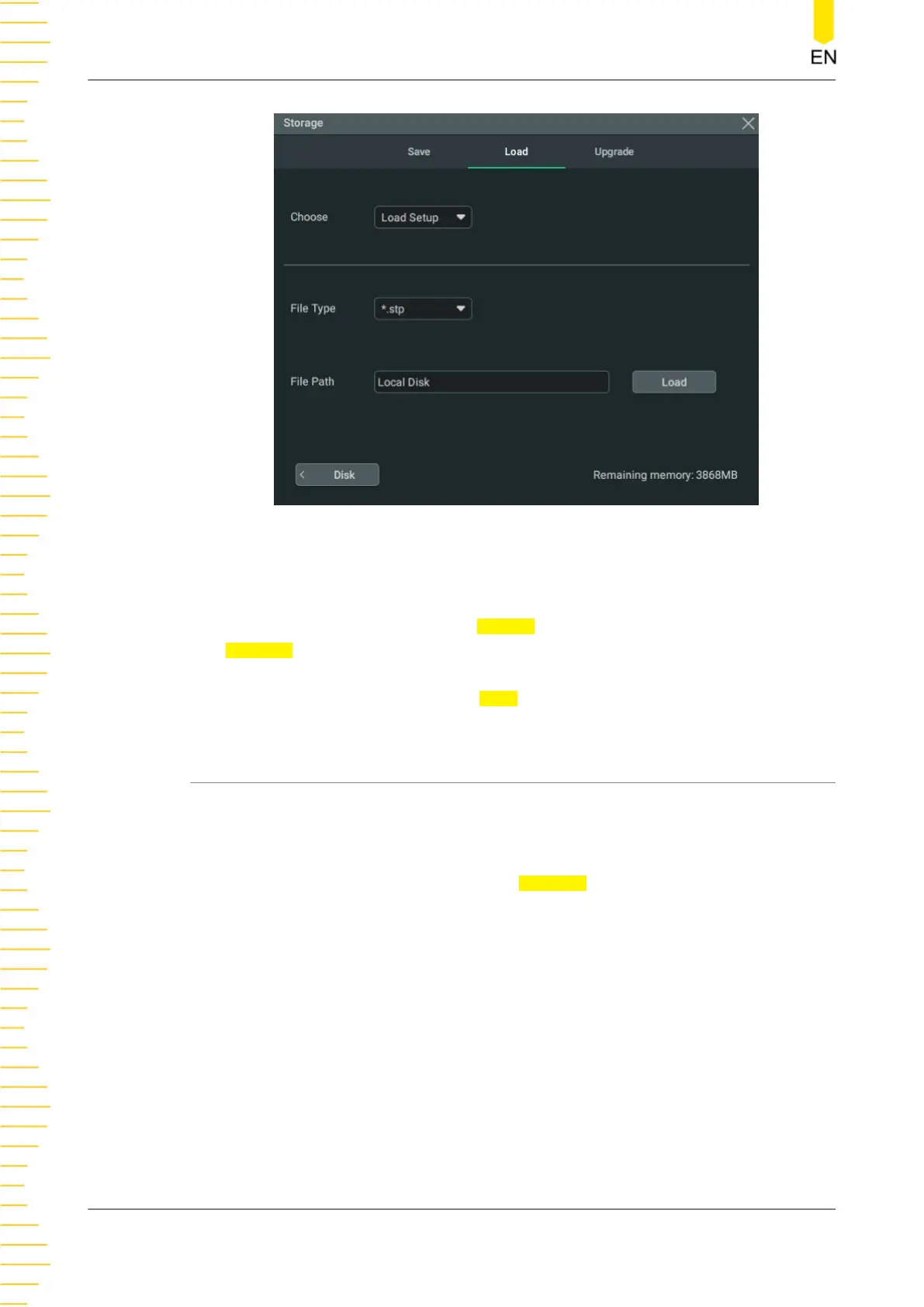

Figure 20.4 Load Setting Menu
Load Setup
Click or tap the drop-down button of
Choose to select "Load Setup". Then, click or
tap
File Path to load the setups from the internal memory or the external USB disk.
The default file type is "*.stp", and no other options are available. Select the file to be
loaded from the memory. Click or tap
Load to load the selected file.
20.4 Firmware Upgrade
This instrument supports local upgrade and online upgrade.
Local upgrade
1. In the storage setting menu, click or tap
Upgrade to enter the local upgrade
setting menu.
Store and Load
DHO800 User Guide
210
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

Rigol DHO804 Specifications

General

Bandwidth	70 MHz
Channels	4
Waveform Capture Rate	1, 000, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Vertical Resolution	12 bits
Interfaces	USB, LAN, HDMI
Input Impedance	1 MΩ ± 1%
Max Input Voltage	300 Vrms CAT I
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge, Logic
Protocol Decoding	I2C, SPI, UART, CAN, LIN, FlexRay, I2S
USB Ports	USB Host, USB Device
LAN Port	1
