Press to access the Analyse menu. In this menu, you can access analysis
features including digital voltmeter (DVM), counter, power analysis, waveform
recording, and pass/fail.
4. Measure Key
Press
to access the Measure menu. You can select the waveform parameters
in the menu. For details, refer to
Select the Measurement Item
.
5. Cursor Key
Press
to enable cursor measurements. The results are displayed in the right-
side "Result" bar. Three cursor modes are available: Manual, Track, and XY; wherein,
the XY mode is available only when the XY function is enabled.

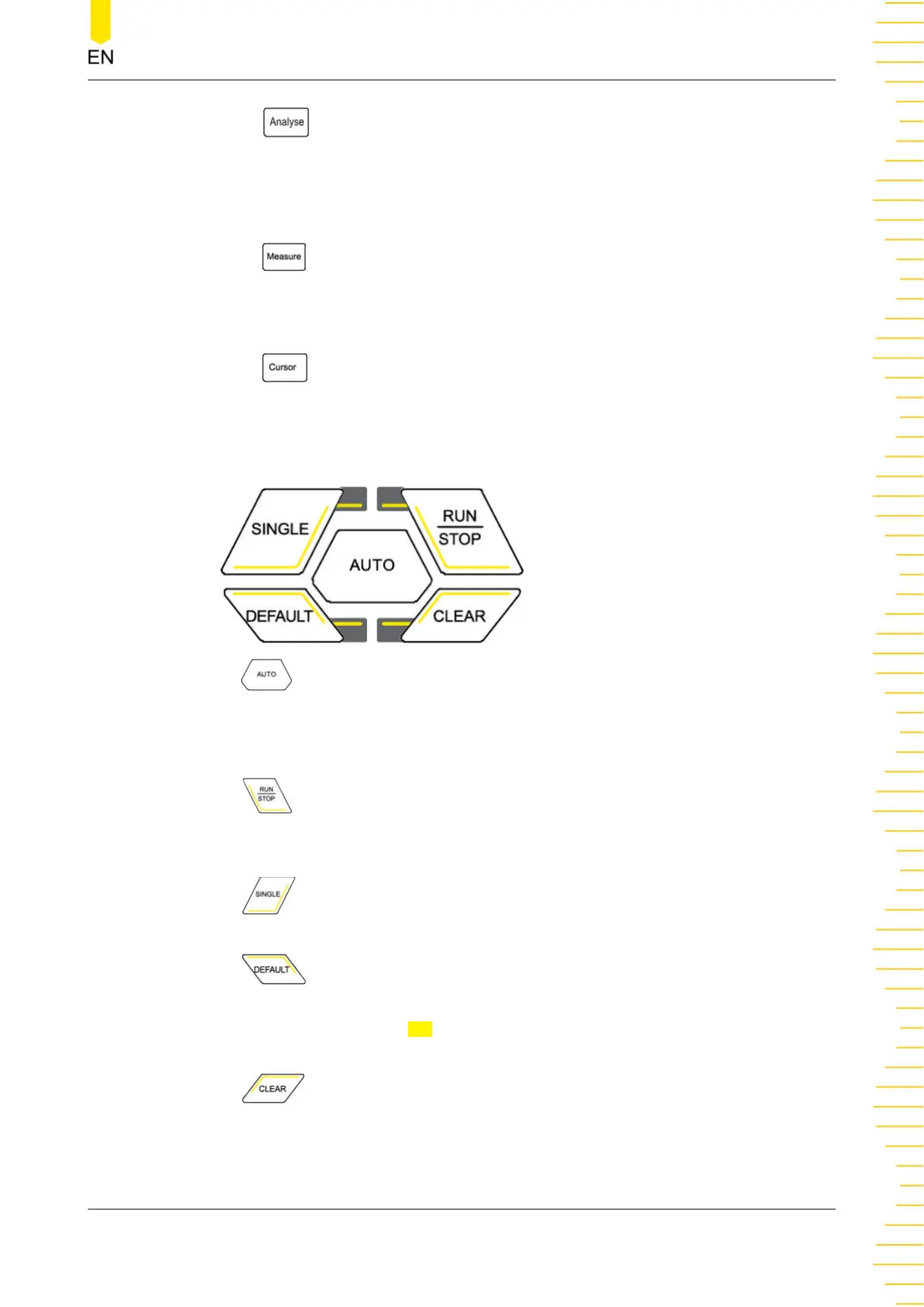

6. Common Tools Keys
- is the auto scale key. Press this key to enable the auto scale function.
The oscilloscope is automatically configured to best display the input signals by
adjusting the vertical scale, horizontal timebase, and trigger mode. To set up
the key, please refer to
Auto Config
.
-
is the RUN/STOP key. Press the key to set the oscilloscope's run state to
"RUN" or "STOP". In "RUN" state, this key is illuminated in green; in "STOP"
state, this key is illuminated in red.
-
is the key for a single acquisition. Press this key to set the oscilloscope's
trigger mode to "Single".
-
is the default setup key. Press this key twice to directly restore the
oscilloscope's default settings. You can also press the key and a dialog box is
displayed. Click or tap
OK in the dialog to restore the oscilloscope's default
settings.
-
is the clear key. Press this key to clear all waveform on the display. If
the oscilloscope is in "RUN" mode, it continues to display new waveforms.
7. Touch Lock Key
Quick Start
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DHO800 User Guide
19
