User’s Guide for DS1000B series

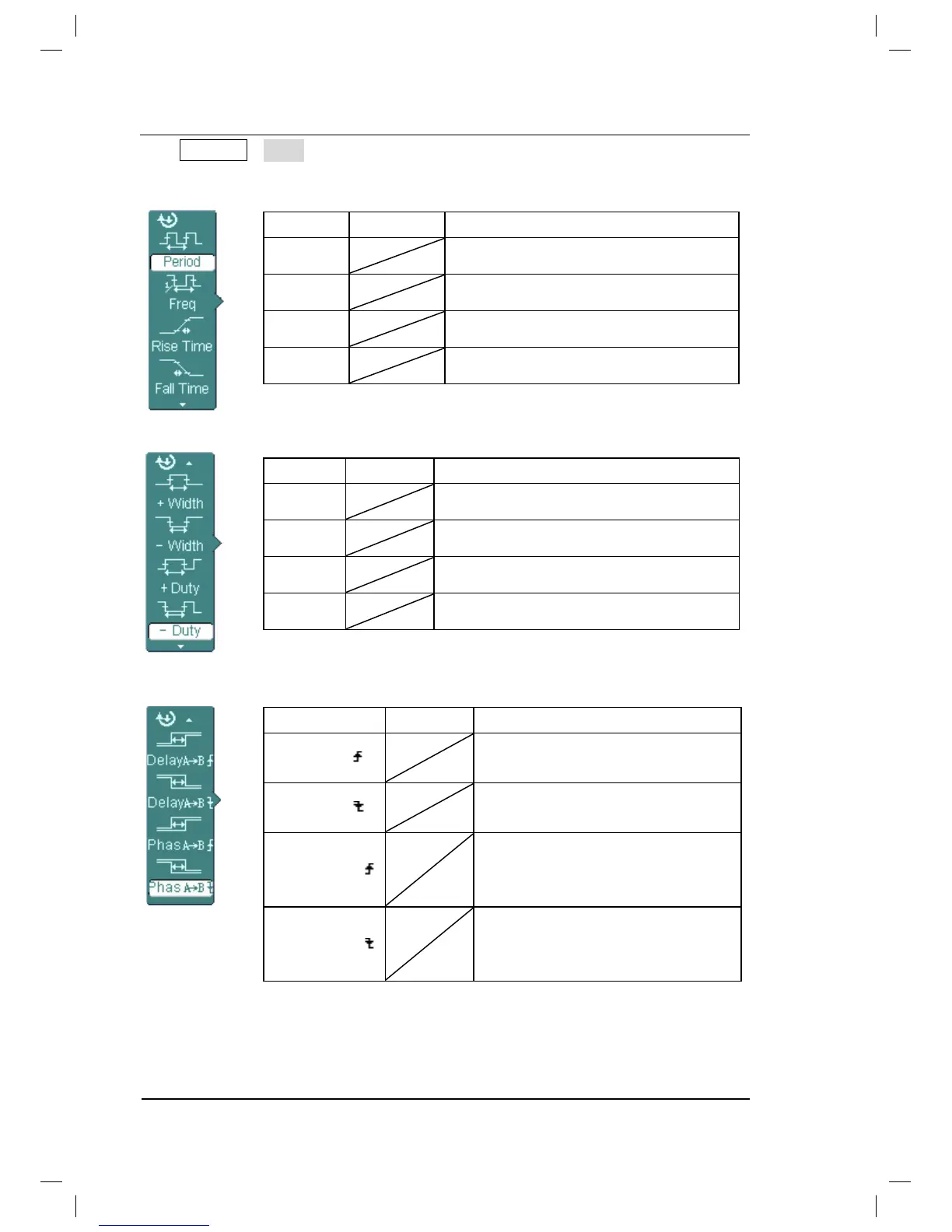

Press MeasureėTime buttonˈand go to the following menu
Figure 2-125 Table 2-84 The Time Measurement menu (Page 1/3)
Figure 2-126 Table 2-85 The Time Measurement menu (Page 2/3)
Measure +Pulse Width of a pulse wave.
–Duty Cycle of a pulse wave
Figure 2-127 Table 2-86 The Time Measurement menu (Page 3/3)
Measure the signals delay between
two channels at the rising edge.
Measure the signals delay between
two channels at the falling edge.
Measure the phase difference
between two channels at the rising
edge
Measure the phase difference
between two channels at the
falling edge
Measure Period of a waveform
Measure Frequency of a waveform
To Next Page
