Rigol DS1202/4B - Track Mode

RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000B series
2-102

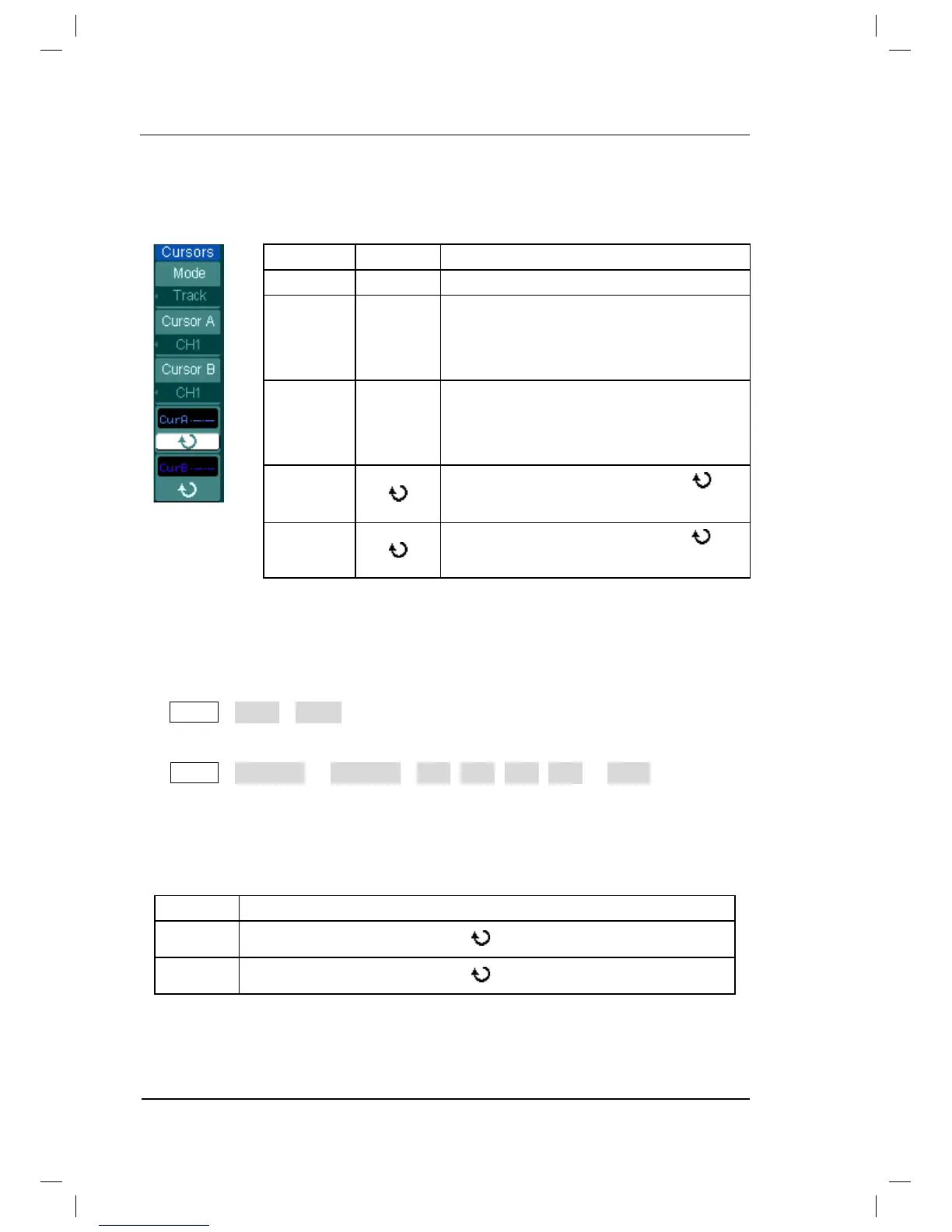

Track Mode
Figure 2-131 Table 2-89 Cursor descriptions
Menu
Settings
Comments
Mode
Track
Set Track mode in cursor measurement.
Cursor A
CH, CH2,
CH
,
CH4,
MATH
None
Set Cursor A in conjunction with CH1,
CH2 or turn off Cursor A
.
Cursor B
CH, CH2,
CH
,
CH4,
MATH
None
Set Cursor B in conjunction with CH1,
CH2 or turn off Cursor B
.
CurA
(Curso
r
A)
Turn
the multifunctional Knob ( )
to
move cursor
A Horizontally.
C
urB
(Curso
r
B)
Turn
the multifunctional knob ( )
to
move cursor B
horizontally.
In cursor track mode, the cursors move together with the selected waveform.
To do Track mode Cursor Measurements, follow these steps:
1. Select the Track mode for cursor measurement by pressing soft button as:
CursorėModeėTrack.
2. Select channel Source for Cursor A and Cursor B by pressing soft button as:
CursorėCursor A or Cursor BėCH1, CH2, CH3, CH4 or None.
3. Move the cursors to adjust the horizontal positions of the cursors: (Details in the
following Table )
Table 2-90 The Cursor usage
Cursor
Operation
Cursor A
Turn
the multifunctional knob ( ) to move cursor A horizontally
.
Cursor B
Turn
the multifunctional knob ( ) to move Cursor B horizontally
.
