User’s Guide for DS1000B series
2-82
Waveform Recorder
Waveform recorder records input waveforms from CH1, CH2, CH3 and CH4 with a
maximum record length of 1000 frames. This performance can also be activated by
the Pass/Fail test output, which makes this function especially useful to capture
abnormal signals in long term without keeping an eye watching it.
Press UtilityėRecordėModeėRecord to go to the following menu
Waveform recorder: Record the waveforms with specified interval.

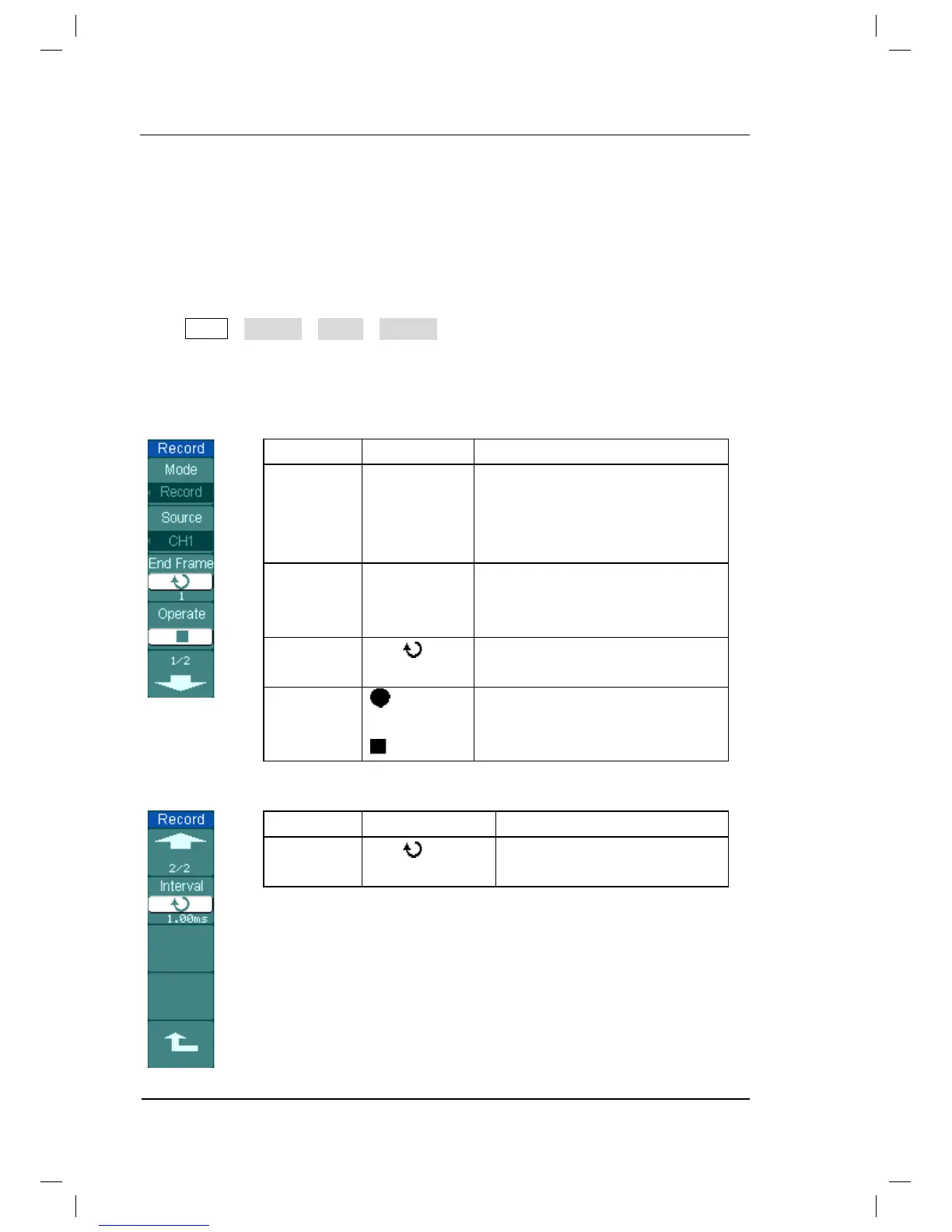

Figure 2-104 Table 2-69 The Record menu (Page 1/2)
Menu
Settings
Comments
Mode
OFF
Record
Play back
Storage
Select record mode.
Select play back mode
.
Select storage mode.
Turn off all recorder functions.
Source
CH1, CH2
CH3
, CH4
P/F-OUT
Select record source
channel.
End Frame
<1-1000>
Set number of record
frames.
Operate
(Run)
(Stop)
Record stopped, press to Start
recording
.
Press to stop recording.
Figure 2-105 Table 2-70 The Record menu (Page 2/2)
Menu
Settings
Comments
Interval
<1.00ms
-1000s>
Set time interval between
record frames.
