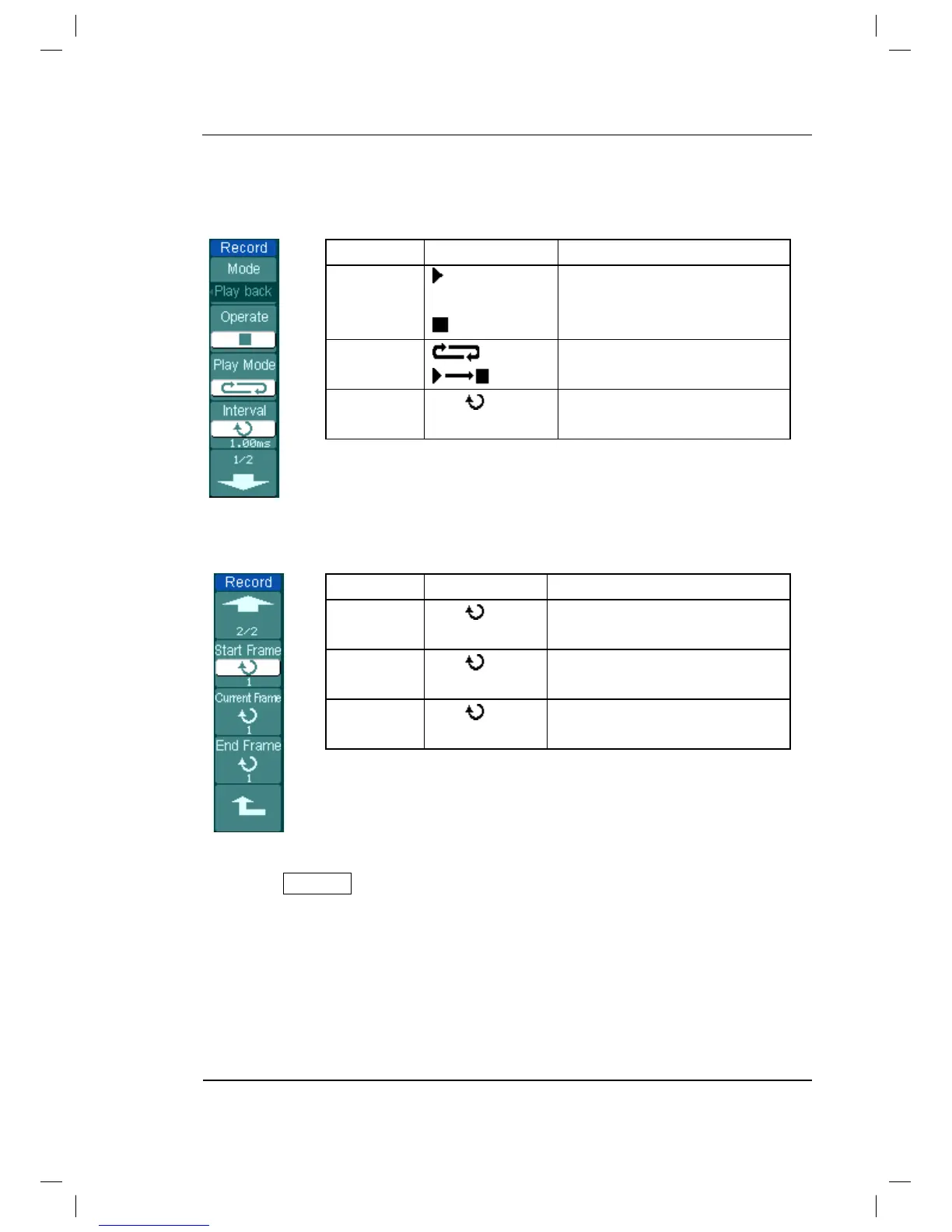

RIGOL
© 2008 RIGOL T
echnologies, Inc.
User’s Guide for DS1000B Seri
es
2-83
Play back:
Play back the recorded w
aveforms.
Figure 2-106
T
able 2-71
The Recor
d menu (P
age 1/2)
Menu
Settings
Comments
Operat
e
(Run)
(Stop)
Play stopped, press to Start
playback
.
Press to stop playing.
Play mode
Set repeat play mode.
Set single time play mode.
Interv
al
<1.00ms-20s>
Set up interv
al value between
frames.
Figure 2-107
T
able 2-72
The Recor
d menu (P
age 2/2)
Menu
Settings
Comments
Start
Frame
<1-1000>
Set start frame
.
Current
Frame
<1-1000>
Select current fr
ame to be
played.
End
F
rame
<1-1000>
Set End frame.
Note:
the
Run/Stop
button can also replay or co
ntinue the wav
eform display
.
110
112
