User’s Guide for DS1000B Series
2-39

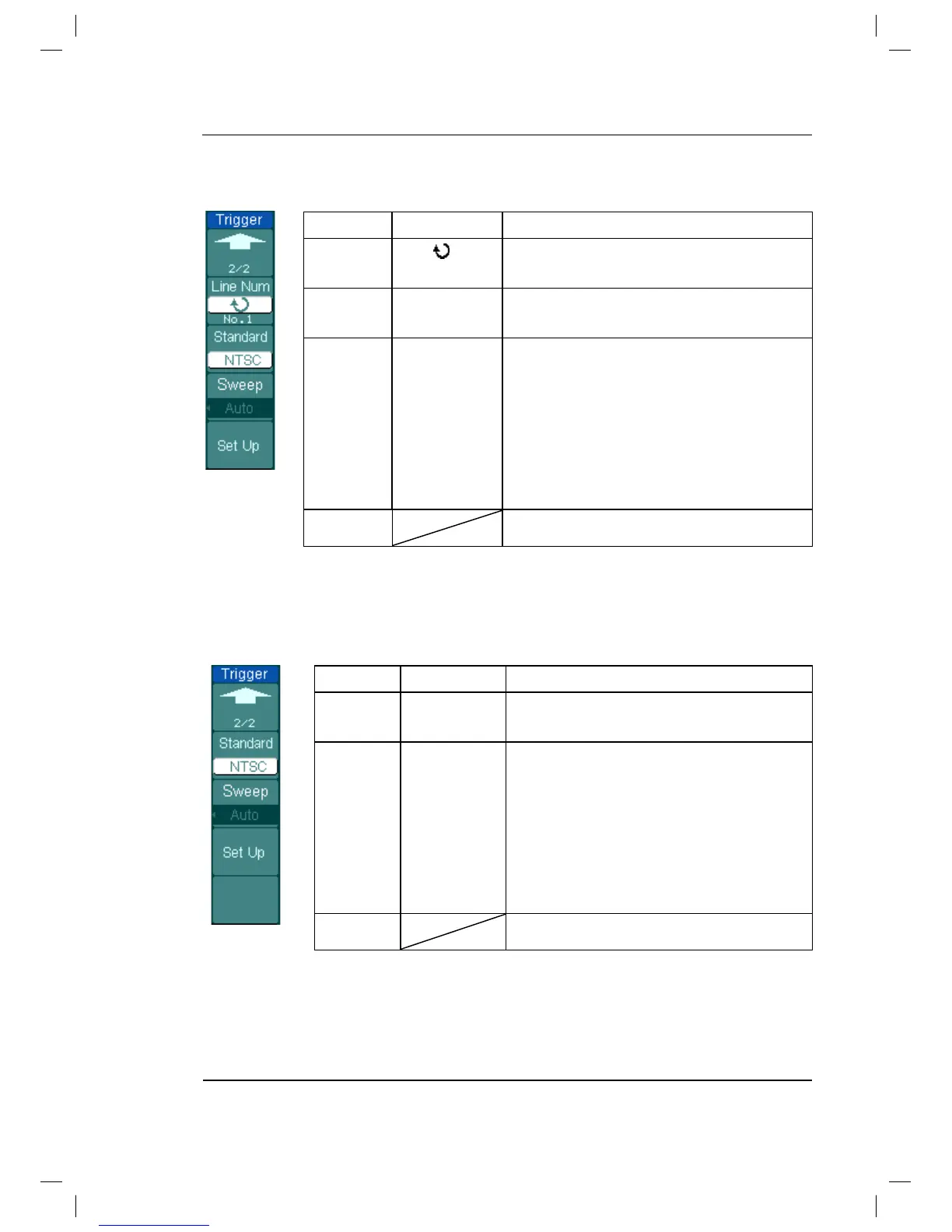

Figure 2-44 Table 2-25 The Video Trigger menu (Page 2/2 when Sync is set as the
specified line)
Figure 2-45 Table 2-26 The Video Trigger menu (Page 2/2 When the Sync is set as
All lines, Odd field and Even field)
Menu
Settings
Comments
Line Num
< Line sync >
Select the specified line number for sync.
Standard
PAL/SECM
NTSC
Select Video standard.
Sweep
Auto
Normal
Single
Force the oscilloscope to trigger in the
absence of trigger condition.
Lets oscilloscope to trigger in the
suitable trigger condition.
Lets oscilloscope to trigger one time in
the suitable t
rigger condition,
and then
stop.
Set Up
To g
o to set up menu, see Table 2-36.
Menu
Settings
Comments
Standard
PAL/SECAM
NTSC
Select Video standard.
Sweep
Auto
Normal
Single
Force the oscilloscope to trigger in the
absence of trigger condition.
L
ets oscilloscope to trigger in t
he
suitable trigger condition.
Lets oscilloscope to trigger one time in
the suitable trigger condition, and then
stop.
Set Up
To go to set up menu, see
Table 2-36.
