User’s Guide for DS1000B Series

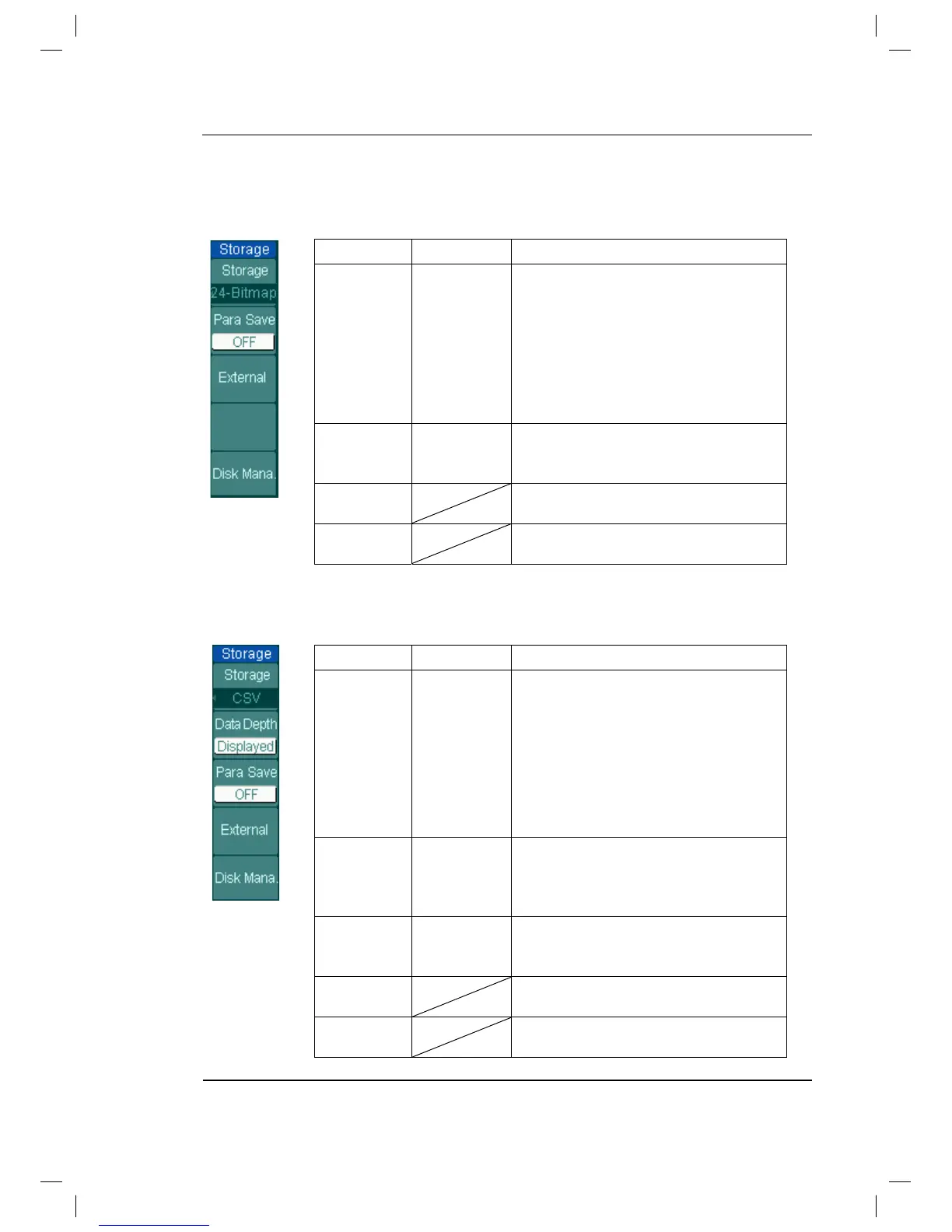

For bitmap, the menu is as follows:
Figure 2-72 Table 2-43 The Storage menu
Store or recall waveform.
Store or recall setups.
itmap files.
Create or delete 24bits Bitmap files.
Create or delete Portable Network
Graphics format files.
Create or delete CSV files.
Save the current oscilloscope
settings in different format with the
same file name.
Go to menu for external memory
operation (see Table 2-47).
Go to disk manage menu (see Table
2-48).
For CSV, the menu is as follows.
Figure 2-73 Table 2-44 The Storage menu
Waveform
Setups
8-Bitmap
24
-Bitmap
PNG
CSV
Factory
Store or recall waveform.
Store or recall instrument setups.
Create or delete 8bits bitmap files.
Create or
delete 24bits bitmap files.
Create or delete PNG format files.
Create or delete CSV files.
Save currently displayed waveform
data to CSV file.
Save the whole waveform data in
memory to CSV file.
Save the current oscilloscope
settings in different format with the
same file name.
Go to menu for external memory
operation (see Table 2-47).
Go to disk manage menu (see Table
2-48).
