RIGOL Chapter 7 Protocol Decoding
7-34 DS4000E User’s Guide
8. Adjust the vertical offset
Press Offset and turn the multi-function knob to adjust the vertical position
of the bus. Pressing the knob can quickly reset the vertical offset (zero).
9. View the event table
The event table displays the detailed information of the decoding in table form
to view relatively longer decoded data.
Note: You can only view the event table and export the decoded data when the
display of the corresponding bus is turned on.
When BusStatus is set to “ON”, press Event Table to enter the event table
submenu. In this submenu, you can perform the following operations.

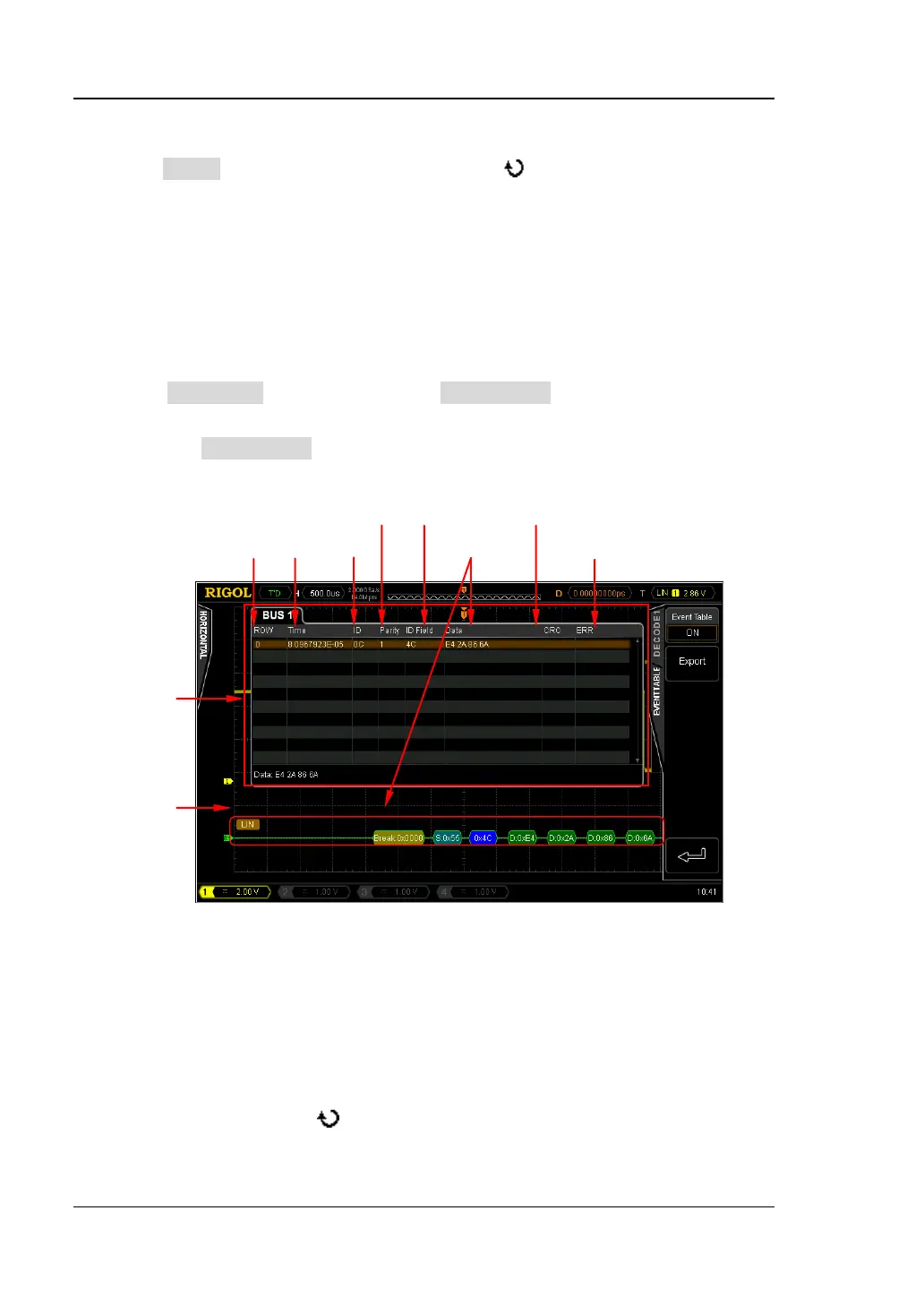

1) Press Event Table to turn on or off the event table. When the event table
is turned on, the interface is as shown in
Figure 7-8.
Figure 7-8 LIN Decoding
The event table displays the detailed decoding information (include the
decoded data as well as the corresponding line number, time, frame ID,
Parity, ID Field, cyclic redundancy check (CRC) and Error of the waveform on
the screen in time order. At most 10 lines of decoding information can be
displayed on one page (the line number starts from 0). You can turn the
multi-function knob
to select the specified line and view the
corresponding decoding information. The line currently selected is
Line Number
Time
Decoded Data
LIN Bus
Event
Table
Frame ID
ID Field Cyclic Redundancy Check
Error
Parity
To Next Page
