rotation amplitude of the outer knob, the faster the variations in the values.) The
adjustable range is from 10 kb/s to 1 Mb/s.
Sample Point:

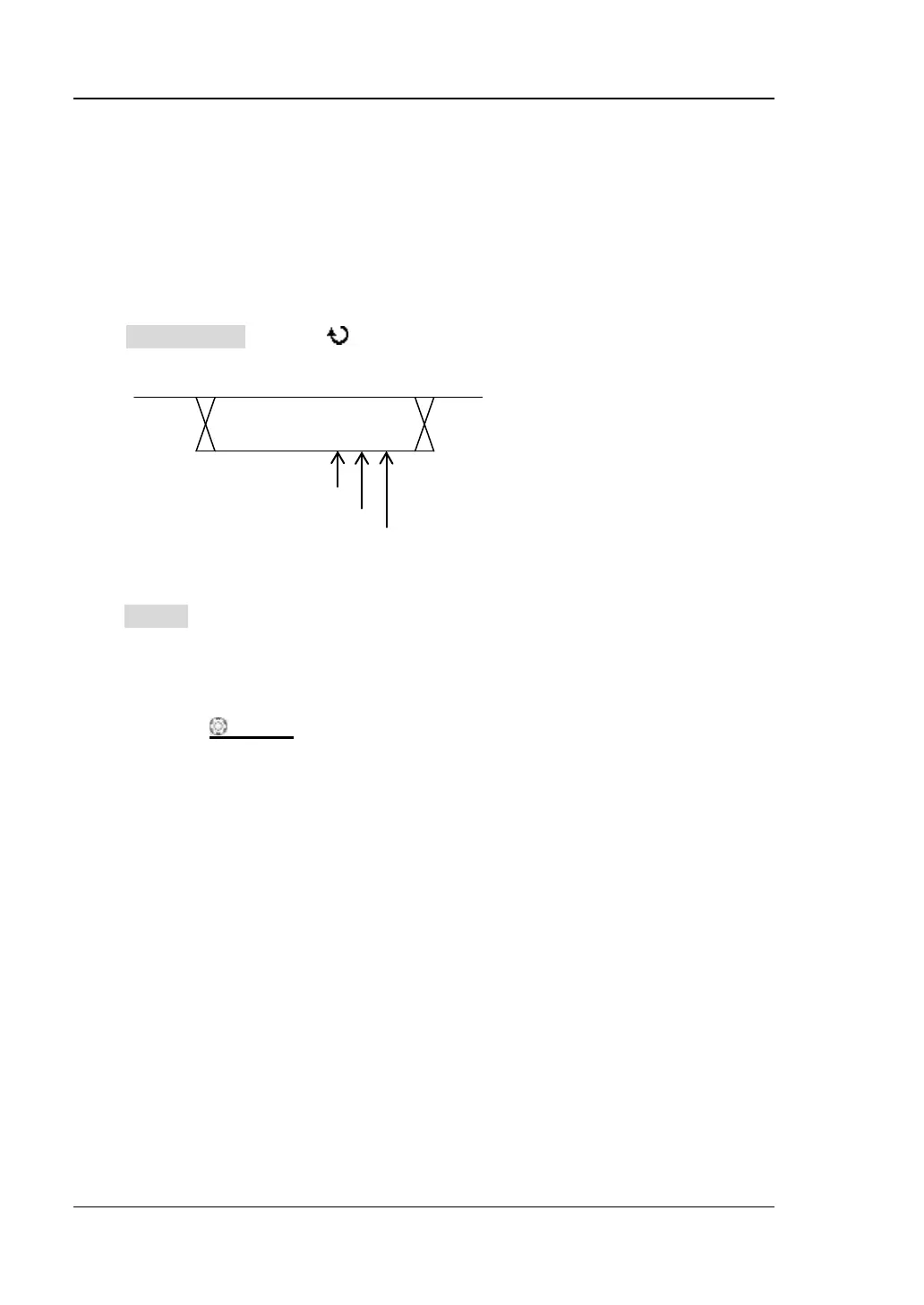

Sample point is the point within the bit time. The oscilloscope samples the bit level at
this point. The sample point position is represented by the percentage that the "time
from the start of the bit to the sample point" takes up in the "bit time".
Press SamplePoint and use to modify the parameter with the step as 1% and
the range is from 5% to 95%.
Trigger Mode:
Press Sweep to select the Trigger Mode (page 5-3) under this trigger type as auto,
normal or single. The corresponding status light of the current trigger mode turns on.
Trigger Level:
Use TRIGGER
LEVEL to modify the level. For details, please refer to the
description of Trigger level on page
5-8.
1Bit
60%
70%
80%
