Rigol DSA1000 Series

RIGOL Measurement Examples
3-30 User’s Guide for DSA1000 Series

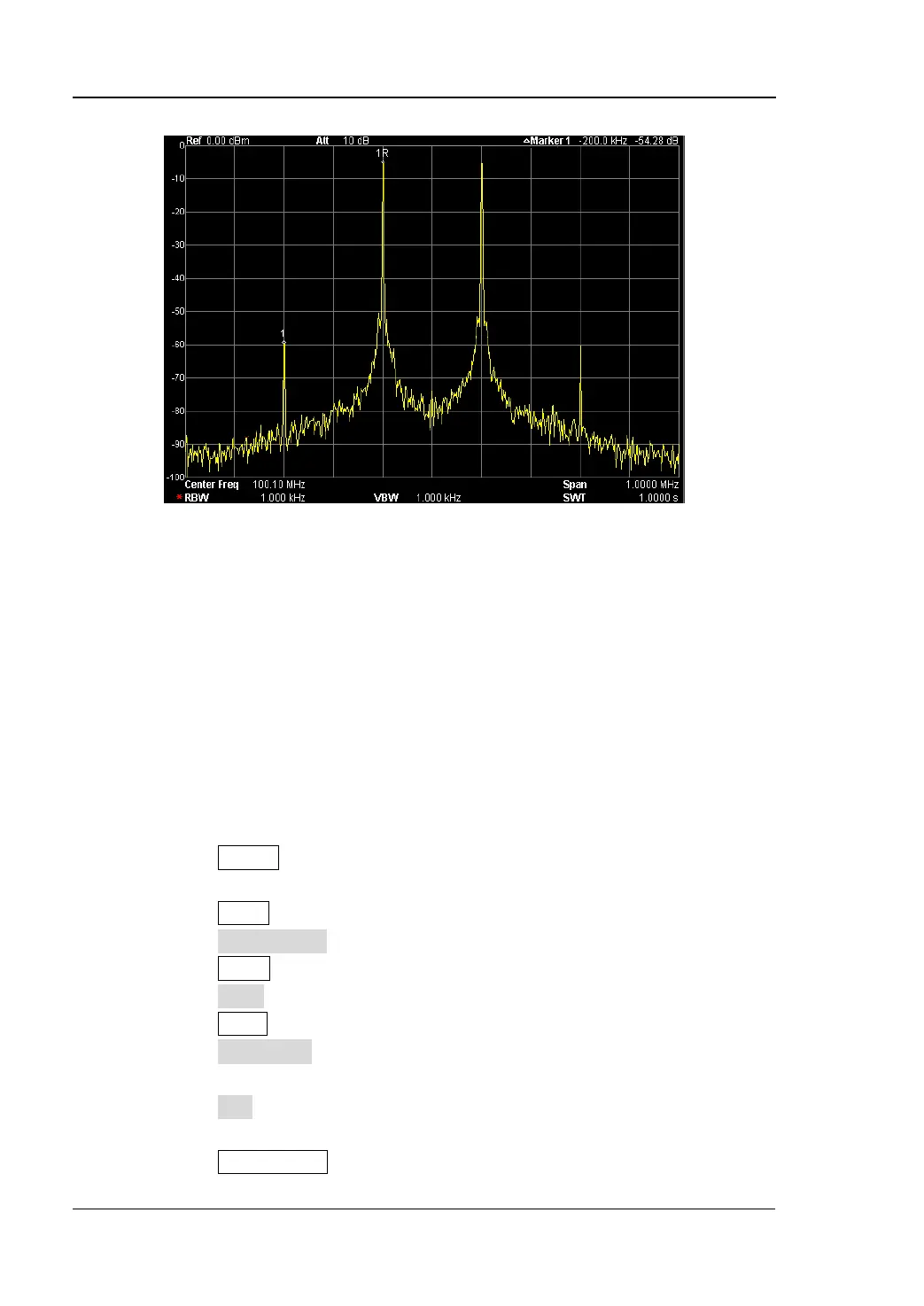

Figure 3-14 Use marker function to measure TOI distortion
Method 2: (Use TOI function to measure)
Procedures:
1. Device attachment
Connect the output terminals of generators 1&2 to the RF INPUT 50Ω terminal
on the front panel of the analyzer through a power combiner.
2. TOI function to measure
(1) Reset the analyzer
－Press Preset
(2) Set the parameters
－Press FREQ
－Press Center Freq and enter 100 MHz.
－Press SPAN
－Press Span and enter 1 MHz.
－Press Meas
－Press Meas Fctn and enter the lower menu.
－Page down
－Press TOI
(3) Modify the TOI settings
－Press Meas Setup
