Measurement Examples RIGOL
User’s Guide for DSA1000 Series
3-33
No. Upper Ampl Connected No. Lower Ampl Connected
1 95 MHz -55 dBm No 1 95 MHz -75 dBm No
2 99 MHz -55 dBm Yes 2 105 MHz -75 dBm Yes
3 99.5 MHz -5 dBm Yes
4 100.5 MHz -5 dBm Yes
5 101 MHz -55 dBm Yes
6 105 MHz -55 dBm Yes
(4) Turn on the test
－Press Meas Setup
－Press Limit and select Upper.
－Press Test and select On.
－Press Limit and select Lower.
－Press Test and select On.
3. Measurement result
The measurement results shown in the lower window are:
P: Pass
278: pass number
100%: P/F Ratio
See figure below.

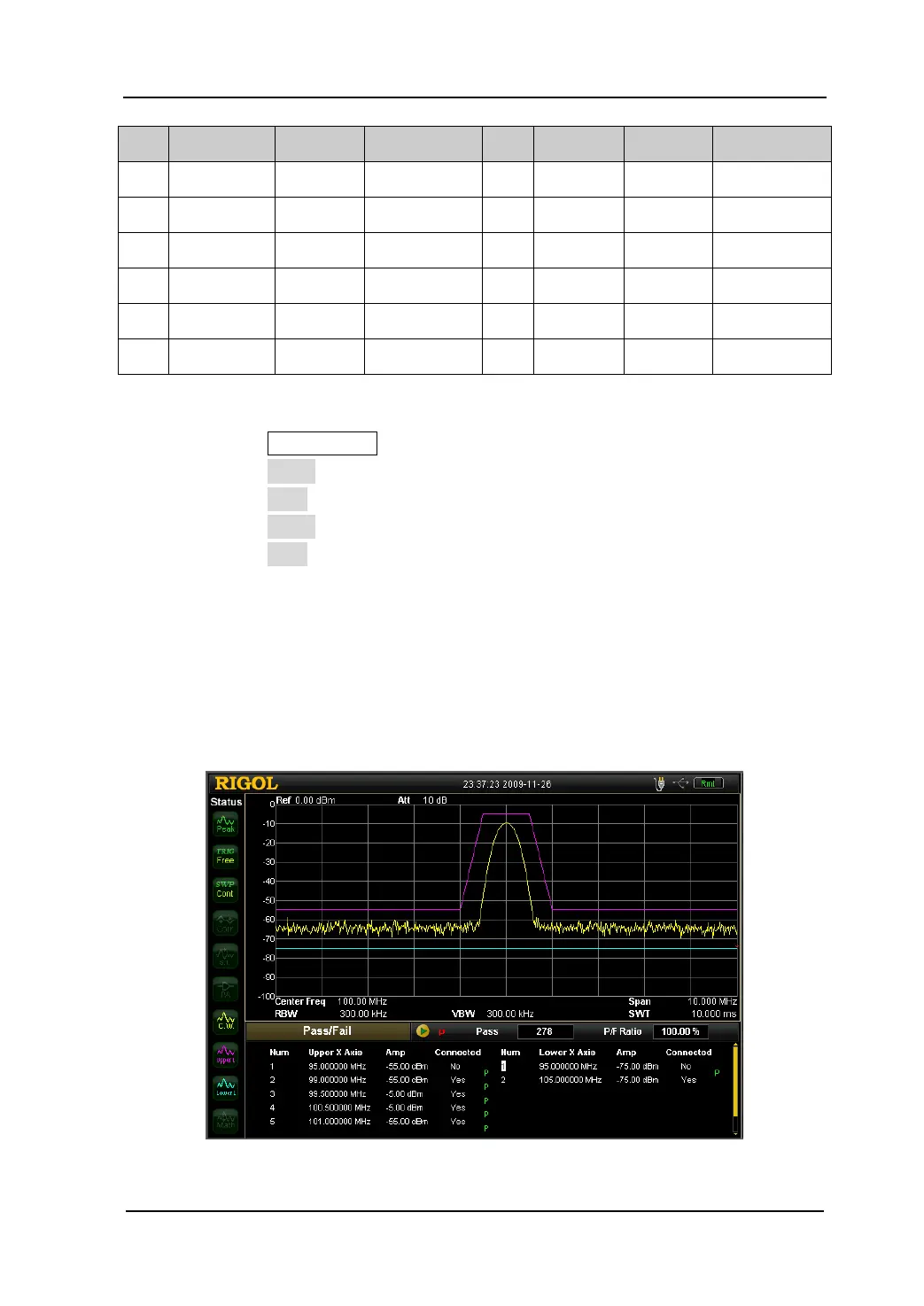

Figure 3-16 Pass/Fail testing
