Rigol DSA1000 Series User Manual

Quick Start RIGOL
User’s Guide for DSA1000 Series
1-11

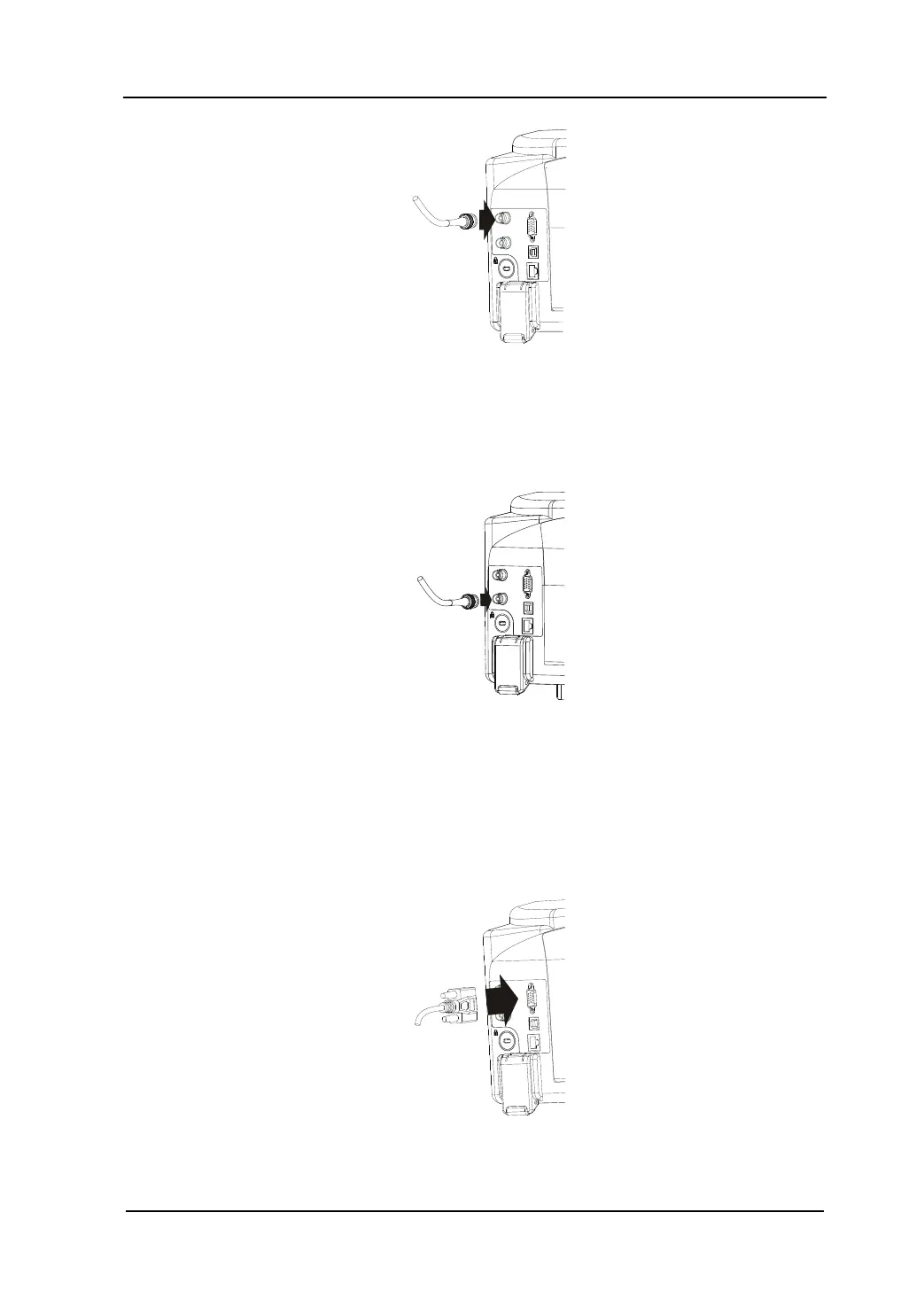

Figure 1-8 TRIGGER IN connection
4. 10MHz IN/OUT
The BNC input or output of the 10 MHz reference clock, see figure below.
Figure 1-9 10 MHz IN/OUT connection
5. VGA port
This port provides a VGA signal output which is used through a VGA cable, see
figure below.
Figure 1-10 VGA port connection

Rigol DSA1000 Series Specifications

General

Brand	Rigol
Model	DSA1000 Series
Category	Measuring Instruments
Language	English
