Rigol DSA1000 Series User Manual

RIGOL Measurement Examples
3-26 User’s Guide for DSA1000 Series
The “Ref” of the marker is placed at the fundamental wave while the
“Delta” is at the third harmonic. The measured value would be: the
frequency offset is 200 MHz and the amplitude difference is -40.45 dB.
3. Measurement result
The fundamental wave and harmonics are shown in the figure below.

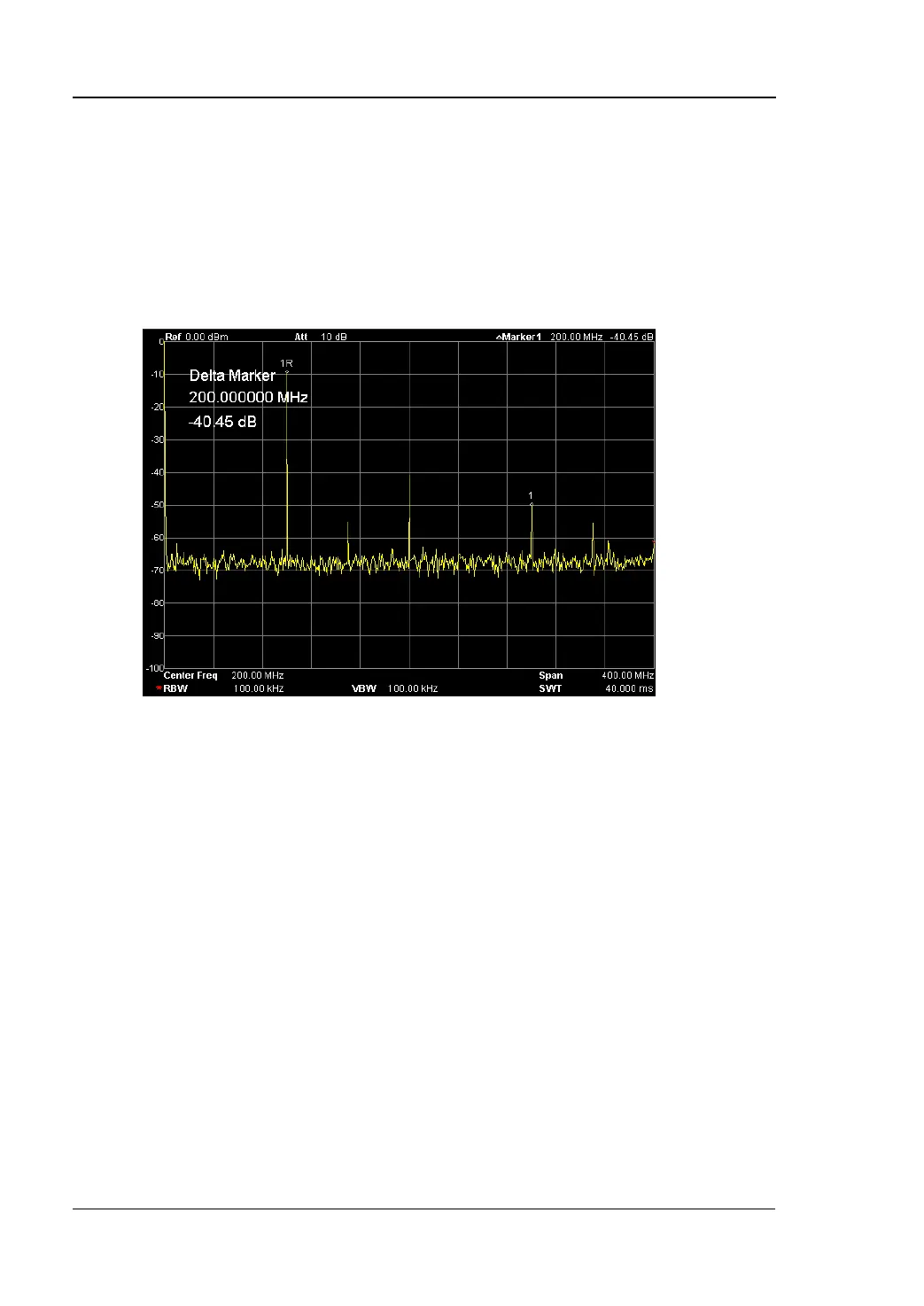

Figure 3-12 Use marker to measure harmonics
