Linear installation guide 13563-B 02-19 | 17

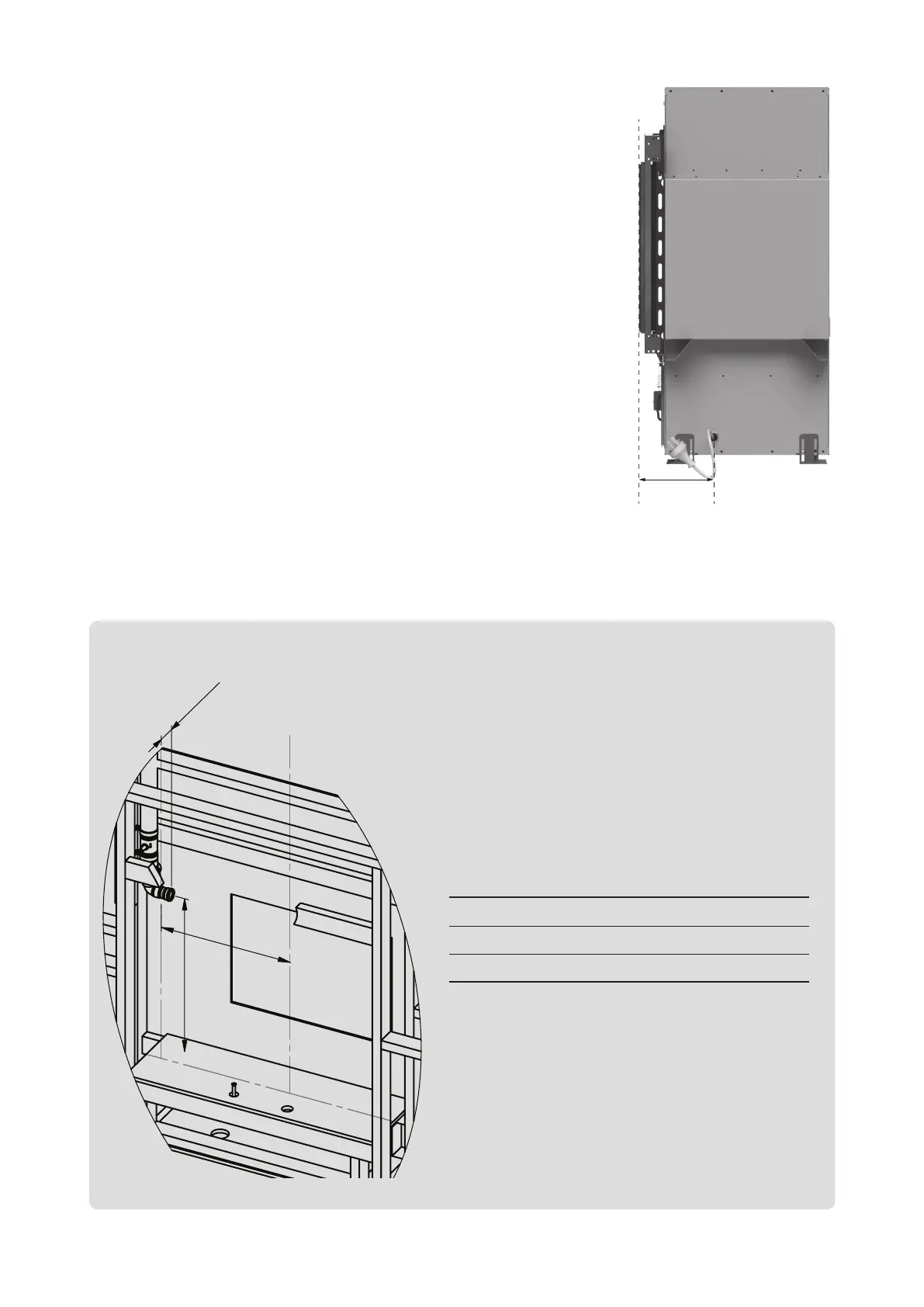

This heater has a 1.5 m power cord with a three pin plug supplied.
The power cord passes through a slot in the front right hand side of
the appliance, approximately 140 mm from the front of the unit.
Rinnai recommend the heater be plugged into a 230 V, 10 A
earthed power point. The power point must not be above the heater.
Alternatively the appliance can be direct wired if the power supply is to
be concealed. Consult a qualied electrician if direct wiring is required
as it must comply with AS/NZS 5601.1 and AS/NZS 3000 and other
relevant local regulations
approx.
140 mm
The below diagram highlights the position of the ue terminal in relation to the glass centreline
B
100 mm
A
Glass centreline
Linear 800 Linear 1000 Linear 1500
A 655 mm 755 mm 1005 mm
B 800 mm 575 mm 575 mm
Electrical supply
Flue terminal position
