Linear installation guide 13563-B 02-19 | 27
Check the Wi-Fi connection
When the power is on the Wi-Fi LED should ash and then turn a solid red to indicate everything is
ready for setup via a smart device
1
. Go through the app sequence with the homeowner, if they are
available, as part of the installation process is testing the Wi-Fi connectivity and correct operation
of the re with the homeowner. The Wi-Fi app is available on:
- Google Play > search Rinnai re app
- Apple app store > search Rinnai re app
Summary of how the app works
1. Wi-Fi module in the re, once installed and has power connected, is on.
2. Homeowner downloads the Rinnai Wi-Fi app on their smart device.
3. Through the app, the Wi-Fi in the re links (pairs) to the homeowners smart device.
4. Homeowner, through the app setup process, then links the Wi-Fi in the re to the Wi-Fi router
in the home—this essentially makes the smart device the replace controller.
If unable to connect, the Wi-Fi board must be reset by pressing down on the metal tab above the

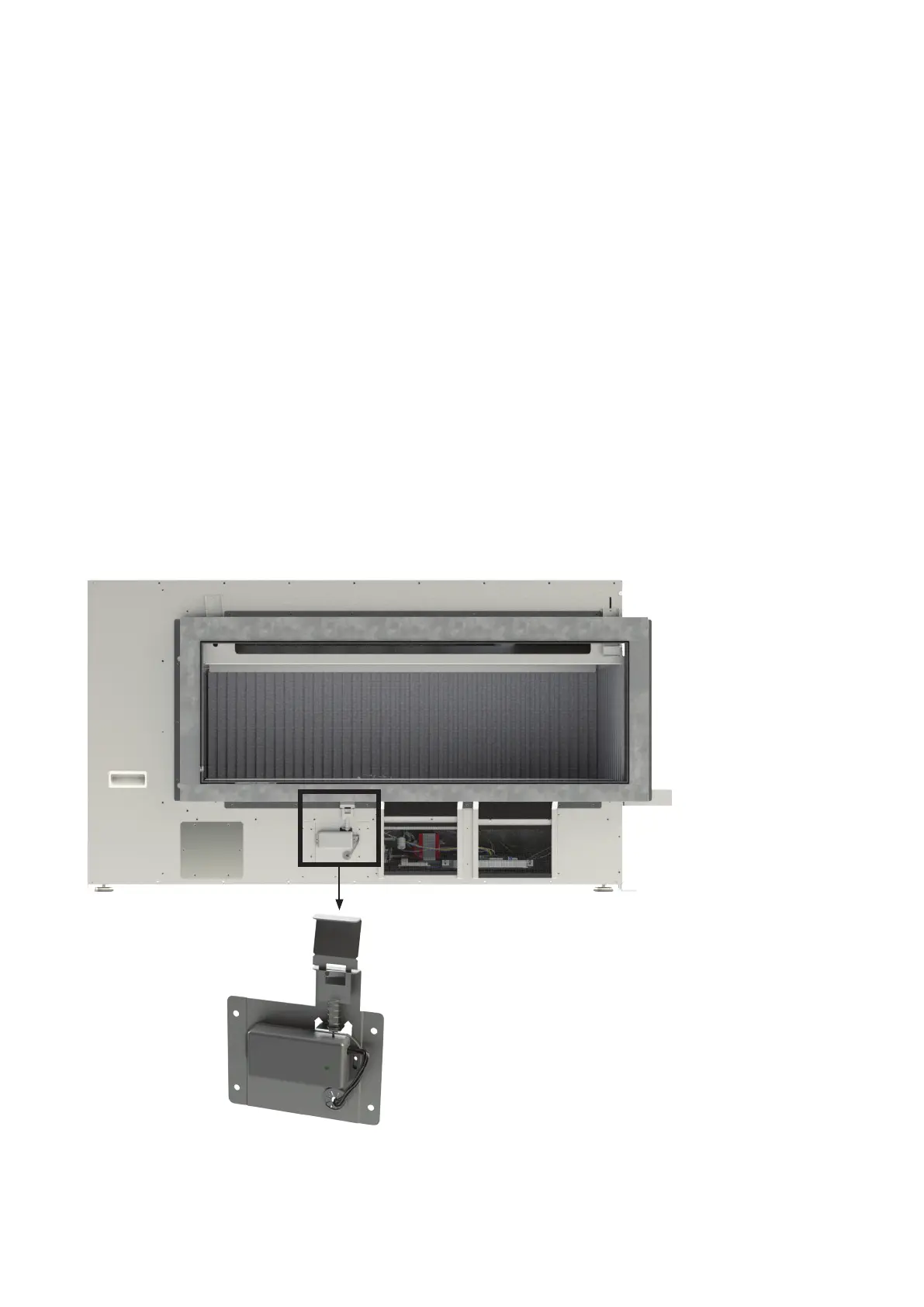

Wi-Fi assembly on the unit. The image below highlights where the Wi-Fi assembly is positioned.
If this doesn’t work switch the power off and then back on again to reset the re—try a couple of
times if it doesn’t work the rst time.
Wi-Fi assembly—press down on the metal tab to reset.
The tab sits on a spring loaded pin that when pushed
will reset the Wi-Fi module in the re.
1
On initial startup the Wi-Fi module in the re scans the Wi-Fi network, if at rst it doesn’t work it will only scan again after ten minutes.
