Linear installation guide 13563-B 02-19 | 19
Removing the glass panel
The glass front sits in a narrow channel at the bottom of the re and is held in place by glass
retainer latches positioned at the top, either side of the unit (the 1500 model has an extra glass
retainer latch in the center).
1500 glass panel weighs 6.8 kg
To remove the glass:
1. Using a screwdriver, loosen the three screws holding the louvre in place, remove the louvre,
and then remove the screws (so the glass can come out)—put the louvre to one side.
2. Push the top glass retainer latches up and slightly to one side to
release the top section of the glass.
3. Using the frame tabs at the top of the glass frame, lift up and gently
slide to the right and rotate the glass until the left section comes free,
then move the glass panel to the left to remove the right section.

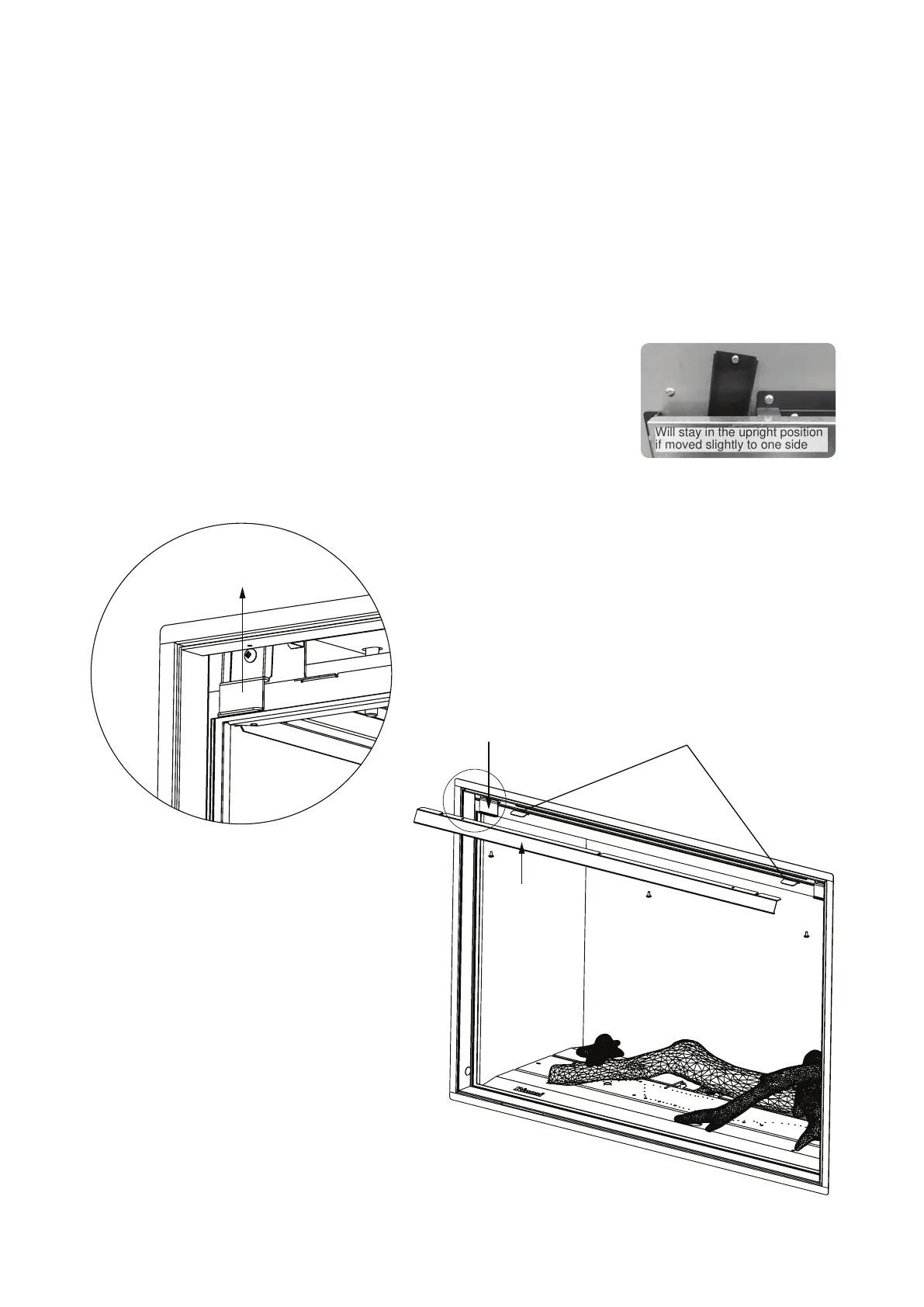

Glass retainer latch
Louvre
Glass frame tabs
Push up the latch and to the
side to release the glass
Will stay in the upright position
if moved slightly to one side
To Next Page
