Rinnai Linear Series Installation Guide

6 | Linear installation guide 13563-B 02-19
The centre of the glass is NOT the centre of the appliance.
Depth dimension is the same for all models.
425 min.
singled sided
425 face-to-face
double sided
966 ± 5 mm
Adjustable feet on all models
741 ± 5 mm
1245 mm
1435 mm
1935 mm
726 mm 519 mm
816 mm 619 mm
1066 mm
869 mm
Glass dimensions
800 800 x 505 mm
1000 1000 x 280 mm
1500 1500 x 280 mm
741 ± 5 mm

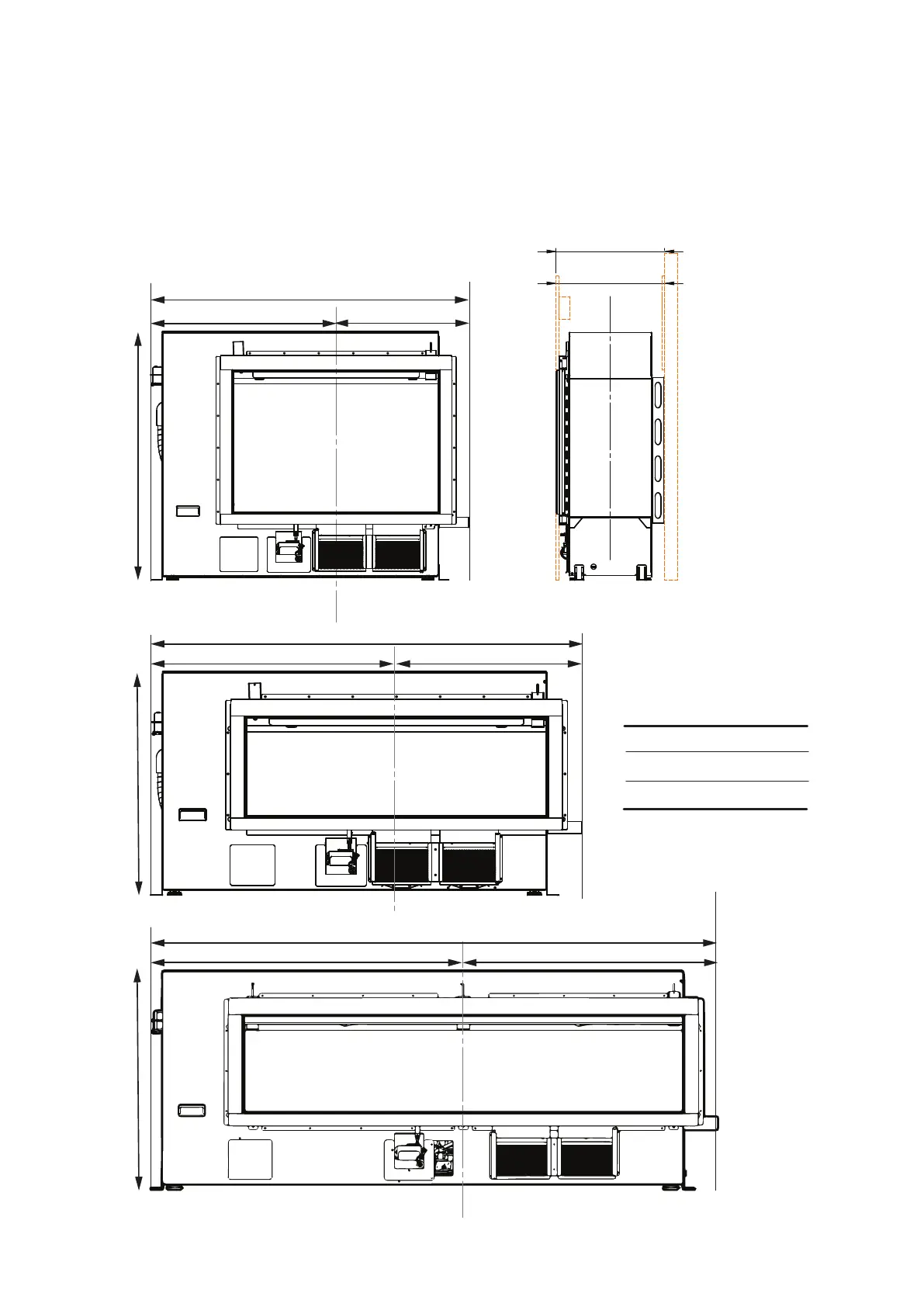

Unit dimensions (mm)
