18 | Linear installation guide 13563-B 02-19

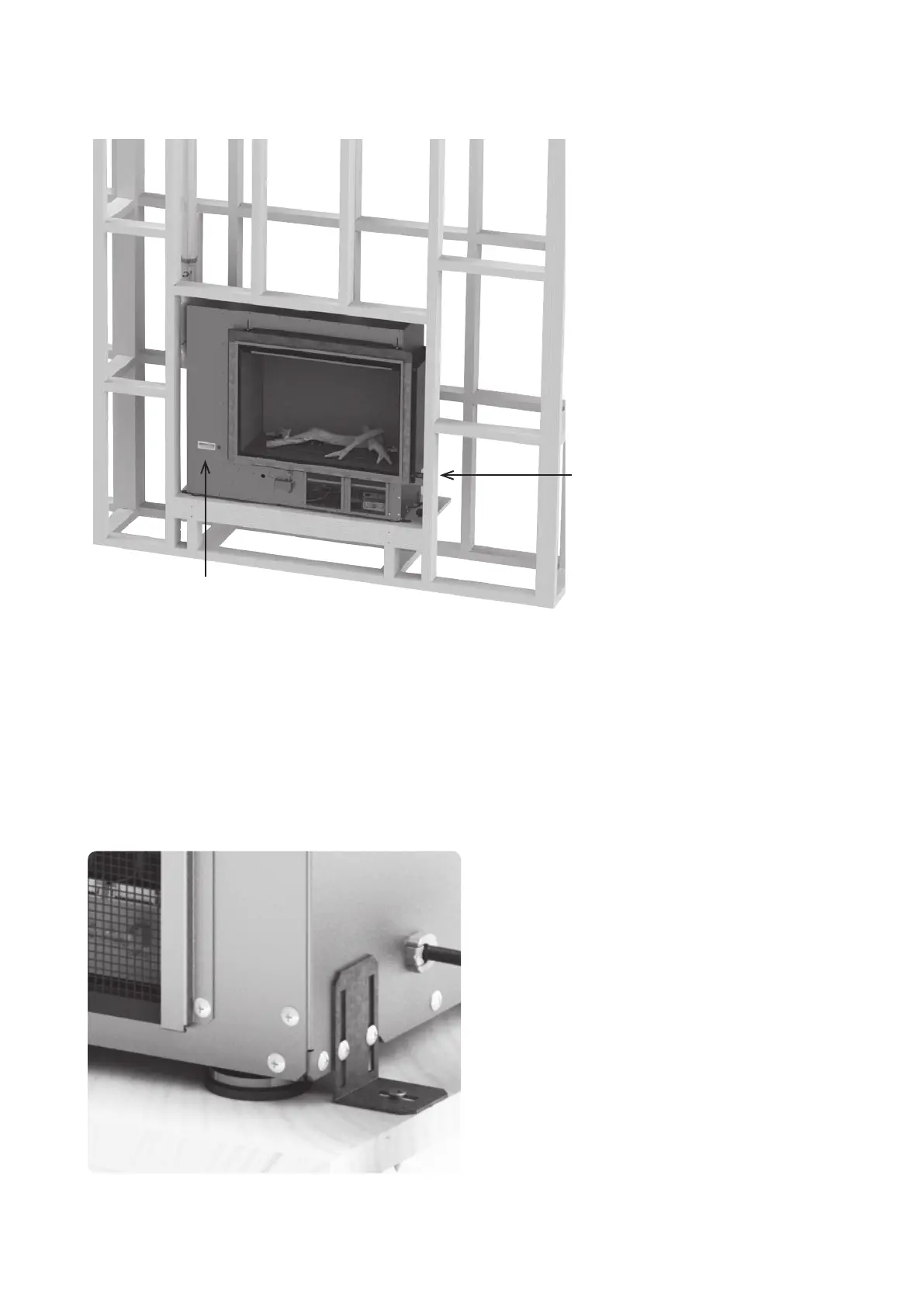

Using the handholds (white slots LHS and carry bars RHS), carefully lift and slide the Linear into
the enclosure and position in place.
Adjustable feet
Use the feet on all corners of the unit to adjust the re so that it is level. The feet are adjustable.
Having the unit level is critical to the installation, so the wall lining can be installed ush with the
lips of the appliance.
Seismic brackets
Once level secure the Linear to the bottom of the cavity using the four seismic brackets.
Hand hold
Carry bar position, two carry bars
Installing the Linear into the cavity
To level the unit and not affect where the feet go, the
seismic brackets need to be elevated before the unit is
installed into the cavity
