42 | Linear installation guide 13563-B 02-19
Air hose connection
This step in the installation is critical. If the connections are not secured properly, products
of combustion could disperse into the room being heated.
The Linear comes with one end of the exible air hose already connected to the Linear air inlet.
Attach the other end of the air intake hose to the connection on the flue, either the ASPDFK or the
EVOKIT03.
Connect the flue into the Linear combustion fan exhaust, and secure in place (two screws) with the
flue lock bracket (supplied in the plastic bag with the remote control).
Secure the air intake hose on the ue with the cable tie (supplied in the plastic bag with the remote
control), and ensure the rubber cap is in place on the unused air intake.

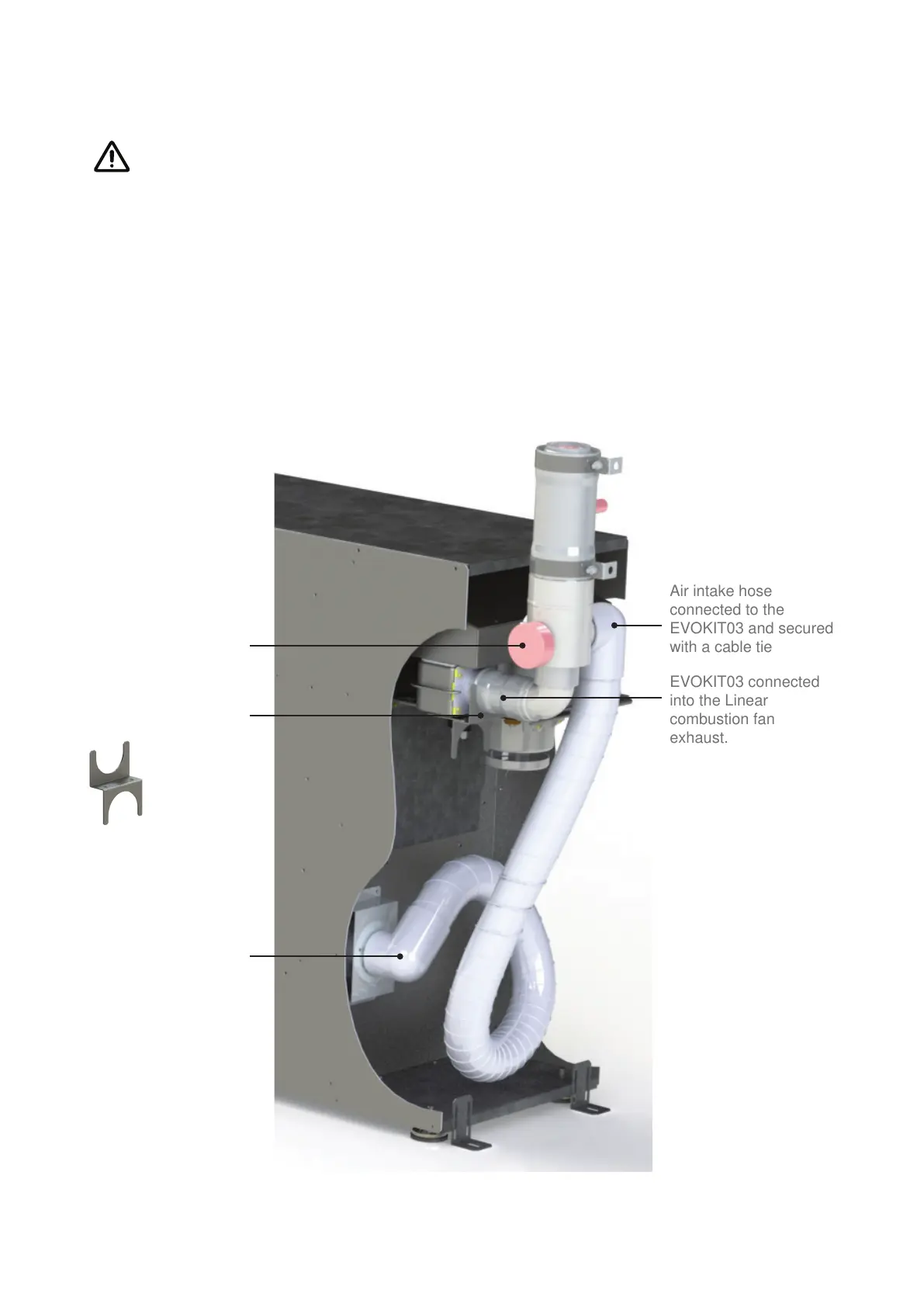

WARNING
This end of the exible
air hose comes already
connected to the air
inlet.
Rubber cap placed on
the unused air intake
Air intake hose
connected to the
EVOKIT03 and secured
with a cable tie
Flue lock bracket
holding the EVOKIT03
in place.
EVOKIT03 connected
into the Linear
combustion fan
exhaust.
