Rinnai Linear Series Installation Guide

8 | Linear installation guide 13563-B 02-19

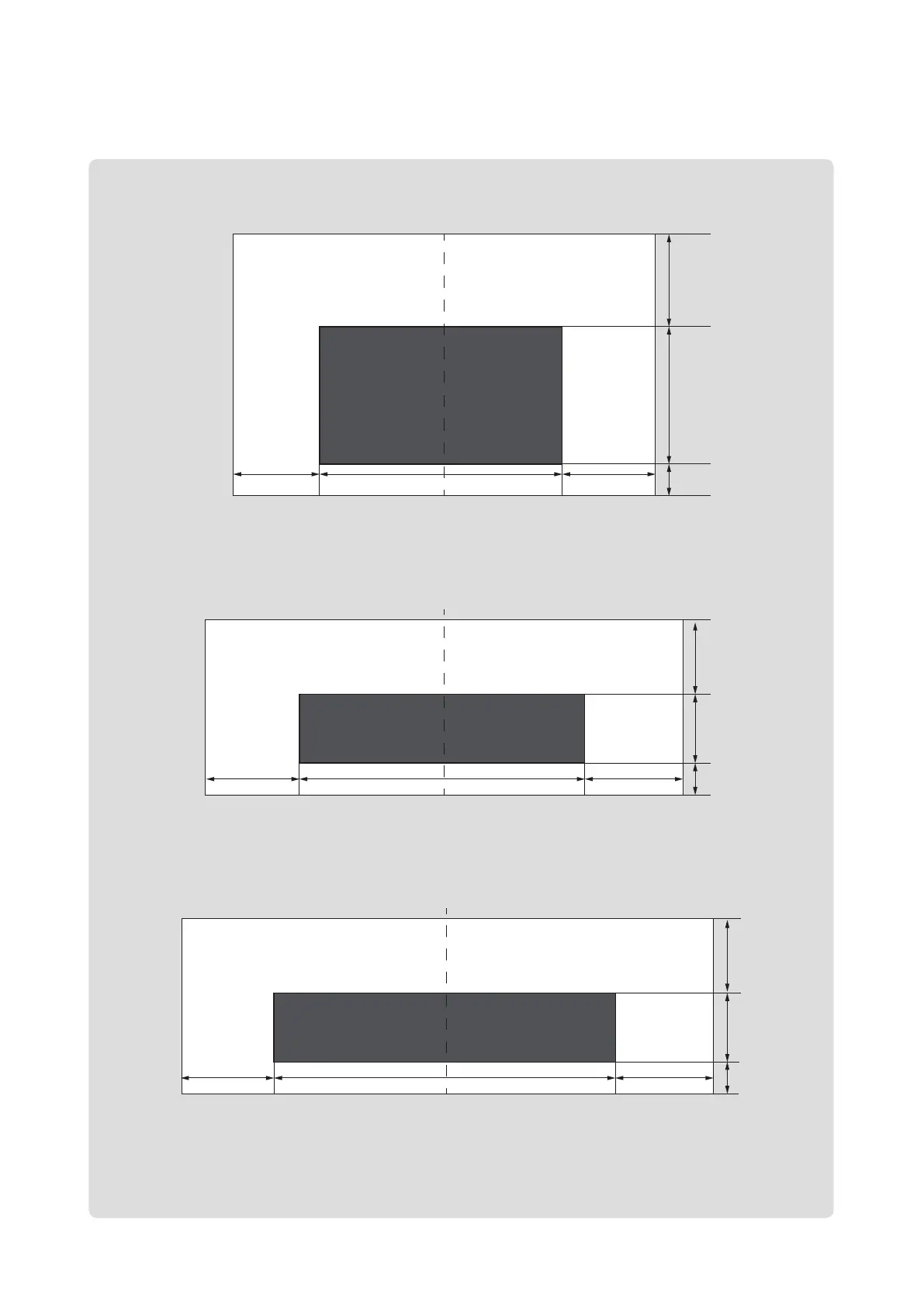

The below diagrams are to assist in determining the full clearance area around the
Linear.
1600
1157-1167
800
Glass width
400
Clearance
400
Clearance
257 ± 5*
505
Glass height
400
Clearance
* Adjustable
firebox feet
1800
932-942
1000
Glass width
400
Clearance
400
Clearance
257 ± 5*
280
Glass
height
400
Clearance
* Adjustable
firebox feet
2300
932-942
1500
Glass width
400
Clearance
400
Clearance
257 ± 5*
280
Glass
height
400
Clearance
* Adjustable
firebox feet
