Page 24 DCN 4727 REV 6 Doc No. C29115

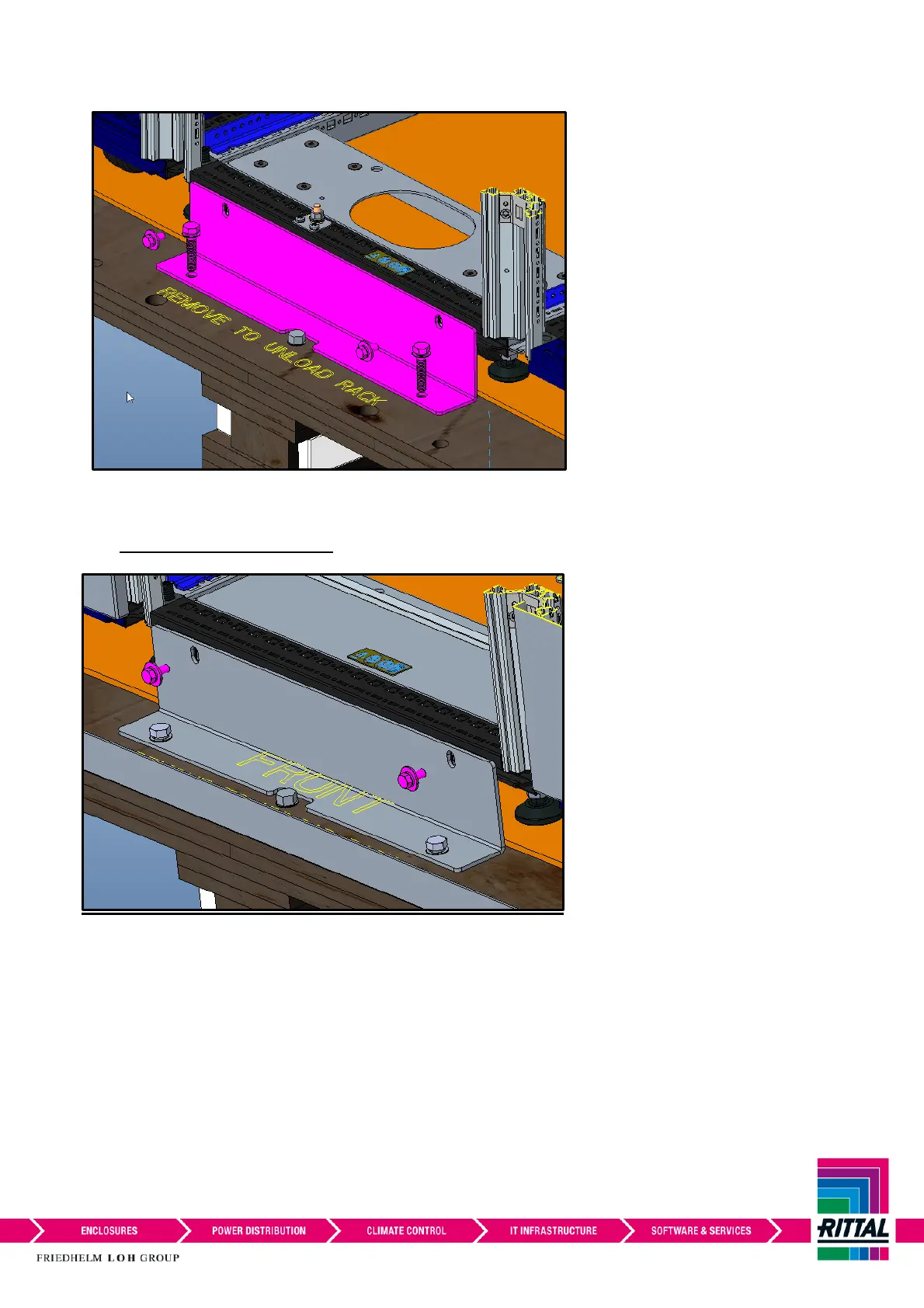

6. Remove rear centre bolt down bracket, 2x M8 Hex head fixings and 2x M10 Hex head fixings.
7. Remove 2x M8 Hex head fixings from front bolt down bracket.
The rack is now free to move
