Rittal 7844440 - Front Door Installation Kit

Page 36 DCN 4727 REV 6 Doc No. C29115
Front Door Installation Kit
Caution
WORKING WITH RACK
• This rack is easily tipped, ensure rack is secured.
• Instructed or Skilled persons to handle rack only.
• People handling the rack must wear PPE in accordance with local risk assessments and local
regulations.
Failure to follow these instructions can result in injury or equipment damage.
WARNING
MANUAL HANDLING & TRIP HAZARD
• Due to size and weight of the rack doors and cladding, never attempt to remove or install them by
yourself.
• When storing doors, lay the doors flat so they do not fall over, causing accidental injury.
Failure to follow these instructions can result in injury or equipment damage.

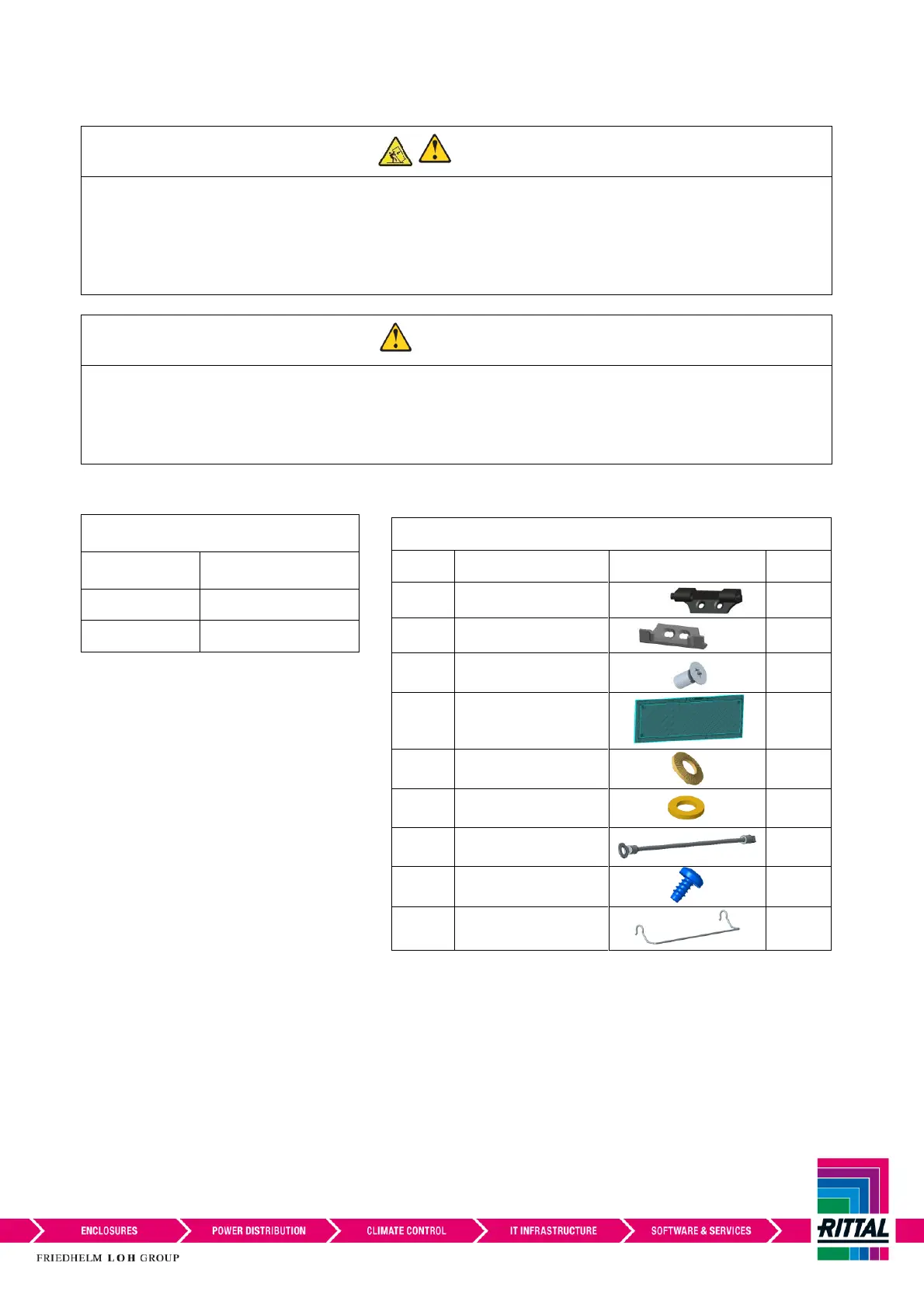

Contents List
Item
Description
Qty.
1
Hinge
4
2
Lock catch
4
3
Screw M6x10mm
CSK
8
4
Front Door
Assembly
1
5
Serrated Contact
Washer
1
6
Plain Washer
1
7
Grounding Wire
1
8
Screw 5.5x10
1
9
Hinge Clip
4
Door Accessory Kit
Part No
Description
7844163
42U Front Door Kit
7844152
48U Front Door Kit
