Page 35 DCN 4727 REV 6 Doc No. C29115

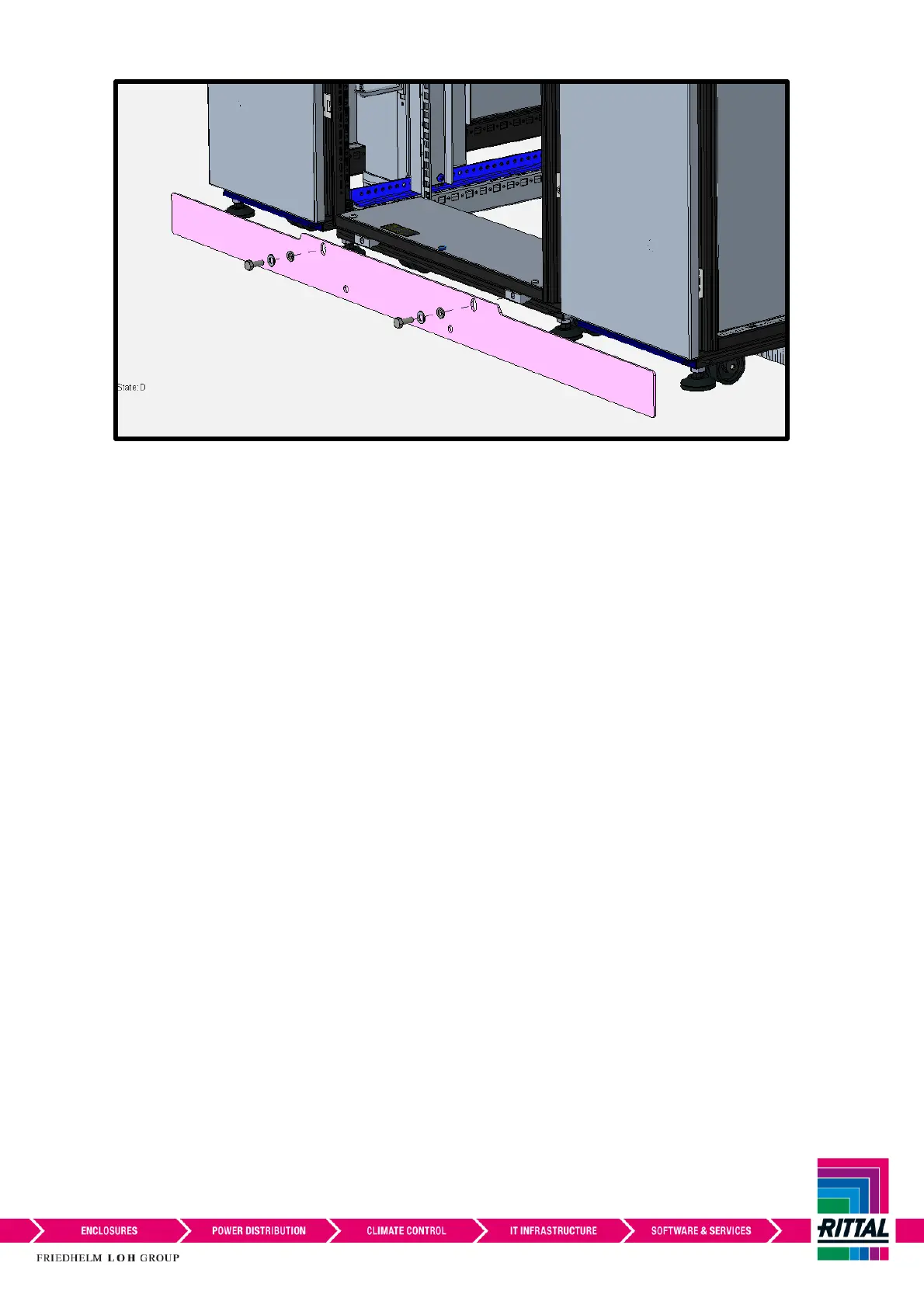

Fit baffle to front of rack as shown with 2 off M8 bolts, flat and spring washers using
13mm socket drive. Torque to 12Nm.
