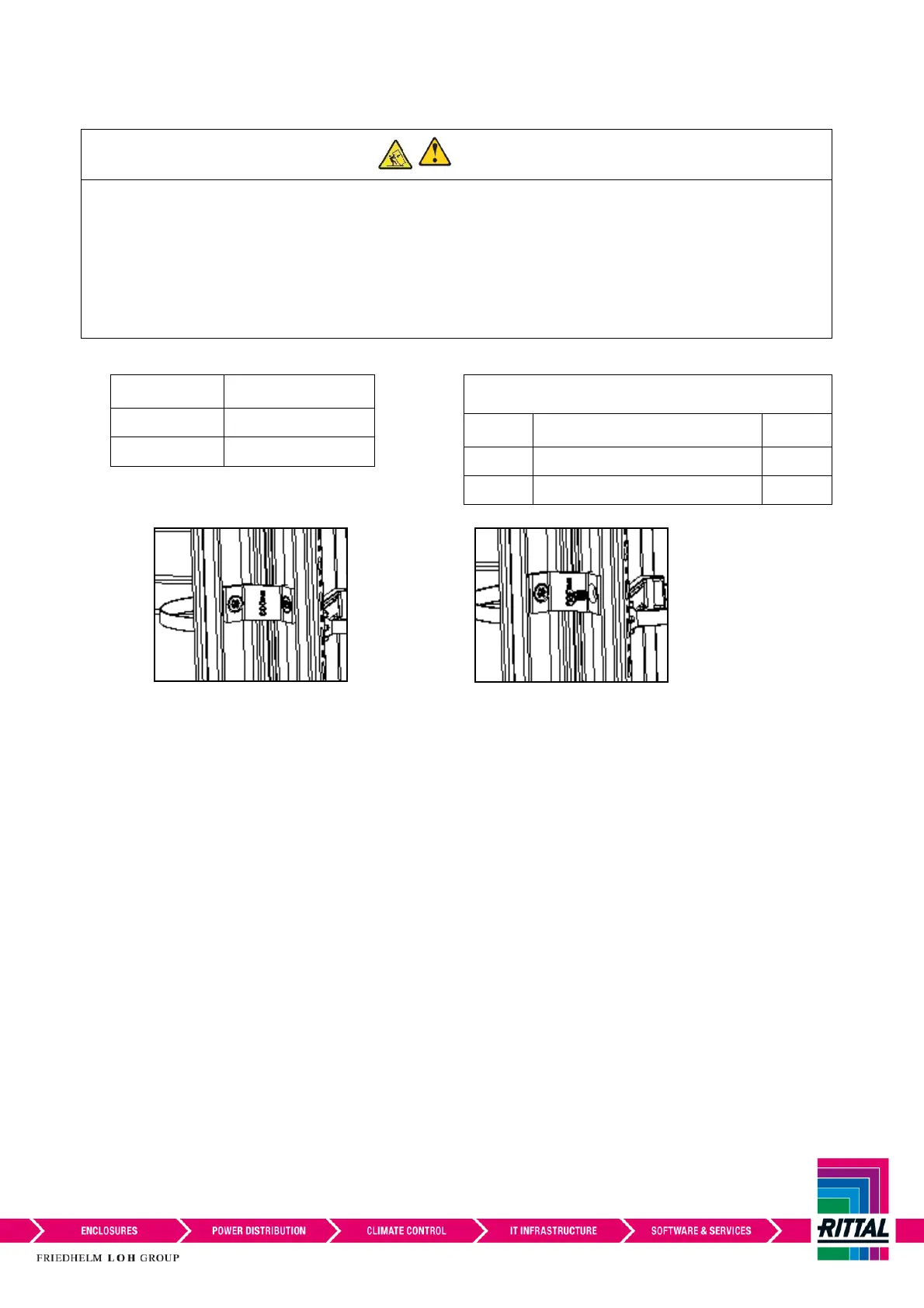

Page 32 DCN 4727 REV 6 Doc No. C29115
Standard Baying Method - Baying Kit
To be installed after bolt down.
USING T30 TORX DRIVE TORQUE TO 6Nm.
Baying method installation at front of the rack shown, repeat on rear. A total of 6 brackets to be
installed.
Note. 2 kits are available. These kits look very similar but set the pitch of the racks at either 600mm or
24”.
TIP / HEAVY EQUIPMENT
• This rack is easily tipped. Use extreme caution when handling.
• Joining racks provides limited stability to the racks.
• Instructed or Skilled persons to handle rack only.
• People handling the rack must wear PPE in accordance with local risk assessments and local
regulations.
Failure to follow these instructions can result in death, serious injury or equipment
damage.
