Page 31 DCN 4727 REV 6 Doc No. C29115
1. Use bolt-down plate template above to fix floor plates to data centre floor. This must be done
before the rack is put into place. Use appropriate floor fixing bolts (depending on floor material).
2. Move rack into location.
3. Follow levelling procedure.
4. Fix the bolt-down frame plate with four off M8x20 bolts on both front and rear of rack using 13mm
socket drive. Torque to 12Nm.

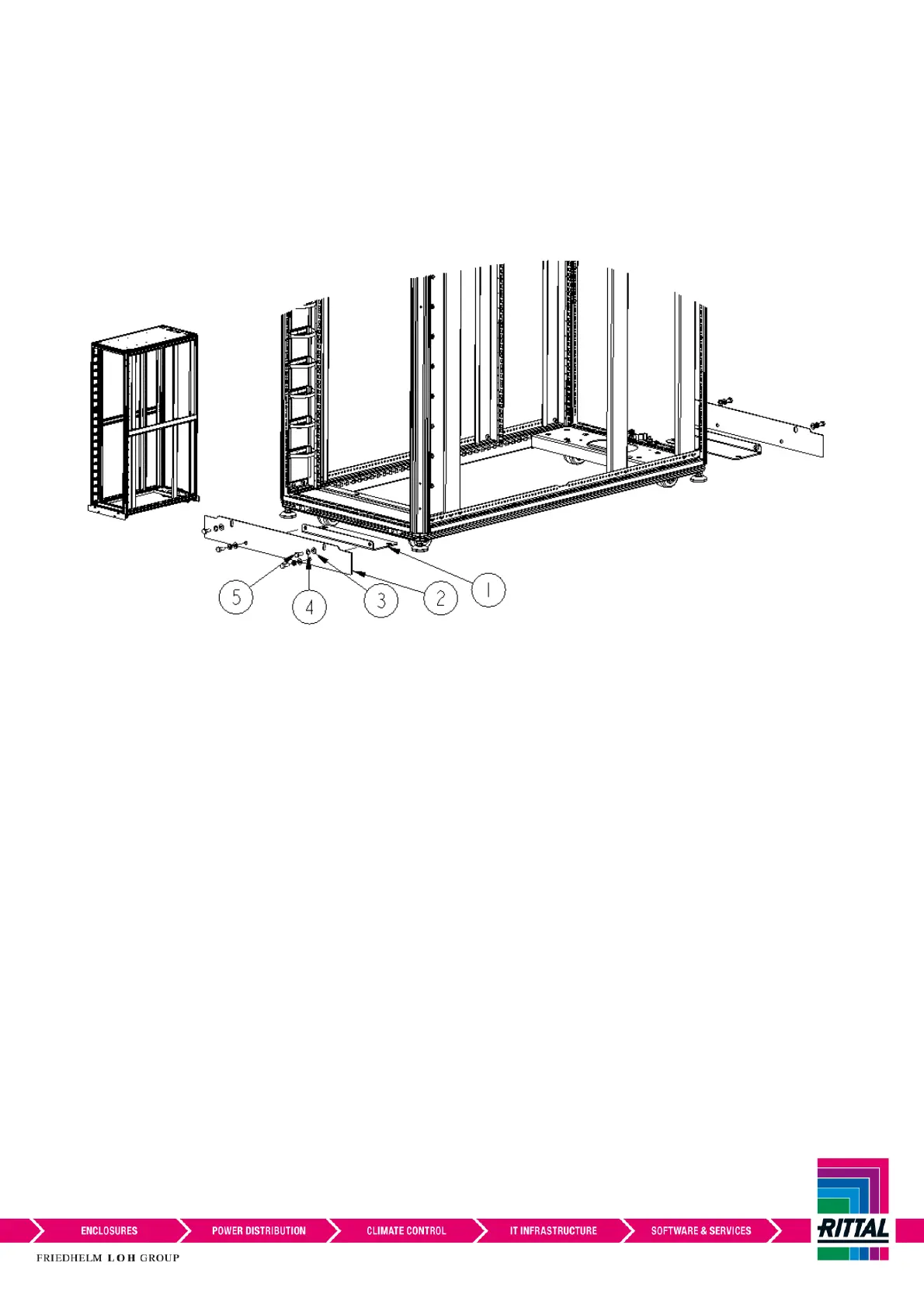

Securing rack to Bolt-down plate.
Please note images are for visual representation only and may differ from actual rack, but process remains
the same.
