HAZARD OF ELECTRIC SHOCK
• Connection of the rack to building Common Bonding Network (CBN) is required.
Failure to follow these instructions can result in death, serious injury or equipment
damage.

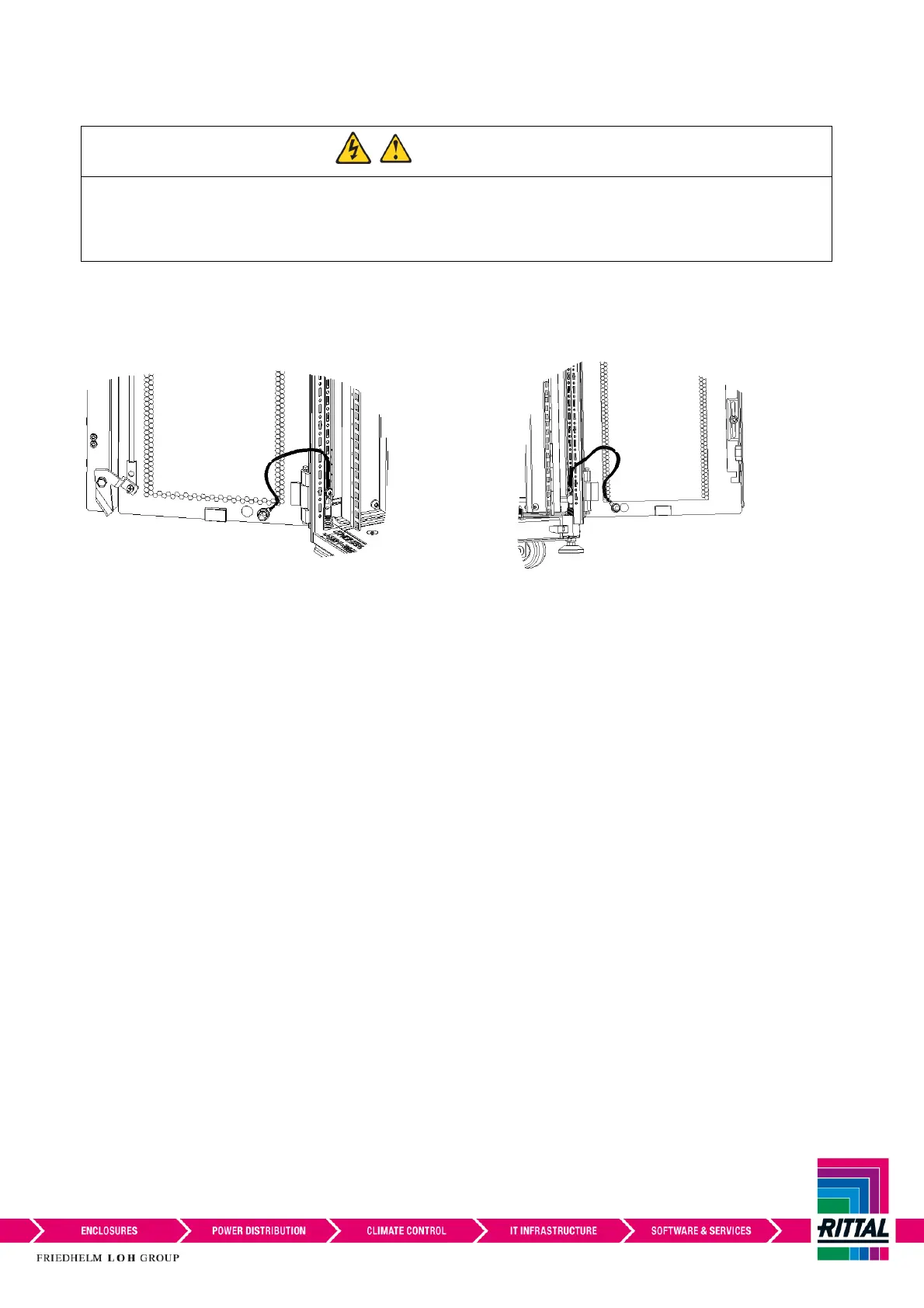

Fit grounding cable (M6 ring spade side to rack) to 2
nd
hole up from bottom system chassis on the rear of
the rack on both sides. Torque 6 – 9 Nm.
Order of fitment through M6 ring spade:
1. 1xSerrated Contact Washer-203510
2. 1xGrounding Wire-331085
3. 1xPlain Washer-200004
4. 1xScrew 5.5x10 self tapping blue-405643
Connect grounding cable to door by pushing spade onto the door receptacle.
Please note images are for visual representation only and may differ from actual rack but process remains
the same.
